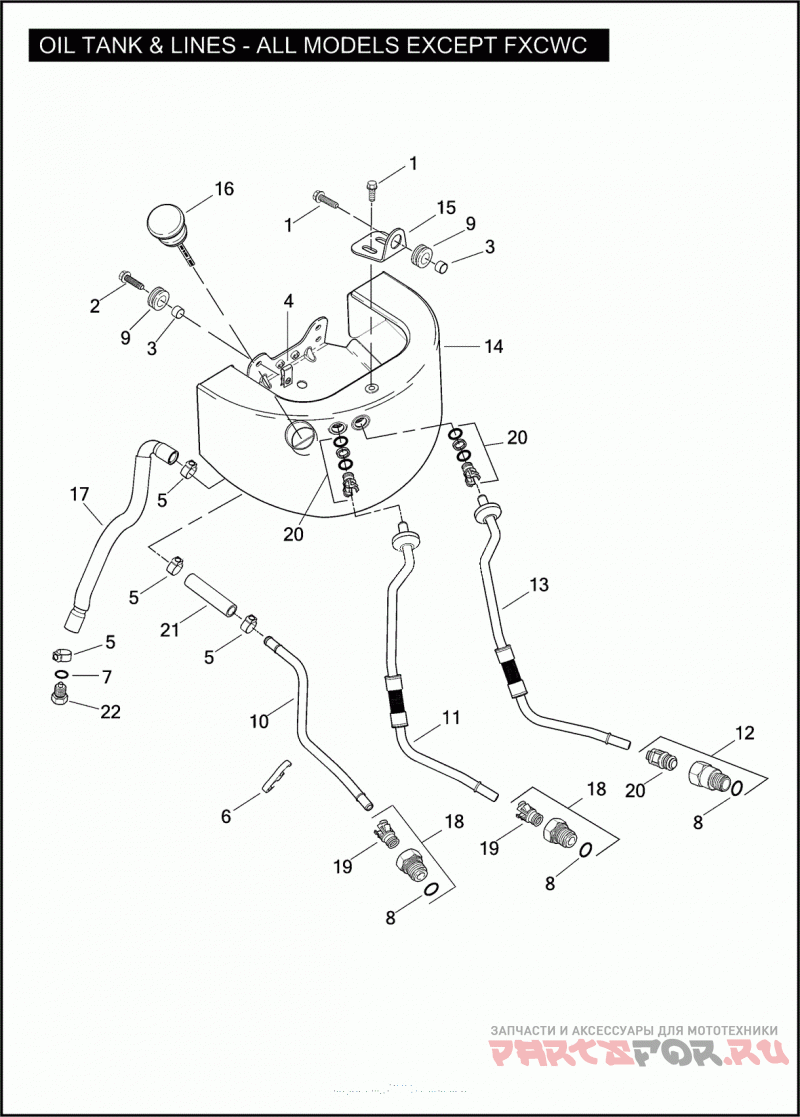

OIL TANK & LINES - ALL MODELS EXCEPT FXCWC

Harley Davidson FLSTF 1BX5 FAT BOY (2011)

Harley Davidson
#oem кодцена
1
4216
SCREW 5/16-18 X 7/8 HEX FLANGE HD. (GRADE 5)
2
4217
SCREW 5/16-18 X 1.0 HEX FLANGE HD. (GRADE 5)
3
5775
WASHER 11/32 X 1/2 X 31/64
4
8144
CLIP NUT
5
10208
Зажим
6
10216
CLIP OIL LINES
7
11105
Уплотнительное кольцо
8
11326
Уплотнительное кольцо
9
11447
Уплотнитель резиновый
10
33525-07
OIL LINE FEED
11
33531-07
OIL LINE RETURN
12
45468-00
CONNECTOR ASSEMBLY VENT, W/ 11326, & 63783-00
13
45806-07
OIL LINE VENT
14
62498-00A
OIL TANK (CHROME)
15
62769-00A
BRACKET OIL TANK TOP
16
62845-00A
FILLER CAP W/ DIPSTICK
17
63553-00B
HOSE OIL TANK DRAIN
18
63601-00
CONNECTOR ASSEMBLY OIL LINE, W/ 11326 & 63632-00
19
63632-00
OIL LINE RETAINER ASSEMBLY
20
63783-00
OIL LINE RETAINER ASSEMBLY
21
63611-00
HOSE OIL FEED
22
60328-98B
PLUG ASSEMBLY MAGNETIC DRAIN, W/ 11105
