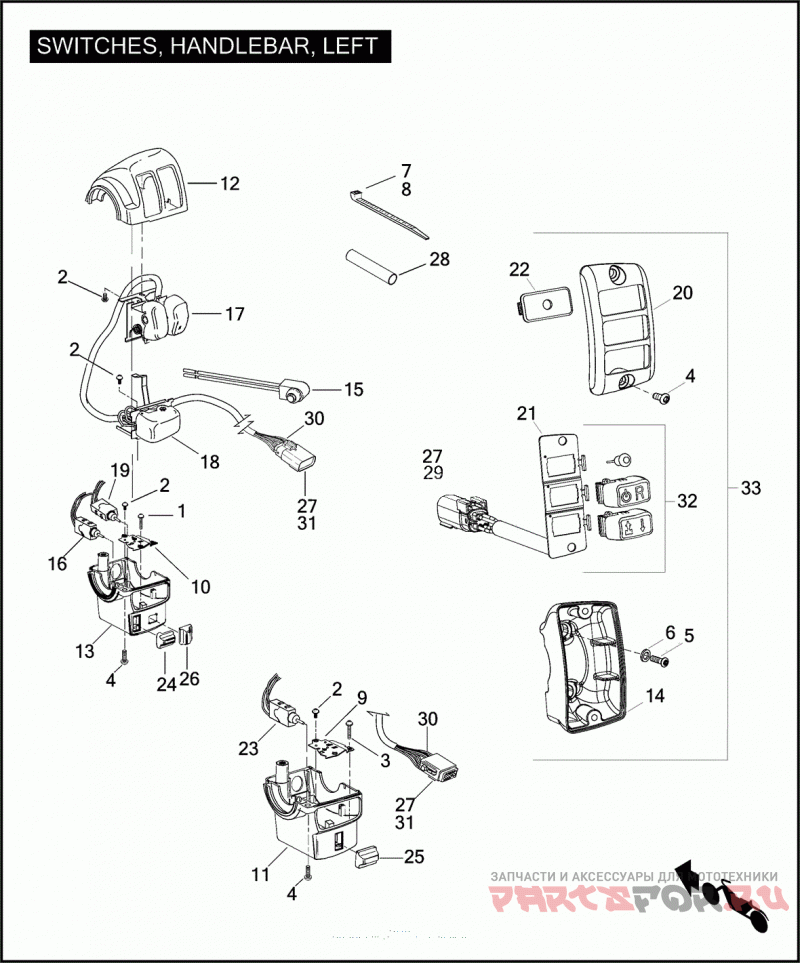

SWITCHES, HANDLEBAR, LEFT

Harley Davidson FLHXXX 1MBM STREET GLIDE TRIKE (2011)

Harley Davidson
#oem кодцена
2
2955
SCREW NO. 6-32 X 1/4 PHILLIPS PAN HD., W/LOCKWASHER
3
2960
SCREW NO. 6-32 X 5/8 PAN HD.
4
3658
SCREW NO. 10-24 X 1/2 TORX HD. (GRADE 5)
5
4015
SCREW 1/4-20 X 7/8 SOCKET BUTTON HD. (GRADE 8)
6
6099
WASHER 1/4 X 7/16 X 1/16
7
10006
CABLE STRAP
8
10181
CABLE STRAP
9
70372-96
BRACKET SWITCH, LOWER LEFT
11
71558-96A
HOUSING LOWER LEFT
12
71567-96
HOUSING UPPER LEFT
14
71603-02B
HOUSING LEFT HAND, REVERSE SWITCH (BLACK)
15
71620-08
SWITCH KIT CLUTCH, W/ 10181 & 72266-94
17
71682-06A
SWITCH KIT DIMMER/HORN, W/ 10181 & 72266-94
18
71685-06A
SWITCH KIT LEFT TURN SIGNAL, W/ 10181
20
71711-02
HOUSING RIGHT HAND, TOP (BLACK)
21
71714-02
BRACKET SWITCH SUPPORT
22
71817-07
PLUG W/ HOLE, SWITCH
23
71810-08
SWITCH KIT AUDIO CONTROL +/-, W/ 10181 & 72266-94
25
71821-98
KNOB AUDIO CONTROL +/-
27
72169-07
TERMINAL PIN, 16-20 AWG
28
72266-94
HEAT SHRINK TUBE DUAL WALL, .3 IN. X 2 IN.
29
72415-07GY
HOUSING 4-WAY PIN (GRAY)
30
72473-07
SEAL PIN
31
72492-07GY
HOUSING PIN, 16-WAY (GRAY)
32
83338-09A
KIT - HAND SWITCH ASSEMBLY REVERSE, W/ 10006, 71714-02, 71817-07 & 72169-07
33
83883-09A
HAND SWITCH ASSEMBLY REVERSE W/ 7, 14, 20, 21, 22, 27, 29 & 32
