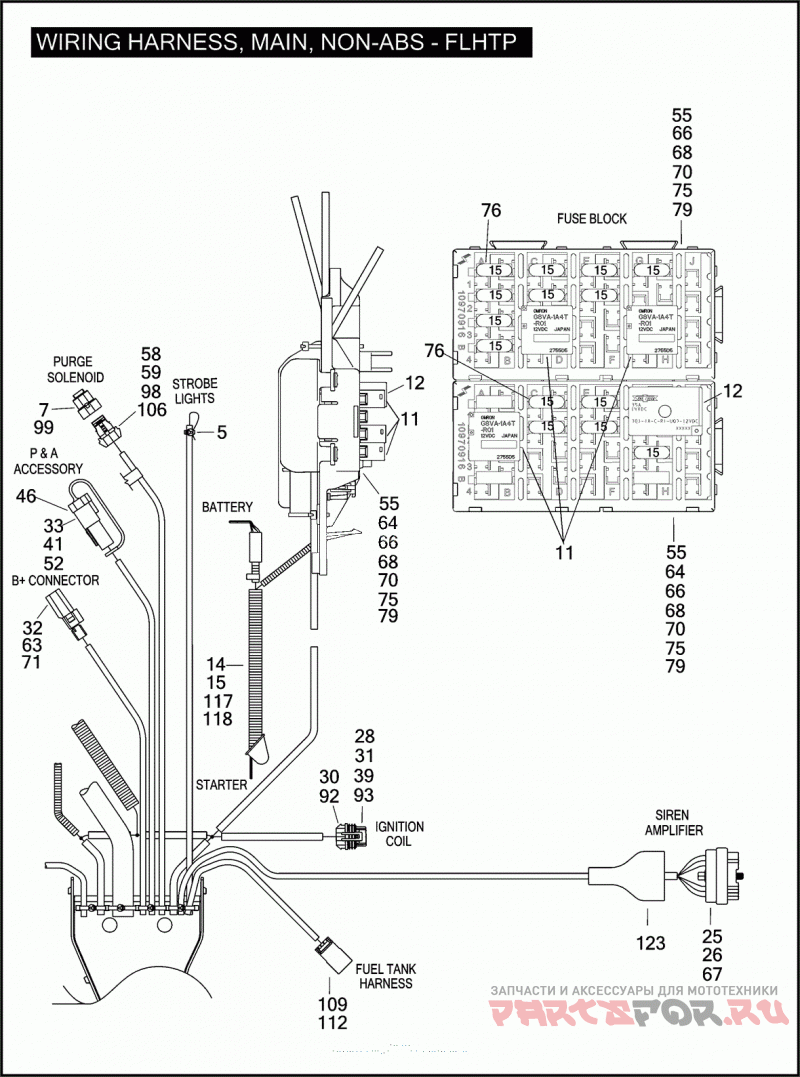

WIRING HARNESS, MAIN, NON-ABS - FLHTP (3 OF 5)

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2011)

Harley Davidson
#oem кодцена
70998-11
MAIN WIRING HARNESS - NON-ABS
57
72207-94
TERMINAL FEMALE, 14 AWG
58
72213-94
TERMINAL SOCKET, FEMALE, 16-20 AWG
59
72214-94
CABLE SEAL
60
72249-94
SHRINK TUBE .415 X 1 (BLACK)
61
72251-07
LOCK SECONDARY, 2-WAY (YELLOW)
62
72252-01
TERMINAL 10 AWG
63
72260-04
HOUSING FEMALE (GRAY)
64
72265-04
SECONDARY LOCK BUSSED FUSE BLOCK
65
72272-07
TERMINAL SOCKET, 14-16 AWG
66
72279-04
TERMINAL FEMALE, 14-16 AWG
67
72281-93
SOCKET HOUSING 18-WAY
68
72282-09
SECONDARY LOCK BUSSED FUSE BLOCK, 2-ROW
69
72283-09
TERMINAL FEMALE, 14-16 AWG, 90 DEGREE
70
72286-04
TERMINAL BUSS, FEMALE, 12-14 AWG
71
72289-04
TERMINAL FEMALE, 10-12 AWG
72
72290-94
TERMINAL 1/4 INCH INSULATED
73
72291-94
TERMINAL 14-16 AWG
74
72295-94
CONNECTOR STARTER HOUSING
75
72309-04
TERMINAL 16-18 AWG
75
72314-01
MAXI-FUSE 40 AMP (NOT ILLUSTRATED) NOTE: FUSE IS SOLD SEPERATELY AND IS NOT PART OF MAIN HARNESS
76
72330-95
FUSE 15 AMP (BLUE)
77
72343-10
PIN TERMINAL 16-20 AWG (GOLD)
78
72355-97
TERMINAL FEMALE, 12 AWG
79
72359-05
TERMINAL FEMALE, 10-12 AWG
80
72402-07
SOCKET HOUSING 2-WAY
81
72405-98BK
WIRE ASSEMBLY PUSH-ON, RIGHT ANGLE MOLDED, 65-1/2 IN. LENGTH
82
72406-07A
SOCKET HOUSING 4-WAY
