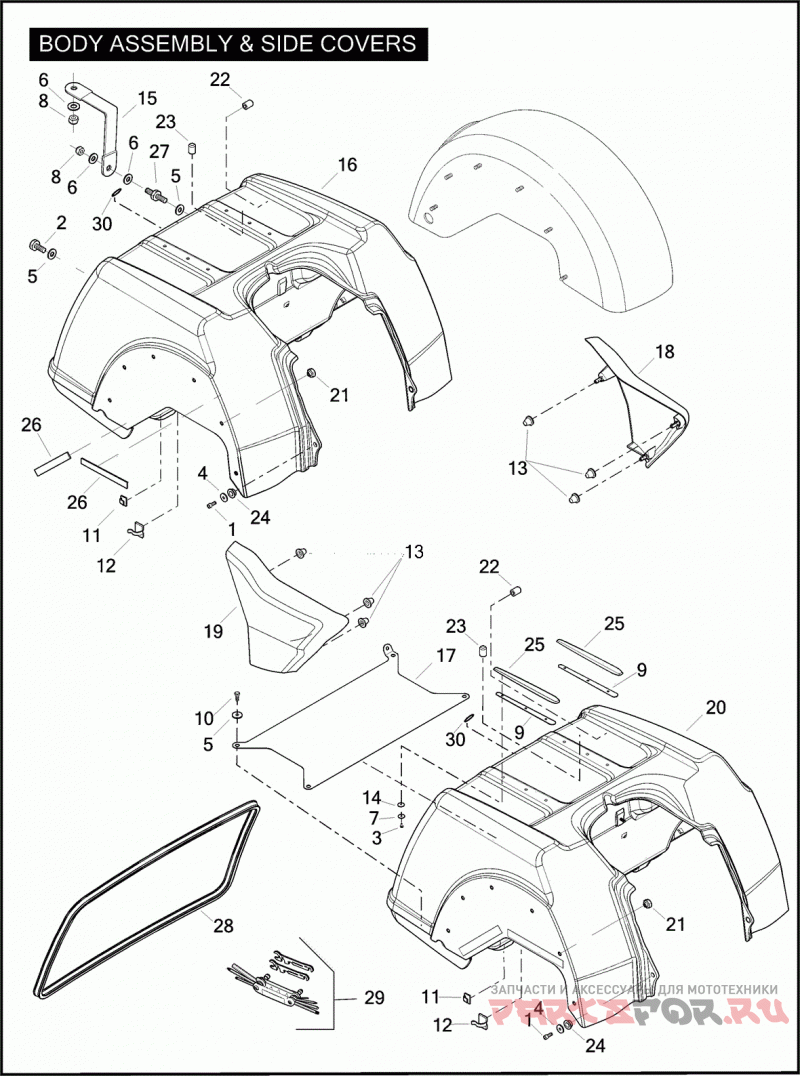

BODY ASSEMBLY & SIDE COVERS

Harley Davidson FLHTCUTG 1MAM TRI GLIDE ULTRA CLASSIC (2011)

Harley Davidson
#oem кодцена
1
2708A
Деталь SCREW 5/16-18 X 1 SOCKET HD.
2
3445
Деталь BOLT 5/16-18 X 9/16 HEX HD., W/LOCKPATCH (GRADE 5)
4
6116
Деталь WASHER 5/16 X 16/16 X 1/8
5
6645
Деталь WASHER 11/32 X 1-1/32 X 1/8
6
6702
Деталь WASHER 5/16 X 11/16 X 1/16
8
7739
Деталь LOCKNUT 5/16-18 X 11/32 X 1/2
10
8369
Деталь BOLT 5/16-18 X 1-1/2 HEX HD., W/LOCKPATCH (GRADE 5)
11
10102
Деталь CLIP SMALL
12
10103
Деталь CLIP LARGE
13
11650
Деталь GROMMET SIDE COVER, LEFT / RIGHT
15
70186-82
Деталь GROUND STRAP
16
83318-11DCE
Деталь MIDSECTION ASSEMBLY W/ 11, 12, 21, 22, 23, 24, 26, 28 & 30 (MERLOT SUNGLO)
16
83318-11DGR
Деталь MIDSECTION ASSEMBLY W/ 11, 12, 21, 22, 23, 24, 26, 28 & 30 (COOL BLUE PEARL)
16
83000051DH
Деталь MIDSECTION ASSEMBLY W/ 11, 12, 21, 22, 23, 24, 26, 28 & 30 (VIVID BLACK)
18
83364-11DCE
Деталь SIDE COVER ASSEMBLY LEFT HAND (MERLOT SUNGLO)
18
83364-11DGR
Деталь SIDE COVER ASSEMBLY LEFT HAND (COOL BLUE PEARL)
18
83364-11DH
Деталь SIDE COVER ASSEMBLY LEFT HAND (VIVID BLACK)
19
83365-11DCE
Деталь SIDE COVER ASSEMBLY RIGHT HAND, W/ 83563-10 (MERLOT SUNGLO)
19
83365-11DGR
Деталь SIDE COVER ASSEMBLY RIGHT HAND, W/ 83563-10 (COOL BLUE PEARL)
19
83365-11DH
Деталь SIDE COVER ASSEMBLY RIGHT HAND, W/ 83563-10 (VIVID BLACK)
19
83563-10
Деталь LABEL TIRE WARNING (NOT SHOWN)
21
83777-11
Деталь INSERT PRESS-IN, 5/16-18
22
83778-11
Деталь INSERT, TOP HAT PRESS-IN, 1/4-20
23
83782-11
Деталь INSERT PRESS-IN, 1/4-20
24
83798-11
Деталь INSERT, TOP HAT SPACER
26
83811-09
Деталь FOAM TAPE
27
83822-09
Шпилька
28
83991-11
Деталь SEAL TRUNK DOOR (CUT TO FIT)
29
94435-10
Комплект инструментов
30
12300002
Деталь SEALING WASHER TRUNK LOCK
