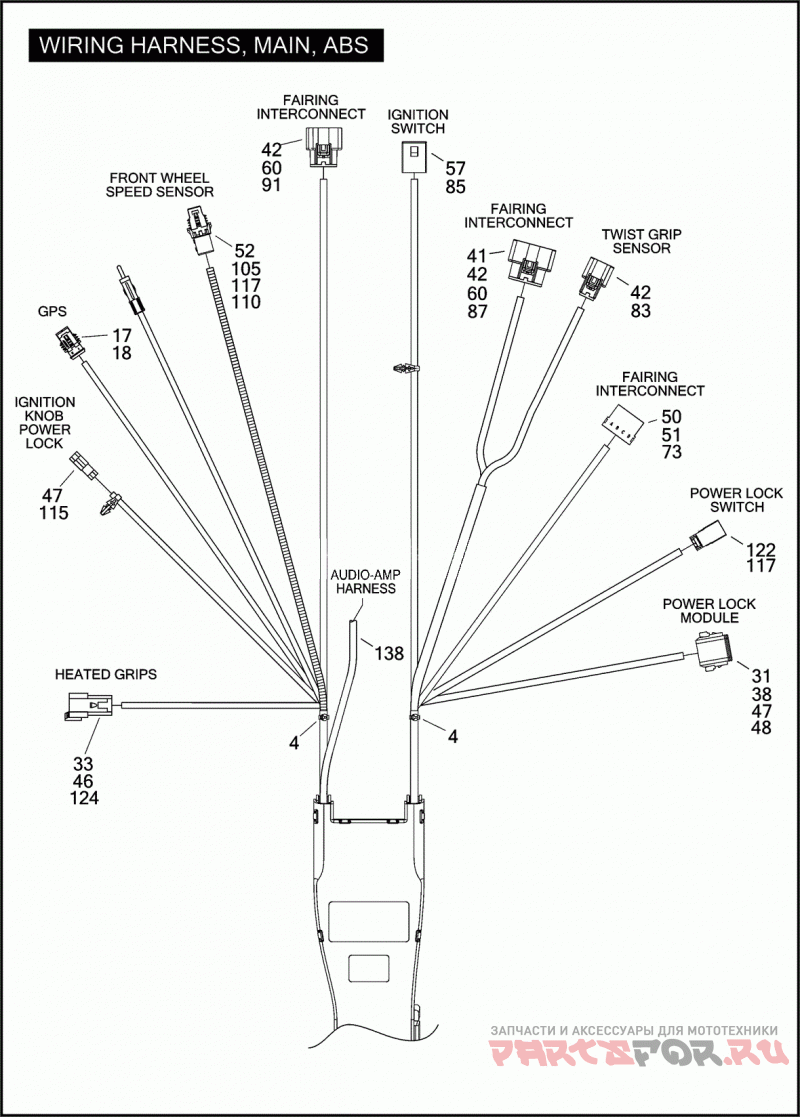

WIRING HARNESS, MAIN, ABS

Harley Davidson FLHTCUSE6 1PR8 CVO ULTRA CLASSIC (2011)

WIRING HARNESS, MAIN, ABS

#

oem код

название

цена

MAIN WIRING HARNESS - ABS

MAIN WIRING HARNESS - ABS

1

TERMINAL 1/4 IN. RING, 12 AWG

TERMINAL 1/4 IN. RING, 12 AWG

2

TERMINAL 1/4 IN. RING, 10-12 AWG

TERMINAL 1/4 IN. RING, 10-12 AWG

3

CABLE STRAP

CABLE STRAP

4

CABLE STRAP

CABLE STRAP

5

CLIP CONNECTOR

CLIP CONNECTOR

6

CABLE STRAP TREE MOUNT

CABLE STRAP TREE MOUNT

7

FASTENER PUSH-IN (BLACK)

FASTENER PUSH-IN (BLACK)

7

LABEL BATTERY WARNING (NOT SHOWN)

LABEL BATTERY WARNING (NOT SHOWN)

8

RELAY

RELAY

9

RELAY HIGH CURRENT

RELAY HIGH CURRENT

10

FUSE 2 AMP (GRAY)

FUSE 2 AMP (GRAY)

11

CADDY FUSE BLOCK

CADDY FUSE BLOCK

12

CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04

CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04

13

BOOT BATTERY POSITIVE

BOOT BATTERY POSITIVE

14

BOOT ENGINE TEMPERATURE SENSOR

BOOT ENGINE TEMPERATURE SENSOR

15

TRAY WIRE TROUGH

TRAY WIRE TROUGH

16

COVER WIRE TROUGH, W/ 15368-01A

COVER WIRE TROUGH, W/ 15368-01A

17

SOCKET TERMINAL 16-20 AWG

SOCKET TERMINAL 16-20 AWG

18

WIRE SEAL 16-20 AWG (YELLOW)

WIRE SEAL 16-20 AWG (YELLOW)

19

HOUSING 2-WAY

HOUSING 2-WAY
