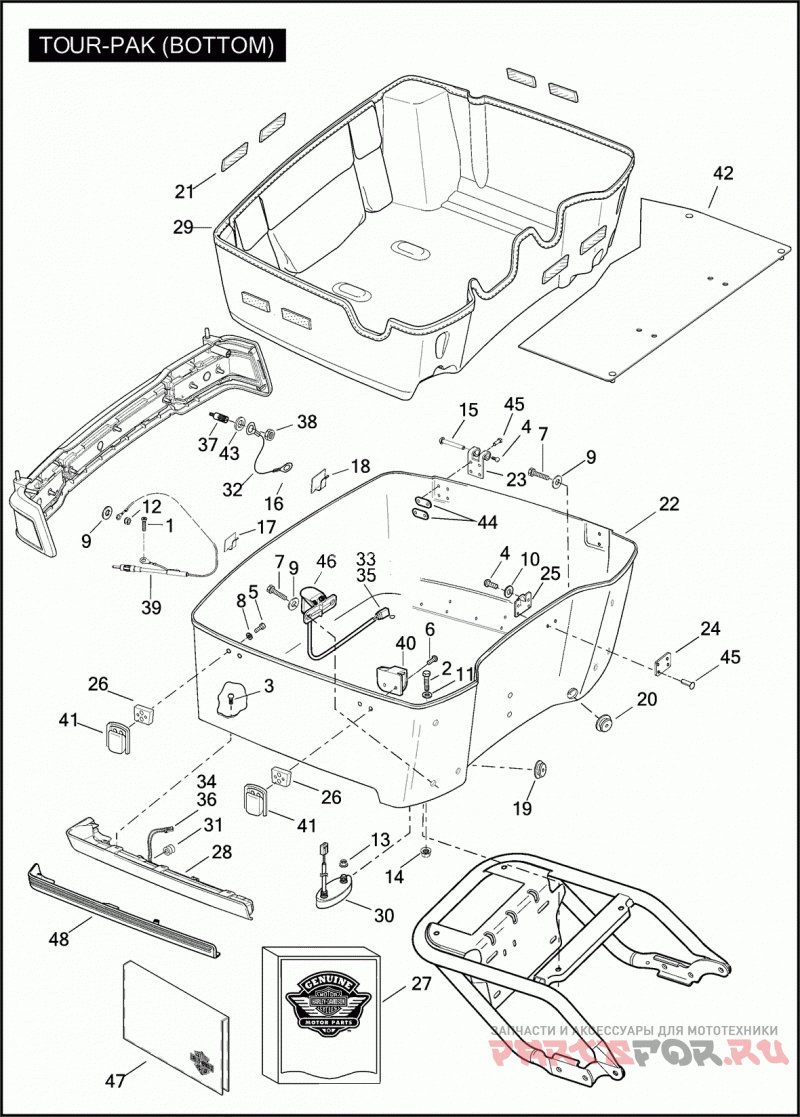

TOUR-PAK (BOTTOM)

Harley Davidson FLHTCUSE6 1PR8 CVO ULTRA CLASSIC (2011)

Harley Davidson
#oem кодцена
1
932
SCREW 1/4-20 X 1/2 TRUSS HD. (CHROME)
2
2551W
BOLT 1/4-20 X 1 HEX HD. (GRADE 5)
3
2968
SCREW NO. 8-32 X 3/4 TORX PAN HD.
4
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
5
3597
SCREW NO. 6-32 X 9/16 TORX PAN HD., THREAD-CUTTING
6
3598
SCREW NO. 6-32 X 3/4 TORX PAN HD., THREAD-CUTTING
7
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
8
6029
WASHER 5/32 X 3/8 X 1/32
9
6036
WASHER 17/64 X 1 X 1/16
10
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
11
7036
WASHER 1/4 X 31/64 X 1/16
12
7492
NUT W/ LOCKWASHER
13
7676
NUT 1/4-28 X 7/32 X 7/16 (GRADE 2)
14
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
15
8500A
HINGE PIN KIT W/ 3595
16
9809
TRIM RING,PRE-INSULT
17
10102
CLIP ADHESIVE BACKED
18
10103
CLIP ADHESIVE BACKED
19
11486
Уплотнитель резиновый
20
11507
GROMMET SPLIT
21
53314-06
KIT, VELCRO LINER
22
53145-09
BOTTOM (PRIME)
22
53000060CJL
BOTTOM ASSEMBLY (TWILIGHT BLUE)
22
53000060DFP
BOTTOM ASSEMBLY (BLACK EMBER)
23
53447-87
HINGE LOWER
24
53478-80
BACKING PLATE BRACE
25
53563-82
BRACKET CABLE MOUNTING
26
53615-85A
Проставка
27
53629-10
LINER REMOVABLE
28
53788-06
LIGHT RIGHT-BOTTOM, TOUR-PAK, SIDEMARKER, W/ 73152-96BK & 73191-96 (DOMESTIC)
28
53789-06
LIGHT LEFT-BOTTOM, TOUR-PAK, SIDEMARKER, W/ 73152-96BK & 73191-96 (DOMESTIC)
29
54111-10
LINER MOLDED, W/ POUCH
30
54333-04A
LIGHT ASSEMBLY SADDLEBAG, W/ NUTS
31
57978-00
GROMMET (DOMESTIC)
32
70465-86A
GROUND CABLE W/ 9864
33
73102-96BK
PIN HOUSING 2-PLACE
34
73152-96BK
SOCKET HOUSING 2-WAY (BLACK) (DOMESTIC)
35
73190-96
TERMINAL PIN, 16-20 AWG
36
73191-96
SOCKET TERMINAL (DOMESTIC)
37
76258-86
PLUG ASSEMBLY
38
76259-86
NUT HEX JAM
39
76294-09
CABLE EXTENSION CB ANTENNA (DOMESTIC & HDI)
40
79182-08A
CATCH LOWER
41
90649-07
BODY LATCH
42
90755-09
PLATE TOUR-PAK REINFORCING
43
90763-79
WASHER, REINFORCEMENT ANTENNA, LEFT HAND
44
90964-63
BACKING PLATE
45
90965-63
заклёпка
46
91823-10
POWER OUTLET TOUR-PAK, W/ 73102-96BK & 73190-96
47
99461-89
COVER OWNER MANUAL
48
53734-06
TRIM LEFT-BOTTOM, TOUR-PAK (CHROME) (HDI, JAPAN)
48
53735-06
TRIM RIGHT-BOTTOM, TOUR-PAK (CHROME) (HDI, JAPAN)
