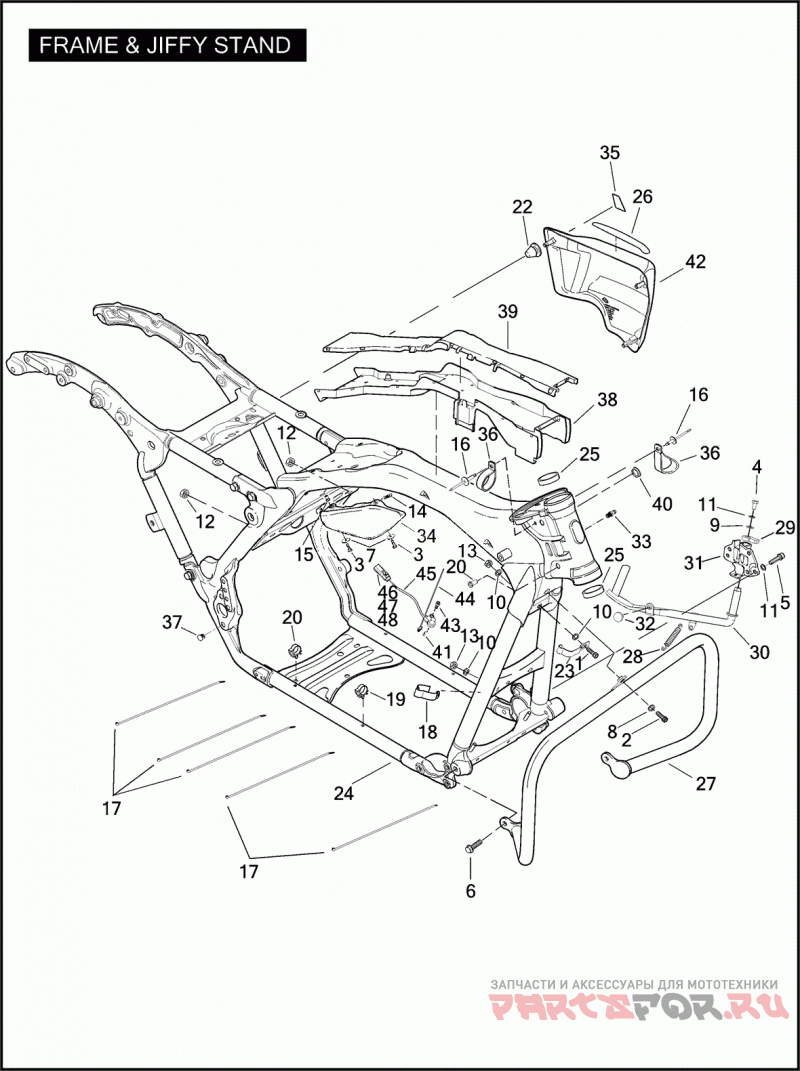

FRAME & JIFFY STAND

Harley Davidson FLHTCUSE6 1PR8 CVO ULTRA CLASSIC (2011)

Harley Davidson
#oem кодцена
1
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
4924
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
7
6036
WASHER 17/64 X 1 X 1/16
8
6116
WASHER 5/16 X 16/16 X 1/8
9
6702
WASHER 5/16 X 11/16 X 1/16
10
6703
WASHER 1/4 X 5/8 X 1/16
11
7041
LOCKWASHER 5/16
12
7495
NUT M6 FLANGE
13
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
14
8108
SPEEDNUT 1/4-20
15
8194
NUT SPECIAL
16
8483A
RIVET BLIND
17
10039
CABLE STRAP
18
10264
CLIP CLUTCH CABLE
19
10336
CLIP CONDUIT, ROSEBUD MOUNT
20
10394
CLIP CONDUIT, ROSEBUD MOUNT
21
11663
RIVNUT FLATHEAD
22
11650
GROMMET SIDE COVER
23
38969-10
RETAINER CLUTCH LINE, UPPER
24
47900-11BHP
FRAME MAIN, W/ 48315-60 & 50972-75
25
48315-60
BEARING CUP
26
48419-04
WEAR PAD SIDE COVER, RIGHT (CLEAR)
26
48420-04
WEAR PAD SIDE COVER, LEFT (CLEAR)
27
49184-09A
ENGINE GUARD W/ 2708A, 6116 & 14148-86
28
49725-07A
SPRING JIFFY STAND
29
50015-74A
LEG STOP
30
50075-07A
LEG JIFFY STAND
31
50096-09
BRACKET JIFFY STAND LEG
32
50245-07
BUMPER JIFFY STAND LEG
33
83459-09
FITTING lubrication
34
58167-09A
DEFLECTOR AIR (RIGHT)
34
58169-09
DEFLECTOR AIR, LEFT
35
66055-09
WEAR PAD SIDE COVER (CLEAR)
36
69318-02
Зажим
37
68446-00
PLUG (CHROME)
38
70980-09
TRAY WIRE TROUGH (MAIN HARNESS)
39
70981-09
COVER WIRE TROUGH, W/ 15368-01A (MAIN HARNESS)
40
90469-94
Заглушка
41
90520-07
HOLE PLUG JIFFY STAND
42
57200001DJE
SIDE COVER LEFT (BLACK EMBER/RIO RED), W/ 48420-04 & 66055-09
42
57200001DKS
SIDE COVER LEFT (TWILIGHT BLUE/CANDY COBALT), W/ 48420-04 & 66055-09
42
66250-09
SIDE COVER LEFT (UNPAINTED)
42
57200002DJE
SIDE COVER RIGHT (BLACK EMBER/RIO RED), W/ 48419-04 & 66055-09
42
57200002DKS
SIDE COVER RIGHT (TWILIGHT BLUE/CANDY COBALT), W/ 48419-04 & 66055-09
42
66048-09A
SIDE COVER RIGHT (UNPAINTED)
43
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
44
10177
CABLE STRAP TREE MOUNT, JIFFY STAND (ENGLAND, HDI)
45
50126-08A
SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07 (ENGLAND, HDI)
46
72169-07
TERMINAL PIN, 16-20 AWG (ENGLAND, HDI)
47
72511-07BK
HOUSING PIN, 3-WAY (BLACK) (ENGLAND, HDI)
48
73213-07
RETAINER XMAS TREE CLIP (ENGLAND, HDI)
