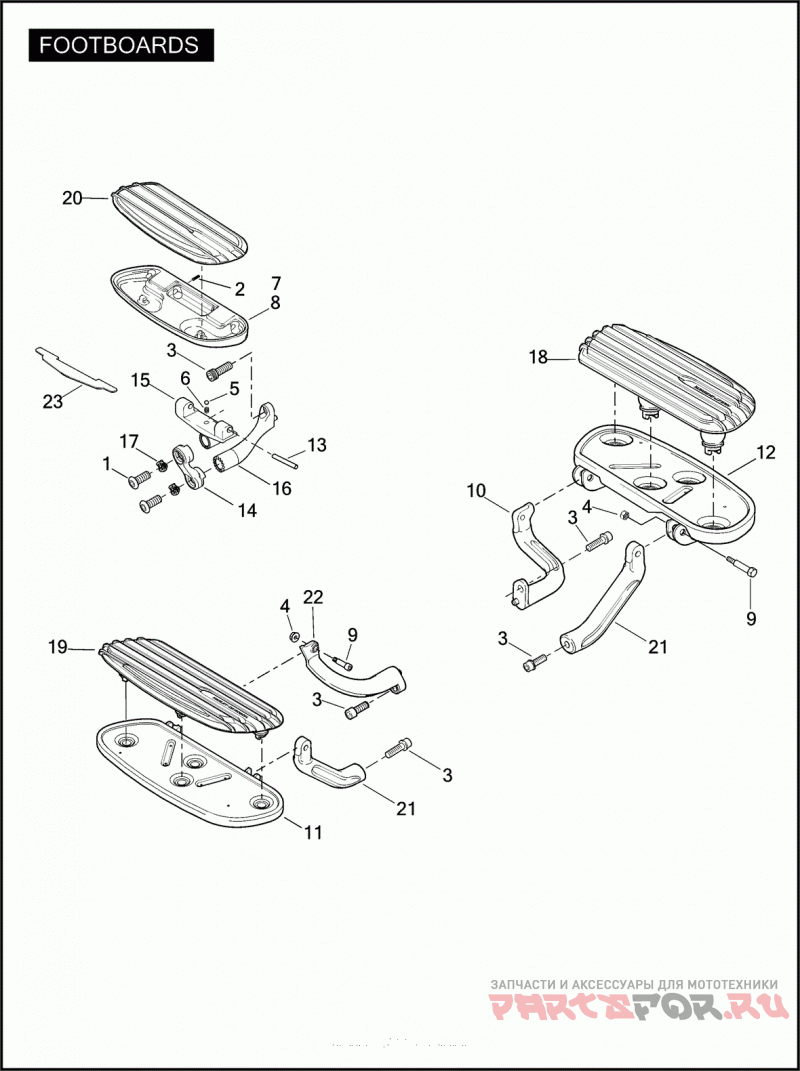

FOOTBOARDS

Harley Davidson FLHTCUSE6 1PR8 CVO ULTRA CLASSIC (2011)

Harley Davidson
#oem кодцена
1
4631
Винт
2
3341
SET SCREW NO. 10-24 X 1/2 HEX HEAD (STAINLESS)
3
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
4
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
5
8861
Шарик
6
51501-07
Пружина
7
50700-04
FOOTBOARD LEFT-HAND, PASSENGER (NOT ILLUSTRATED)
8
50701-04
FOOTBOARD RIGHT-HAND, PASSENGER
9
50635-82A
BOLT FOOTBOARD HINGE
10
50673-09
BRACKET SUPPORT FOOTBOARD, REAR LEFT
11
50683-04
BOTTOM ASSEMBLY RIGHT, W/ HINGE
12
50688-04
BOTTOM ASSEMBLY LEFT, W/ HINGE
13
50933-86A
PIVOT PIN
14
50998-07
ARM ROTATING, RIGHT
14
51006-07
ARM ROTATING, LEFT
15
51007-07
SUPPORT FOOTBOARD
16
51008-07
ARM MAIN MOUNTING ASSEMBLY
17
51023-07
WAVE SPRING
18
51498-09A
INSERT ASSEMBLY LEFT, RIDER
19
51499-09A
INSERT ASSEMBLY RIGHT, RIDER
20
51502-09
FOOTBOARD INSERT PASSENGER, LEFT (NOT ILLUSTRATED)
20
51510-09
FOOTBOARD INSERT PASSENGER, RIGHT
21
51697-09
MOUNTING BRACKET FRONT FOOTBOARD (CHROME)
22
54151-10
BRACKET SUPPORT FOOTBOARD, REAR RIGHT (CHROME)
23
44430-04
PAD RUBBER (HDI)
