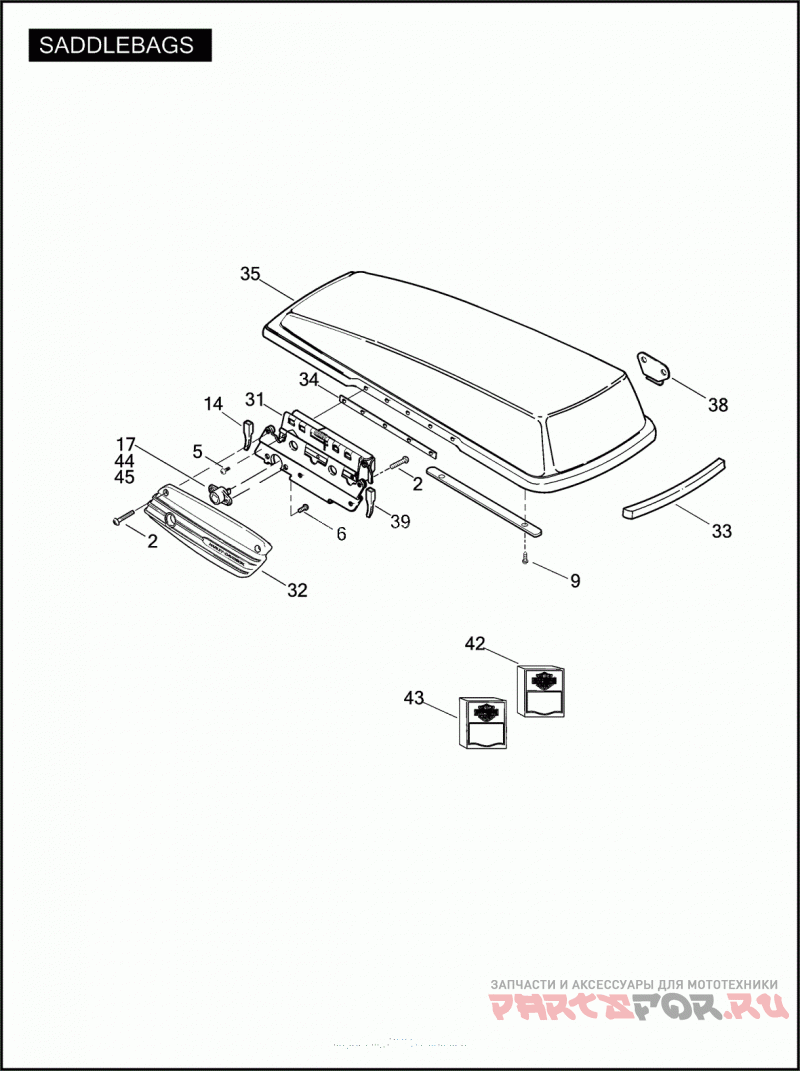

Кофры боковые

Harley Davidson FLHTCUSE6 1PR8 CVO ULTRA CLASSIC (2011)

Harley Davidson
#oem кодцена
1
2478
SCREW NO. 10-24 X 1/2 TORX BUTTON HD.
2
2524B
SCREW NO. 8-32 X 5/16 TORX BUTTON HD., SELF-TAPPING
3
3592A
SCREW NO. 8-32 X 1/2 TORX TRUSS HD. W/ DOGPOINT LEAD (STAINLESS)
4
3593
SCREW NO. 8-32 X 5/16 TORX TRUSS HD.
5
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
6
68042-99
SCREW NO. 8-32 X 3/8 TORX HD.
7
4616
Винт
8
4630
Винт
9
5233
SCREW #10-16 X 1/2 HI-LO, TORX HD T-25
10
6229W
WASHER 5/16 X 1-1/16 X 3/64
11
7624
LOCKNUT NO. 10-24 X 1/4 X 3/8
11
10102
CLIP ADHESIVE BACKED (NOT ILLUSTRATED)
12
10302
E-CLIP
13
11468
Уплотнитель резиновый
14
53482-93
RUB BAR LEFT, REAR (PLASTIC)
14
53483-93
RUB BAR RIGHT, REAR (PLASTIC)
15
53567-93
CHECK STRAP
16
53597-07
ACTUATOR POWER LOCK
17
53986-07
LOCK (SPECIFY KEY CODE)
18
74112-98BK
HOUSING 2-WAY SOCKET
19
74152-98
SECONDARY LOCK 2-WAY SOCKET
20
74191-98
SOCKET TERMINAL
21
79113-07
CABLE ASSEMBLY
22
79114-07
Уплотнитель резиновый
23
79145-07
BASE POWER LOCK SYSTEM, LEFT
23
79158-07
BASE POWER LOCK SYSTEM, RIGHT
24
79146-07
LID POWER LOCK SYSTEM, LEFT
24
79159-07
LID POWER LOCK SYSTEM, RIGHT
25
79156-07
POWER LOCK ASSEMBLY RIGHT
25
79163-07
POWER LOCK ASSEMBLY LEFT
26
79157-07
BOX & ACTUATOR ASSEMBLY RIGHT
26
79164-07
BOX & ACTUATOR ASSEMBLY LEFT
27
79165-07
ACTUATOR ASSEMBLY CABLE
28
88283-07
POWER LOCK HARDWARE W/ 4616, 10102, 10302, 74112-98BK, 74152-98, SPRINGS, CAMS & SPACERS
29
90115-04
PROTECTOR SADDLEBAG
30
90400-00A
BAIL HEAD STUD (BAIL MUST BE REMOVED FOR HDE AND HDI)
