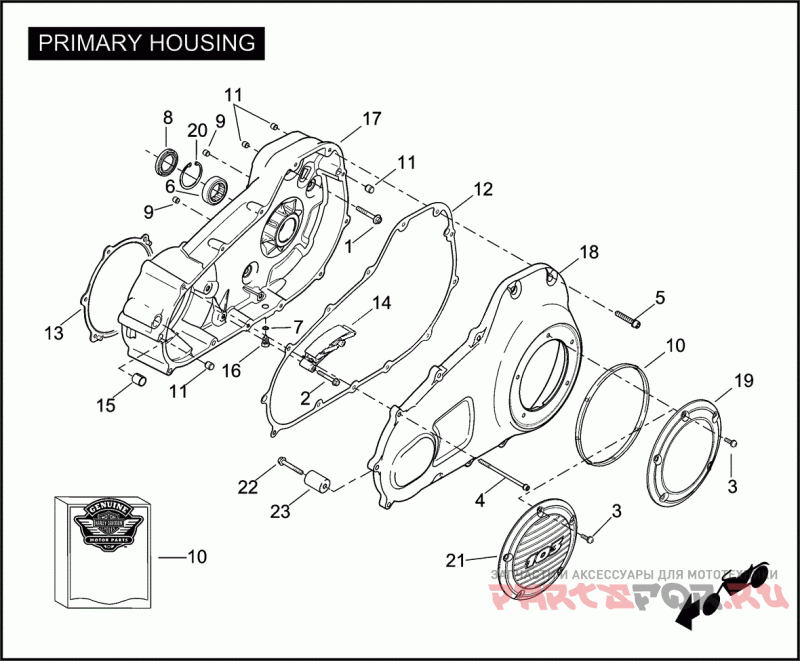

PRIMARY HOUSING

Harley Davidson FLHR 96 FB4 ROAD KING (2011)

Harley Davidson
#oem кодцена
1
786A
Деталь BOLT 5/16-18 X 2-1/4 hex hd. (Grade 5) | ALL
2
791A
Деталь SCREW 3/8-18 X 2-1/4 hex flange hd. (Grade 5) | ALL
3
1062
Деталь SCREW 1/4-20 X 5/8 TORX hd. (Grade 8) | ALL
4
1780
Деталь SCREW | ALL
5
4813A
Деталь SCREW 1/4-20 X 1-3/8 knurled hd., w/lockpatch | ALL
6
9231
Деталь BEARING | ALL
7
11105
Деталь O-RING | ALL
8
12052A
Деталь SEAL | ALL
9
16583-00A
Деталь BUSHING dowel | ALL
10
17369-06
Деталь GASKET SERVICE KIT (1K, 5K, 10K) w/ 11105 & clutch cover seal | ALL
11
24754-75A
Деталь DOWEL BUSHING | ALL
12
34901-07
Деталь GASKET primary cover | ALL
13
34934-06
Деталь GASKET primary housing to case | ALL
14
39929-06B
Деталь CHAIN TENSIONER ASSEMBLY | ALL
15
42642-00A
Деталь BUSHING | ALL
16
60328-98B
Деталь PLUG magnetic drain, w/ 11105 | ALL
17
60432-07A
Деталь INNER PRIMARY HOUSING w/ 9231, 12052A, 16583-00A, 42642-00A, 60328-98B & 60678-85 (black) | ALL
18
60553-07A
Деталь COVER PRIMARY (CHROME) | ALL
19
60766-06
Деталь COVER clutch (chrome) | FB4/FC4/FF4/FR4/KB4/KH4
20
60678-85
Деталь RETAINING RING | ALL
22
791A
Деталь SCREW 3/8-18 X 2-1/4 hex flange hd. (Grade 5) | FB4/FCM/FF4/FR4/KB4/KEM/KGM/KH4
23
60818-07
Деталь SLEEVE dampener (Japan only) | FB4/FCM/FF4/FR4/KB4/KEM/KGM/KH4
