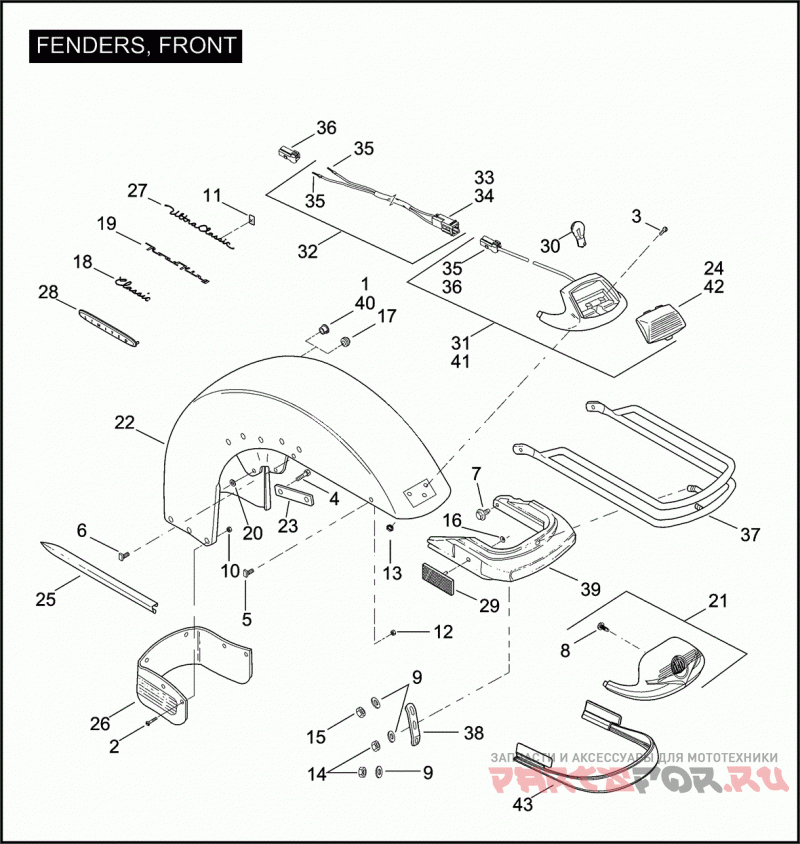

FENDERS, FRONT

Harley Davidson FLHR 96 FB4 ROAD KING (2011)

Harley Davidson
#oem кодцена
2
2531
SCREW No. 4-40 X 5/16 Pozidriv pan hd. (Grade 2) | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
3
2604
SCREW No. 10-32 X 1/2 Pozidriv pan hd. (Grade 2) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
4
3462
BOLT 5/16-18 X 1-1/4 hex hd. (Grade 8) | ALL
5
3560WA
BOLT No. 10-24 X 3/8 | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
6
3561WC
BOLT No. 10-24 X 3/8 | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
10
7600
NUT No. 4-40 keps | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
11
7613A
PUSH NUT | FB4/FBM/FC4/FCM/FR4/FRM
12
7624
LOCKNUT No. 10-24 X 1/4 X 3/8 | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
13
7629
NUT No. 10-32 X 3/8 keps | FB4/FBM/FC4/FCM/FF4/FFM/KEM
17
11437
GROMMET wiring harness (Domestic) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
19
14422-94A
NAMEPLATE Road King | FB4/FBM/FR4/FRM
20
45279-00
WASHER 11/32 X 5/8 X 1/32 Aluminum | ALL
22
59087-00B
FENDER (prime) | FB4/FBM/FC4/FCM/FR4/FRM/KEM
23
59166-80
LOCKPLATE | ALL
24
59180-80
LENS fender lamp (amber) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
25
59211-74A
TRIM front fender | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
26
59231-86
TRIM SKIRT front fender, lower | FB4/FBM/FC4/FCM/FF4/FFM/FR4/FRM/KEM
30
68193-95
BULB fender tip lamp | FB4/FBM/FC4/FCM/FF4/FFM/KEM
31
68706-00
FENDER LIGHT ASSEMBLY w/ 59180-80, 68193-95, 73152-96BK, & 73191-96 | FB4/FBM/FC4/FCM/FF4/FFM/KEM
32
70196-00
WIRE HARNESS ASSEMBLY jumper, w/ 73102-96BK, 73190-96 & 73191-96 | FB4/FBM/FC4/FCM/FF4/FFM/KEM
33
73102-96BK
PIN HOUSING 2-place | FB4/FBM/FC4/FCM/FF4/FFM/KEM
34
73190-96
TERMINAL pin, 16-20 AWG | FB4/FBM/FC4/FCM/FF4/FFM/KEM
35
73191-96
TERMINAL socket, 16-20 gauge | FB4/FBM/FC4/FCM/FF4/FFM/KEM
36
73152-96BK
SOCKET HOUSING 2-place | FB4/FBM/FC4/FCM/FF4/FFM/KEM
40
755
HOLE PLUG (HDI) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
41
59116-96
FENDER TIP ASSEMBLY w/ 59201-96 (HDI) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
42
59201-96
LENS fender tip (chrome) (HDI) | FB4/FBM/FC4/FCM/FF4/FFM/KEM
