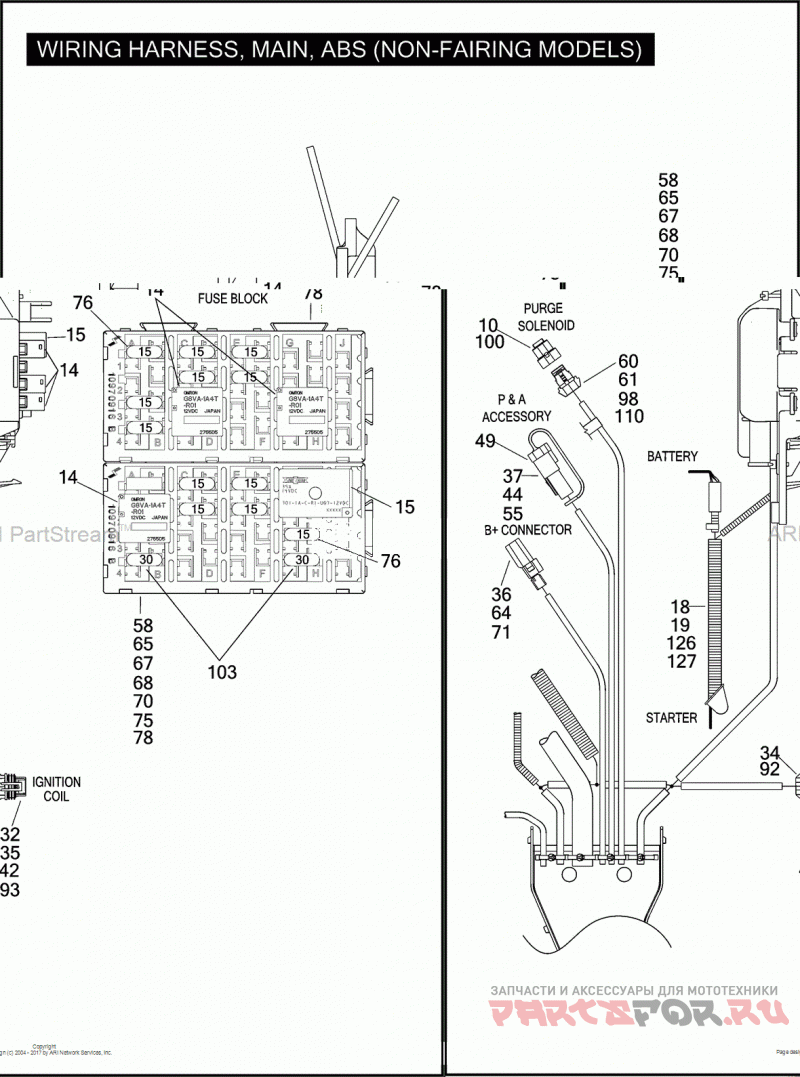

WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (3 OF 5)

Harley Davidson FLHR 103 1FBM ROAD KING (2011)

Harley Davidson
#oem кодцена
70120-10A
MAIN WIRING HARNESS - ABS
54
72179-94
SEAL INTERNAL, 12-CIRCUIT
55
72190-94
TERMINAL PIN, 16-18 AWG
56
72191-94
TERMINAL SOCKET, 16-18 AWG
57
72195-94
SEAL PIN
58
72204-04
FUSE/RELAY BLOCK BUSSED
59
72206-94
CONNECTOR 4-POSITION, FEMALE
60
72213-94
TERMINAL SOCKET, FEMALE, 16-20 AWG
61
72214-94
CABLE SEAL
62
72249-94
HEAT SHRINK TUBE .415 X 1 (BLACK)
63
72251-07
LOCK SECONDARY, 2-WAY (YELLOW)
64
72260-04
HOUSING FEMALE (GRAY)
65
72265-04
SECONDARY LOCK BUSSED FUSE BLOCK
66
72272-07
TERMINAL SOCKET, 14-16 AWG
67
72279-04
TERMINAL FEMALE, 14-16 AWG
68
72282-09
SECONDARY LOCK BUSSED FUSE BLOCK, 2-ROW
69
72283-09
TERMINAL FEMALE, 14-16 AWG, 90 DEGREE
70
72286-04
TERMINAL BUSS, FEMALE, 12-14 AWG
71
72289-04
TERMINAL FEMALE, 10-12 AWG
72
72290-94
TERMINAL 1/4 INCH INSULATED
73
72291-94
TERMINAL 14-16 AWG
74
72295-94
CONNECTOR STARTER HOUSING
75
72309-04
TERMINAL 16-18 AWG
75
72314-01
MAXI-FUSE 40 AMP (NOT ILLUSTRATED) NOTE: FUSE IS SOLD SEPERATELY AND IS NOT PART OF MAIN HARNESS
76
72330-95
FUSE 15 AMP (BLUE)
77
72343-10
PIN TERMINAL 16-20 AWG (GOLD)
78
72359-05
TERMINAL FEMALE, 10-12 AWG
79
72395-97
TERMINAL FEMALE, 10-12 AWG
80
72402-07
SOCKET HOUSING 2-WAY
