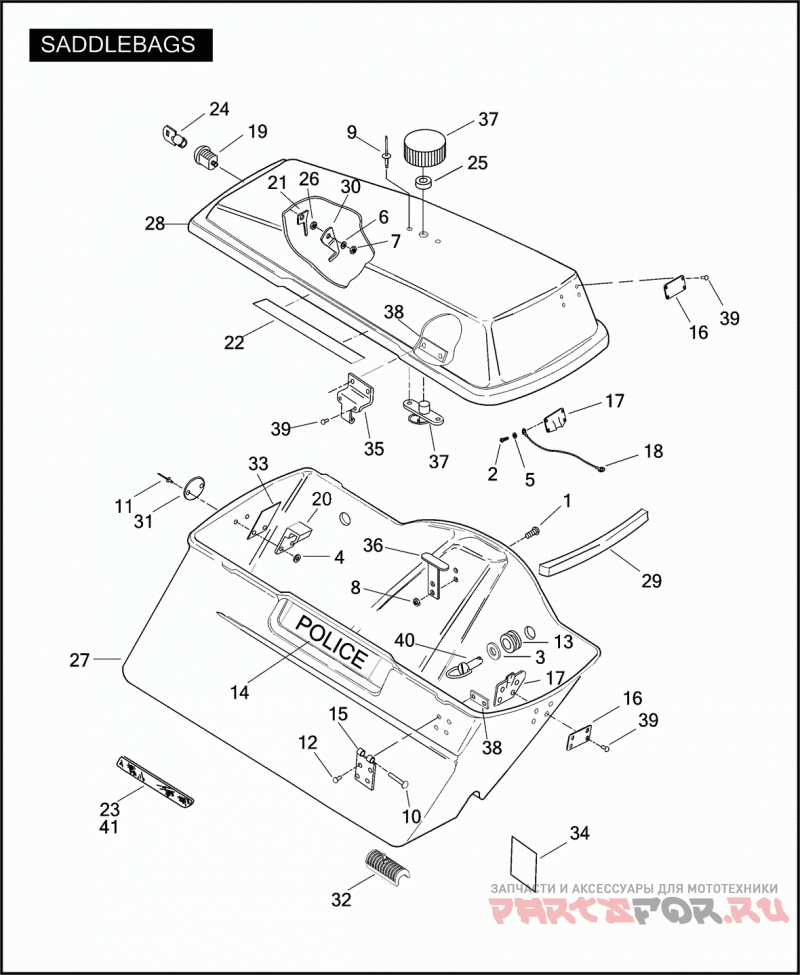

Кофры боковые

Harley Davidson FLHPE 1FTM ROAD KING POLICE (2011)

Harley Davidson
#oem кодцена
1
2664
SCREW NO. 10-24 X 7/16 POZIDRIV PAN HD. (GRADE 2)
2
3595
SCREW NO. 6-32 X 1/4 TORX HD., W/LOCKPATCH
3
6229W
WASHER 5/16 X 1-1/16 X 3/64
4
6368
WASHER 1/8 X 3/8 X 1/16
5
6970
WASHER 1/4 X 1/2 X 1/16 SPRING
6
7128
LOCKWASHER 9/32 INTERNAL TOOTH
7
7586
JAMNUT 9/32-28 X 1/4
8
7838
NUT NO. 10-24 KEPS
9
8468
заклёпка
10
8502
заклёпка
11
8551
заклёпка
12
8557
заклёпка
13
11464
ISOLATOR GROMMET
14
14274-93A
DECAL RIGHT (POLICE)
14
14275-93A
DECAL LEFT (POLICE)
14
59223-93A
DECAL RIGHT (SHERIFF)
14
59224-93A
DECAL LEFT (SHERIFF)
15
53427-80
HINGE
16
53478-80
BACKING PLATE
17
53563-82
BRACKET CABLE BRACE MOUNTING
18
53861-93
CABLE BRACE COVER
18
53568-03A
LOCKSET COMPLETE, W/ KEYS, KEY COVERS, CAM HOOK, IGNITION SWITCH, FORK LOCK, CAM LOCK & CABLE STRAP
19
53848-00
T-PAK LOCK SET (SPECIFY 4-DIGIT KEY CODE)
20
53616-85
CATCH
21
53617-85
GUIDE LATCH
22
59221-93
COVER DECAL, LEFT
22
59222-93
COVER DECAL, RIGHT
23
59287-92
REFLECTOR RIGHT (RED)
23
59288-92
REFLECTOR LEFT (RED)
24
61081-92
COVER KEY HEAD SET (NOT ILLUSTRATED)
25
79048-98
SEAL LATCH
26
84850-92
NUT 3/4-24 X 5/32
27
90634-93
BOTTOM SADDLEBAG (PRIME), RIGHT
27
90796-93
BOTTOM SADDLEBAG (PRIME), LEFT
28
90754-93
COVER SADDLEBAG (PRIME), RIGHT
28
90776-93
COVER SADDLEBAG (PRIME), LEFT
29
90675-93A
GASKET SADDLEBAG COVER
30
90686-92
CAM HOOK
31
90687-85
REINFORCING PLATE
32
90764-93
CUSHION SADDLEBAG SUPPORT (4)
33
90798-99
Прокладка
34
90820-93D
LABEL LOAD LIMITS
35
90902-93
PLATE HINGE
36
90926-84
BRACKET SPRING LATCH
37
90929-84
SPRING LATCH W/ KNOB
38
90964-63
BACKING PLATE
39
90967-64
заклёпка
40
10900026
BAIL HEAD STUD (NOTE: REMOVE BAIL FOR HDI SALE, EXCLUDING JAPAN)
41
59289-92
REFLECTOR RIGHT (AMBER) (HDI)
41
59290-92
REFLECTOR LEFT (AMBER) (HDI)
