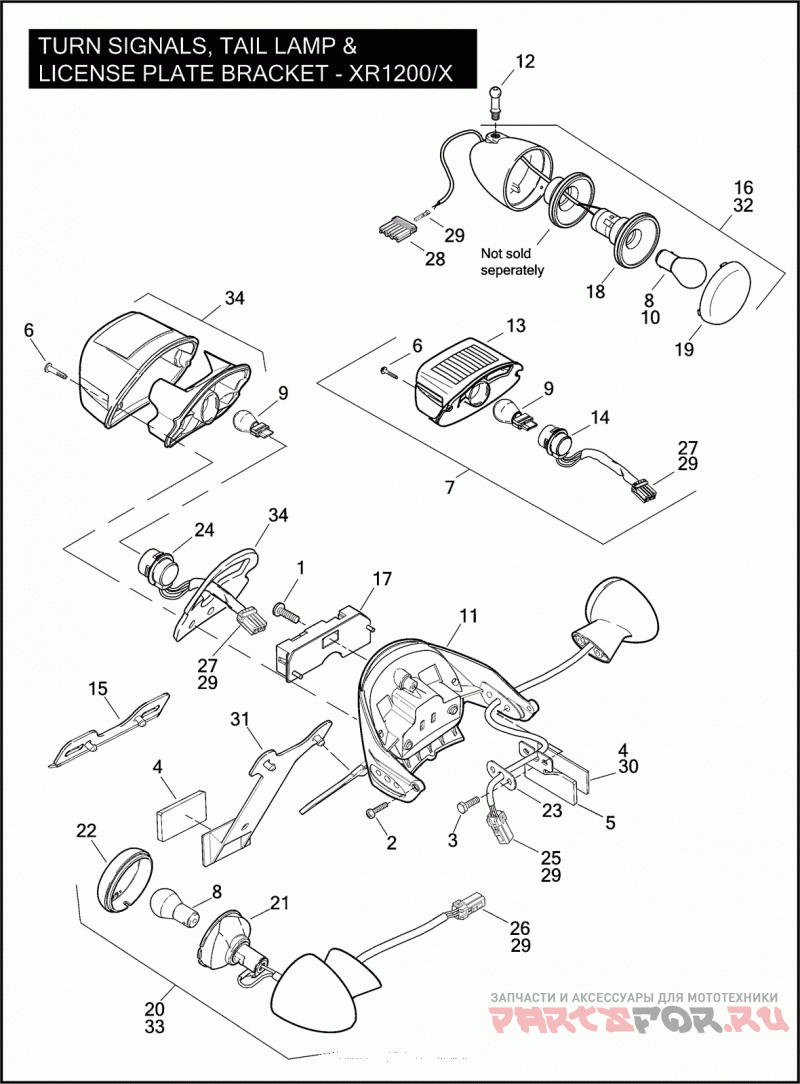

TURN SIGNALS, TAIL LAMP & LICENSE PLATE BRACKET - XR1200/X

Harley Davidson XR1200X 1LD6 XR1200X (2010)

Harley Davidson
#oem кодцена
1
930
SCREW 10-24 X 1-1/4 FILLISTER HD.
2
2653
SCREW NO. 10-24 X 7/8 FILLISTER HD.
3
3706M
SCREW M6 X 1.0 X 20 HEX HD.
4
59259-90
REFLECTOR RED (DOMESTIC)
5
60183-08
BRACKET SIDE REFLECTOR MOUNT
6
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
7
68140-04
TAIL LAMP ENVELOPE
8
68163-84
BULB SINGLE CONTACT
9
68167-04
BULB
10
68168-89A
BULB DUAL CONTACT
11
68257-08
LICENSE PLATE MODULE
12
68265-04
BALL STUD
13
68369-03
LENS TAIL LAMP, W/ 68026-99
14
68370-03A
SOCKET ASSEMBLY TAIL LAMP, REAR, W/ 9, 27 & 29
15
68561-09
BRACKET REFLECTOR
16
68804-06
TURN SIGNAL SUB-ASSEMBLY BLACK
17
68830-99A
CIRCUIT BOARD & COVER ASSEMBLY
18
68904-00
SOCKET ASSEMBLY (DOM) (HDI - NOT SOLD SEPERATELY)
19
68973-00
Линза
20
68984-01
TURN SIGNAL ASSEMBLY W/ 8, 20,21 & 29
21
69066-01A
SOCKET ASSEMBLY (DOM) (HDI - NOT SOLD SEPERATELY)
22
69110-01
Линза
23
69148-01
PLATE SUPPORT
24
69187-03A
SOCKET ASSEMBLY TAIL LAMP, REAR, W/ 9, 27 & 29
25
73152-96BK
SOCKET HOUSING 2-WAY (BLACK)
26
73152-96WE
SOCKET HOUSING 2-WAY (WHITE)
27
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
28
73156-96BK
SOCKET HOUSING 6-WAY (BLACK)
29
73191-96
SOCKET TERMINAL 16-20 AWG
30
59256-84A
REFLECTOR AMBER (HDI)
31
60188-08
BRACKET REFLECTOR W/ 59259-90 (HDI)
32
68838-06
TURN SIGNAL SUB-ASSEMBLY BLACK (HDI)
33
69530-08
TURN SIGNAL ASSEMBLY W/ 8, 21 & 29 (HDI)
34
69864-08
TAIL LAMP ENVELOPE (HDI)
