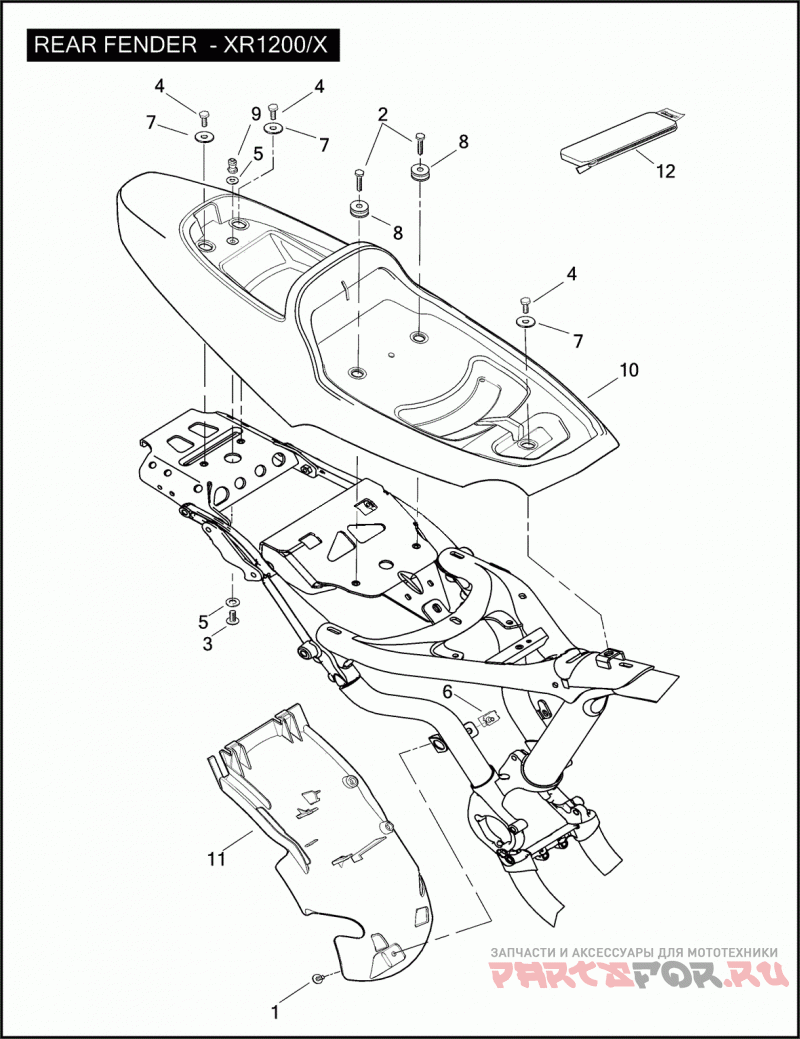

REAR FENDER - XR1200/X

Harley Davidson XR1200X 1LD6 XR1200X (2010)

Harley Davidson
#oem кодцена
1
2445
SCREW 1/4-20 X 9/16 BUTTON HD.
2
2872W
BOLT 1/4-20 X 1-1/2 HEX HD. (GRADE 5)
3
3574
SCREW 1/4-20 X 3/4 FLANGE
4
3802W
BOLT 1/4-20 X 7/8 HEX HD. (GRADE 5)
5
6703
WASHER 1/4 X 5/8 X 1/16
6
7900
CLIP NUT 1/4-20
7
48390-06
Проставка
8
51710-08
POST SEAT, GRABSTRAP
9
52429-08
SEAT POST
10
59901-08BDK
FENDER REAR (PRIME)
11
59916-08
FENDER ASSEMBLY INNER
12
92500-10
TOOL KIT W/ C2045.1AK, C2050.1AM, C2051.1AM
12
C2045.1AK
HEX KEY 5MM (TOOL KIT) (NOT ILLUSTRATED)
12
C2050.1AM
WRENCH REAR SHOCK (TOOL KIT) (NOT ILLUSTRATED)
12
C2051.1AM
HANDLE WRENCH (TOOL KIT) (NOT ILLUSTRATED)
