  5. XR1200 1LA6 XR1200 (2010)

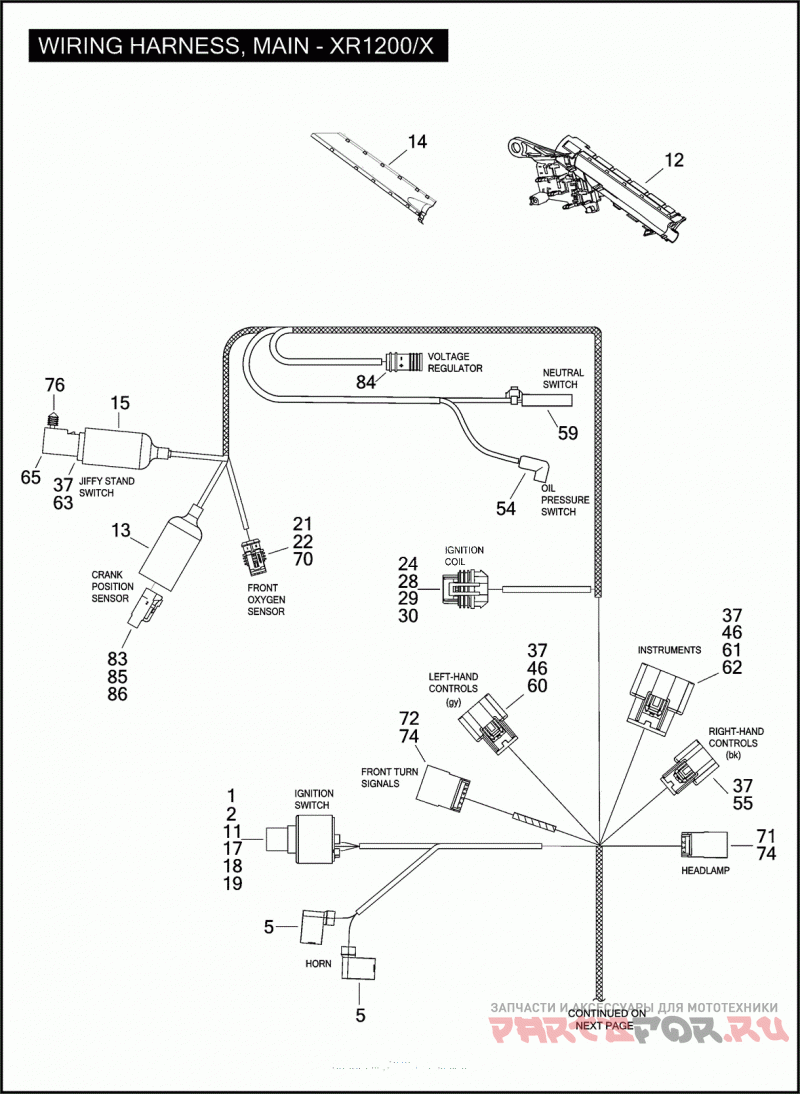

WIRING HARNESS, MAIN - XR1200/X

Harley Davidson XR1200 1LA6 XR1200 (2010)

Harley Davidson
#oem кодцена
70225-10
WIRING HARNESS MAIN
1
3124
SCREW 10-24 X 1/2 TORX PAN HD. W/LOCK PATCH
2
7220
LOCKWASHER NO. 10 EXTERNAL TOOTH
3
9810
OVERMOLD FUEL TANK, GROUND
4
9838
TERMINAL RING 1/4, 10-12 GAUGE
5
9898
TERMINAL FLAG
6
10006
CABLE STRAP (AS REQUIRED)
7
10065
CABLE STRAP (AS REQUIRED)
8
10279
CLIP HARNESS MOUNT
9
10287
CABLE STRAP (AS REQUIRED)
10
31586-07
RELAY
11
31806-08A
BRACKET ASSEMBLY
11
56073-83
RETAINER H-CLIP (NOT PART OF WIRING HARNESS) (NOT ILLUSTRATED)
12
70368-08
WIRE HARNESS CADDY
13
70598-99
BOOT TEMPERATURE SENSOR
14
70632-08
CADDY COVER
15
70664-08
BOOT JIFFY STAND SENSOR
16
71341-10
CADDY
17
71510-04
HOUSING IGNITION SWITCH
18
71550-94
LABEL IGNITION SWITCH
19
71552-94
FACE NUT IGNITION SWITCH
20
72006-05
TERMINAL 16-20 GAUGE
21
72007-05
HOUSING SOCKET, 2-WAY
22
72011-05
WIRE SEAL 16-20 GAUGE (YELLOW)
23
72033-93
TERMINAL SOCKET, 16-20 GAUGE
24
72066-06A
SOCKET HOUSING 4-WAY
25
72076-00
TERMINAL SOCKET
26
72077-00
SEAL PIN
27
72078-00
KIT CONNECTOR, 36-POSITION SOCKET HOUSING
28
72094-06
TERMINAL SOCKET, FEMALE, 18 GAUGE
29
72096-06
SEAL WIRE 18-20 AWG (YELLOW)
30
72124-94GY
SOCKET HOUSING 4-WAY (GRAY)
31
72135-06
SECONDARY LOCK 4-WAY, FEMALE (GRAY)
32
72139-94GY
SOCKET HOUSING 12-WAY, W/ 72179-94 (GRAY)
33
72144-94
SECONDARY LOCK 4-WAY
34
72159-94
SECONDARY LOCK PIN, 12-WAY
35
72164-94A
WEATHER PLUG 4-WAY
36
72167-07BK
HOUSING 16-WAY, PIN (BLACK)
37
72168-07
TERMINAL SOCKET, 18-20 GAUGE
38
72169-07
TERMINAL PIN, 16-20 GAUGE
39
72175-07BK
HOUSING PIN, 4-WAY (BLACK)
40
72179-94
Уплотнение
41
72190-94
TERMINAL PIN, 16-18 GAUGE
42
72191-94
TERMINAL SOCKET, 16-18 GAUGE
43
72195-94
SEAL PIN, 4-WAY
44
72199-94
CONNECTOR ANCHOR
