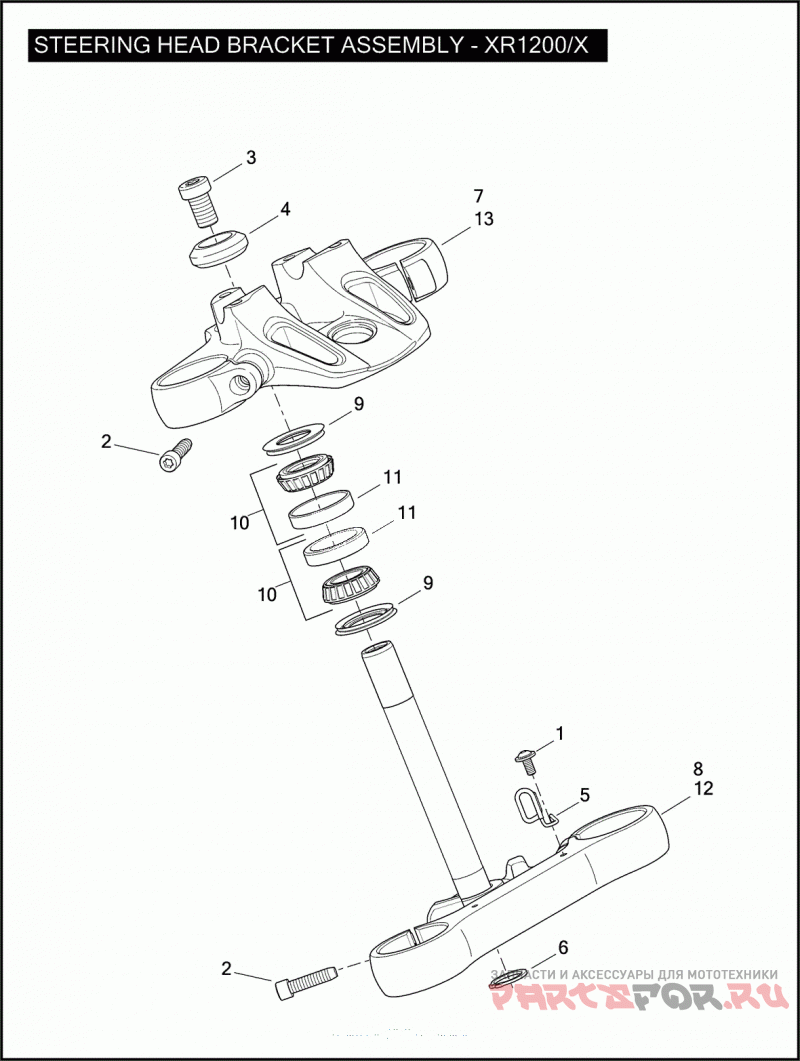

STEERING HEAD BRACKET ASSEMBLY - XR1200/X

Harley Davidson XR1200 1LA6 XR1200 (2010)

STEERING HEAD BRACKET ASSEMBLY - XR1200/X

#

oem код

название

цена

1

SCREW 1/4-20 X 9/16 BUTTON HD.

SCREW 1/4-20 X 9/16 BUTTON HD.

2

SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)

SCREW 3/8-16 X 1-1/2 TORX, SELF-TAPPING (GRADE 8)

3

Болт

Болт

4

Шайба

Шайба

5

GUIDE CONTROL CABLE

GUIDE CONTROL CABLE

6

Стопорное кольцо

Стопорное кольцо

7

BRACKET UPPER

BRACKET UPPER

8

BRACKET LOWER, W/ BEARING, SEAL & RETAINING RING

BRACKET LOWER, W/ BEARING, SEAL & RETAINING RING

9

SEAL TAPERED BEARING

SEAL TAPERED BEARING

10

ROLLER BEARING W/ CUP

ROLLER BEARING W/ CUP

11

BEARING CUP

BEARING CUP
