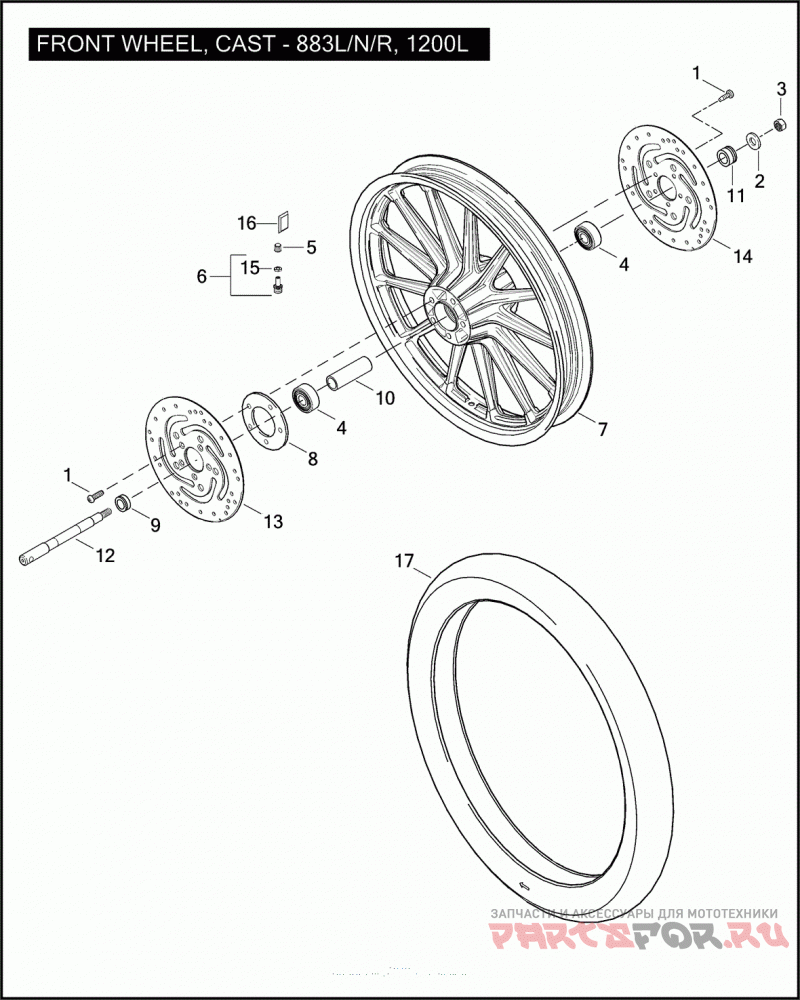

FRONT WHEEL, CAST - 883L/N/R, 1200L

Harley Davidson XL883N 4LE2 IRON 883 (2010)

Harley Davidson
#oem кодцена
1
3655A
SCREW 5/16-18 X 7/8 TORX PAN HD., W/LOCKPATCH (GRADE 8)
2
6594
WASHER 5/8 X 1-1/8 X 3/32
3
7813A
NUT 5/8-18 X 9/16 X 15/16 (GRADE 2)
4
9276A
BALL BEARING 25MM
5
41123-79
VALVE CAP
6
43157-83A
VALVE STEM ASSEMBLY W/ 54321-85
7
47875-09A
WHEEL ASSEMBLY 19 IN. (13 SPOKE) (BLACK) W/O BEARINGS & SLEEVES
8
43355-00
HUB PLATE (FLAT BLACK)
9
43358-08
SPACER BEARING - RH
10
43906-08
SPACER HUB
11
43522-08
SPACER BEARING - LH
12
43895-08
AXLE (FRONT)
14
44156-00
DISC BRAKE - LH
15
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
16
95595-84B
WHEEL WEIGHT 5 GRAMS (SILVER)
17
43112-91A
TIRE
