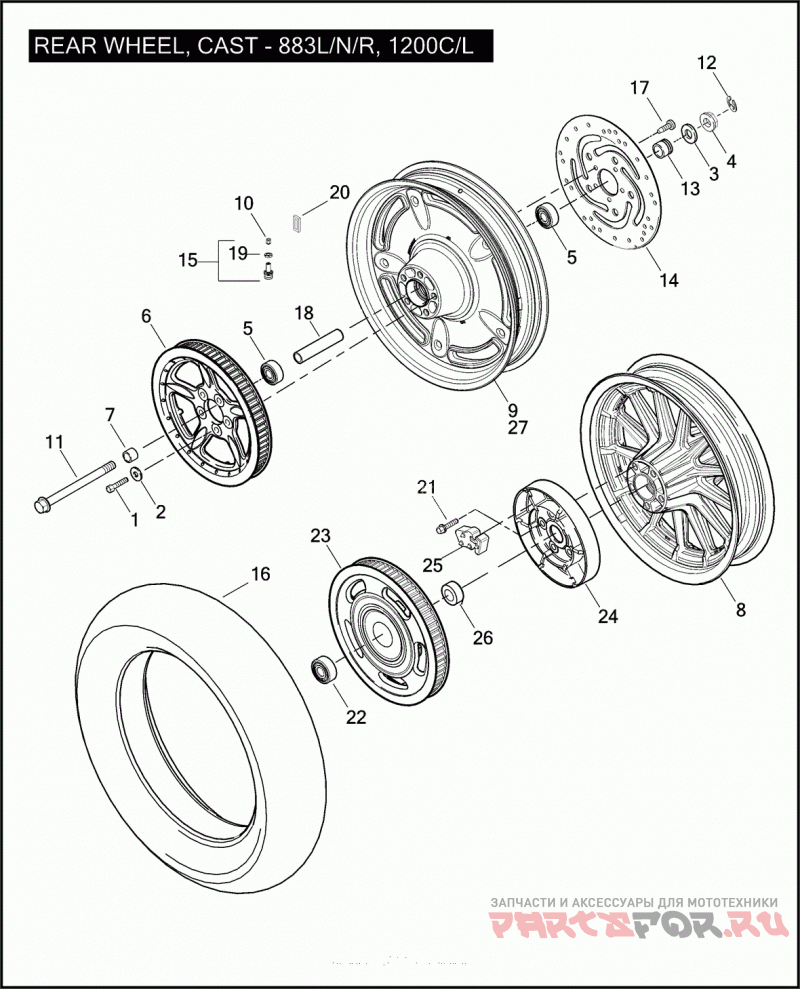

REAR WHEEL, CAST - 883L/N/R, 1200C/L

Harley Davidson XL883C 4CP2 SPORTSTER 883 CUSTOM (2010)

Harley Davidson
#oem кодцена
1
3899
SCREW 7/16-14 X 1-3/4 HEX HD., W/LOCKPATCH
2
6516HW
WASHER 7/16 X 1-1/8 X 1/8
3
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
4
8190
NUT M24 X 2.0
5
9276A
BALL BEARING 25MM
6
40352-07
SPROCKET BELT - 68T (SILVER)
7
40930-05
SPACER WHEEL BEARING, SPROCKET SIDE
10
41123-79
VALVE CAP
11
41176-08
AXLE ASSEMBLY
12
41229-08
Стопорное кольцо
13
41730-08
SPACER DISK SIDE
14
41797-00
BRAKE DISC
15
43157-83A
VALVE STEM ASSEMBLY W/ 54321-85
16
43264-02
TIRE
17
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
18
43905-08
SLEEVE SPACER
19
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
20
95595-84B
WHEEL WEIGHT 5 GRAMS (SILVER)
21
3814
SCREW 7/16-14 X 1-3/4 HEX HD., W/WASHER (GRADE 8)
22
9254
BEARING (JAPAN)
23
40544-08
SPROCKET ASSEMBLY FINAL DRIVE, W/ BEARING - 68T (SILVER) (JAPAN)
24
40560-05
BOWL COMPENSATOR (JAPAN)
25
40561-05
ISOLATOR RUBBER (JAPAN)
26
40562-05
SPACER (JAPAN)
27
41058-09
WHEEL ASSEMBLY SOLID, W/ HOLES (SILVER) W/O BEARINGS & SLEEVES (HDI)
