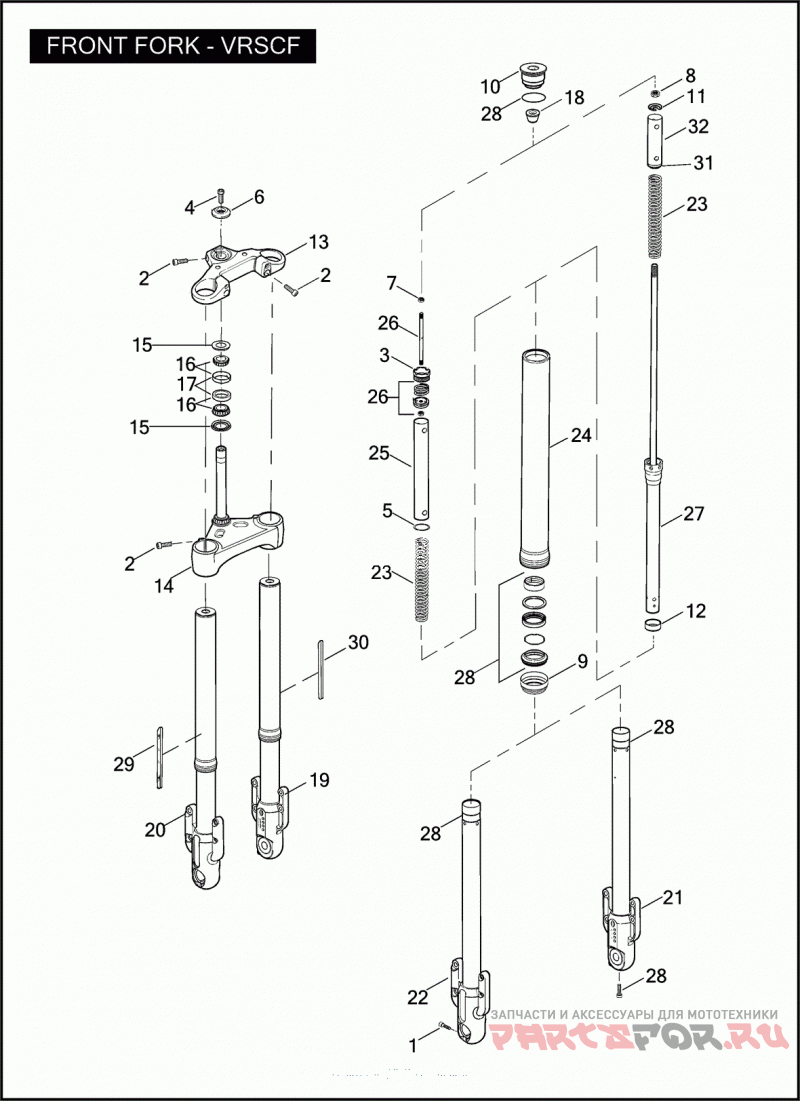

FRONT FORK - VRSCF

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2010)

Harley Davidson
#oem кодцена
1
4499M
BOLT M10 X 1.25 X 35 SOCKET HD.
2
4534M
SCREW M10 X 1.5 X 30 SOCKET HD.
3
4575
BOLT INNER FORK - RIGHT ONLY
4
4870M
BOLT M12 X 1.75X 30 M8 DRIVE
5
5925
WASHER 29 X 39 X 2-19/64
6
6514
STEERING WASHER (SILVER)
7
7468M
NUT M10 X 1 X 6
8
8199M
NUT M10 X 1.0
9
46344-06
COVER SLIDER
10
46350-06
CAP SLIDER TUBE
11
46352-06
SPRING SEAT - LEFT ONLY
12
46353-06
CENTERING PLATE - LEFT ONLY
13
46891-09C
BRACKET UPPER (SILVER)
14
46892-09B
STEM & BRACKET W/ BEARING & SHIELD
15
48184-01
Уплотнение
16
48300-60
ROLLER BEARING W/ CUP
17
48315-60
BEARING CUP
18
J8146.1AS
Стопор
19
48700-09
FORK ASSEMBLY LEFT
20
48701-09
FORK ASSEMBLY RIGHT
21
48702-09
SLIDER LEFT
22
48703-09
SLIDER RIGHT
23
48704-09
Пружина
24
48705-09
OUTER TUBE LEFT/RIGHT
25
48708-09
SPRING COLLAR - RIGHT ONLY
26
48777-09
JOINT ROD - RIGHT ONLY
27
48779-09
DAMPER COMP - LEFT ONLY
28
49380-09
FORK REBUILD KIT
29
59481-00
REFLECTOR AMBER W/SILVER BASE - RIGHT HAND
30
59482-00
REFLECTOR AMBER W/SILVER BASE - LEFT HAND
31
J0117.3A8
SPRING JOINT - LEFT ONLY
32
J8135.1AE
SPRING COLLAR - LEFT ONLY
