Привод управления сцеплением для мотоциклов Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2010) (2010)

Москва и регионы России

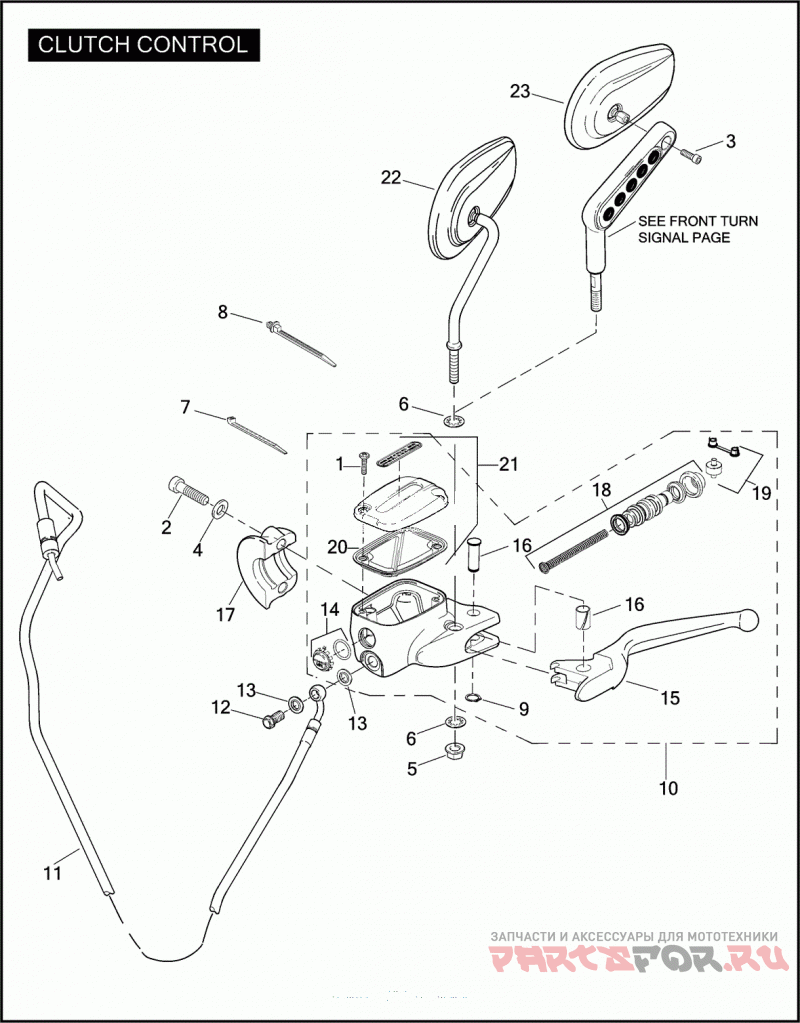

Привод управления сцеплением

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2010)

Привод управления сцеплением

#

oem код

название

цена

1

SCREW NO. 8-32 X 5/8 PHILLIPS HD.

SCREW NO. 8-32 X 5/8 PHILLIPS HD.

2

SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)

SCREW 1/4-20 X 1-1/8 TORX BUTTON HD. (GRADE 5) (BLACK)

3

SCREW M6 X 1.0 X 10 HEX SOCKET HD CAP W/LOCK PATCH

SCREW M6 X 1.0 X 10 HEX SOCKET HD CAP W/LOCK PATCH

4

WASHER 17/64 X 27/64 X 1/16

WASHER 17/64 X 27/64 X 1/16

5

NUT M8 X 1.25 FLANGE

NUT M8 X 1.25 FLANGE

6

LOCKWASHER 5/16 INTERNAL TOOTH (BLACK)

LOCKWASHER 5/16 INTERNAL TOOTH (BLACK)

7

CABLE STRAP

CABLE STRAP

8

RETAINER CLUTCH LINE

RETAINER CLUTCH LINE

9

Стопорное кольцо

Стопорное кольцо

10

MASTER CYLINDER ASSEMBLY (BLACK)

MASTER CYLINDER ASSEMBLY (BLACK)

11

LINE ASSEMBLY CLUTCH

LINE ASSEMBLY CLUTCH

12

BOLT BANJO

BOLT BANJO

13

GASKET BRAKE LINE

GASKET BRAKE LINE

14

SIGHT GLASS KIT

SIGHT GLASS KIT

15

CLUTCH LEVER KIT W/ 11143

CLUTCH LEVER KIT W/ 11143

16

PIVOT PIN KIT W/ 38738-08

PIVOT PIN KIT W/ 38738-08

17

CLAMP MASTER CYLINDER CLUTCH (BLACK)

CLAMP MASTER CYLINDER CLUTCH (BLACK)

19

BUSHING & ROLLER KIT

BUSHING & ROLLER KIT

20

GASKET COVER

GASKET COVER

21

COVER MASTER CYLINDER ASSEMBLY W/ 46322-06

COVER MASTER CYLINDER ASSEMBLY W/ 46322-06

23

MIRROR ASSEMBLY - LEFT

MIRROR ASSEMBLY - LEFT
