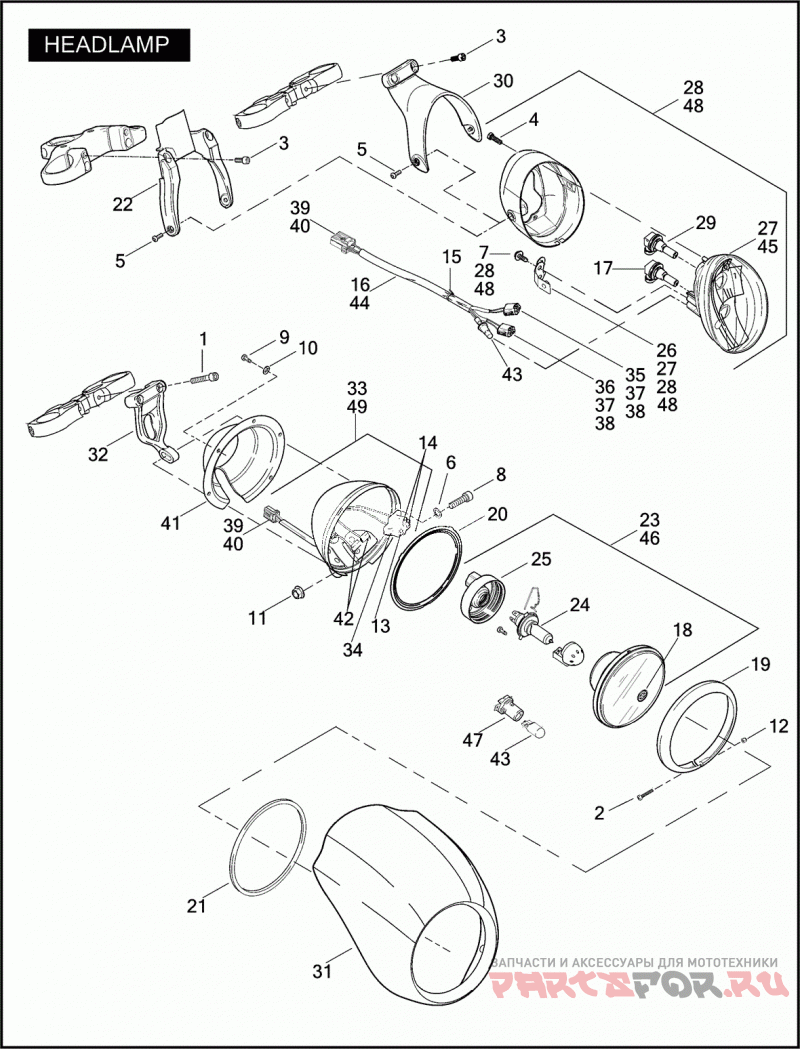

Фара

Harley Davidson VRSCF 1HPH V-ROD MUSCLE (2010)

Harley Davidson
#oem кодцена
3
3709M
SCREW M8 X 1.25 X 20 SOCKET HD.
4
3753M
SCREW M3 X 1.06 CROSS RECESSS PAN HD.
5
3832M
SCREW M6 X 1.0 X 20 HEX BUTTON HD.
15
10065
CABLE STRAP
16
67657-05
HARNESS HEADLAMP
17
67717-01
BULB - HIGH BEAM
22
68228-09
BRACKET HEADLAMP MOUNTING
26
68807-01
BRACKET REFLECTOR MOUNTING
27
68254-01
REFLECTOR ASSEMBLY HEADLAMP, W/ 3853M & 68807-01
28
69873-07B
HEADLAMP ASSEMBLY (DOMESTIC, CALIFORNIA, CANADA) (SATIN BLACK)
29
68881-01
BULB - LOW BEAM
35
72449-01
HOUSING SOCKET - 2-WAY (BLACK)
36
72450-01
HOUSING SOCKET - 2-WAY (GRAY)
37
72527-01
SOCKET TERMINAL #18-20 AWG.
38
72633-02
SEAL WIRE 14-16 AWG. (WHITE)
39
73154-96BK
SOCKET HOUSING - 4-WAY
40
73191-96
SOCKET CONTACT 20-16 GAUGE (AS REQUIRED)
43
53436-97
BULB POSITION LAMP (HDI)
44
67658-05
HARNESS HEADLAMP (HDI)
45
68255-01
REFLECTOR ASSEMBLY HEADLAMP - RIGHT DIP (HDI)
45
68256-01
REFLECTOR ASSEMBLY HEADLAMP - LEFT DIP (HDI)
48
69875-07B
HEADLAMP ASSEMBLY - LEFT DIP (ENGLAND, AUSTRALIA, JAPAN) (BLACK)
48
69874-07B
HEADLAMP ASY,RHT
