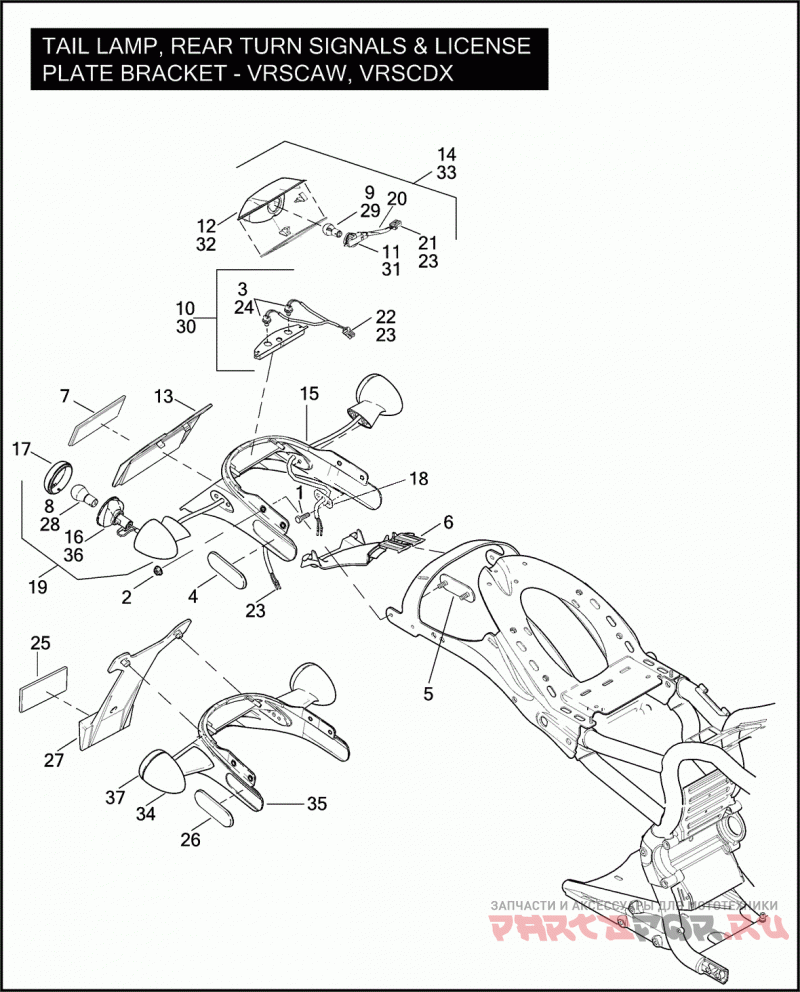

TAIL LAMP, REAR TURN SIGNALS, & LICENSE PLATE BRACKET - VRSCAW/DX

Harley Davidson VRSCAW 1HFH VRSCAW V-ROD (2010)

Harley Davidson
#oem кодцена
1
4593M
SCREW M6 X 1 X 16 HEX HD., W/LOCKPATCH
2
7495
NUT M6 FLANGE
3
53436-97
BULB LICENSE PLATE ILLUMINATION
4
67900205
REFLECTOR (RED) (DOMESTIC)
5
59464-06
STUD PLATE
6
59557-07A
SHROUD TAIL LAMP
7
59988-72A
Отражатель
8
68163-84
BULB TURN SIGNAL
9
68168-89A
BULB TAIL LAMP
10
68205-07
LAMP ASM LICENSE PLATE ILLUM., W/ 53436-97, &73191-96
11
68324-07
BULB SOCKET ASSEMBLY W/ 72412-97, 73154-96BK, &73191-96
12
68326-01A
ENVELOPE ASSEMBLY TAIL LAMP - INCLUDES LENS
13
68340-01
BRACKET REFLECTOR REAR, W/ 59988-72A
14
68876-07
TAIL LAMP ASSEMBLY W/ 68168-89A, 68324-07, & 68326-01A
15
69086-07A
LICENSE PLATE BRACKET REAR LIGHTING
16
69066-01A
SOCKET ASSEMBLY TURN SIGNAL
17
69110-01
LENS TURN SIGNAL
18
69190-07
Опорная Плита
19
68984-01
TURN SIGNAL ASSEMBLY W/ 68163-84, 69066-01A, 69110-01, & 73191-96
20
72412-97
CABLE SEAL
21
73154-96BK
HOUSING SOCKET 4-WAY (BLACK)
22
73156-96BK
HOUSING SOCKET 6-WAY (BLACK)
23
73191-96
TERMINAL AS REQUIRED
24
53436-97
BULB LICENSE PLATE ILLUMINATION (HDI)
25
59259-90
REFLECTOR (HDI)
26
67900212
REFLECTOR (AMBER) (HDI)
27
60119-03
BRACKET REFLECTOR W/ 59259-90 (HDI)
28
68163-84
BULB TURN SIGNAL (HDI)
29
68169-90A
BULB TAIL LAMP (HDI)
30
68205-07
LAMP ASM LICENSE PLATE ILLUM., W/ 53436-97, 73191-96 (HDI)
31
68325-07
BULB SOCKET ASSEMBLY (HDI)
32
68327-01A
ENVELOPE ASSEMBLY TAIL LAMP (HDI)
33
68879-07
TAIL LAMP ASSEMBLY W/ 68169-90A, 68325-07, & 68327-01A (HDI)
34
69583-07
TURN SIGNAL ASSEMBLY W/ 68163-84, 69068-01A, 69110-01, & 73191-96 (HDI)
35
69086-07A
LICENSE PLATE BRACKET REAR LIGHTING (HDI)
36
69068-01A
SOCKET ASSEMBLY TURN SIGNAL (HDI)
37
69110-01
LENS TURN SIGNAL (HDI)
