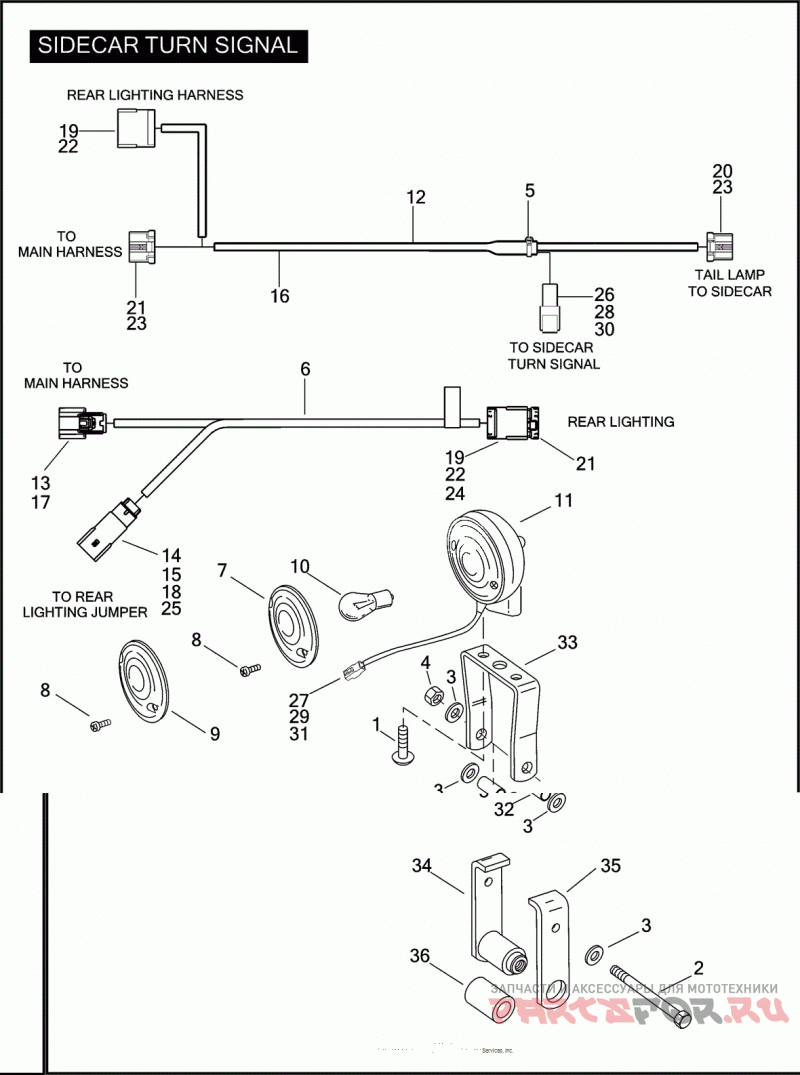

SCREW NO. 10-24 X 7/16 POZIDRIV PAN HD. (GRADE 2)

BOLT 3/8-24 X 2-3/4 HEX HD. (GRADE 5)

WASHER 3/8 X 1 X 5/64

LOCKNUT 3/8-24 X 13/32 X 11/16 FLANGE

CABLE STRAP

WIRE HARNESS SIDECAR LIGHTING JUMPER, W/ 13, 14, 15, 17, 18, 19, 22, 24 & 25 (USED ONLY ON SIDECAR EQUIPPED 2010 FLHX AND 2010 FLTRX MODELS.

LENS TURN SIGNAL (AMBER)

Винт

LENS TURN SIGNAL (RED)

BULB TURN SIGNAL

LAMP TURN SIGNAL, W/ 7, 8, 10, 27, 29 & 31 (AMBER)

WIRING HARNESS SIDECAR LIGHTING, W/ 5, 16, 19, 20, 21, 22, 23, 26, 28 & 30

TERMINAL SOCKET, 18-20 AWG

TERMINAL PIN, 16-18 AWG

PIN HOUSING 6-WAY (BLACK)

HEAT SHRINK TUBE DUAL WALL, .3 X 2 INCHES

SOCKET HOUSING 6-WAY (BLACK)

SEAL PIN

PIN HOUSING 8-PLACE

SOCKET HOUSING 6-PLACE SINGLE ROW

SOCKET HOUSING 8-PLACE

TERMINAL PIN, 16-20 AWG

TERMINAL SOCKET, 16-20 GAUGE

CONNECTOR ANCHOR

RETAINER X-MAS TREE CLIP

PIN HOUSING 2-PLACE

SOCKET HOUSING 2-WAY

PIN LOCK 2-PLACE HOUSING

SOCKET LOCK 2-WAY

TERMINAL PIN, 16-20 AWG

SOCKET TERMINAL

SPACER TURN SIGNAL & SPRING SHACKLE

BRACKET TURN SIGNAL

SHACKLE PLATE ASSEMBLY W/ 88314-37

SHACKLE

BUSHING SHACKLE PLATE
