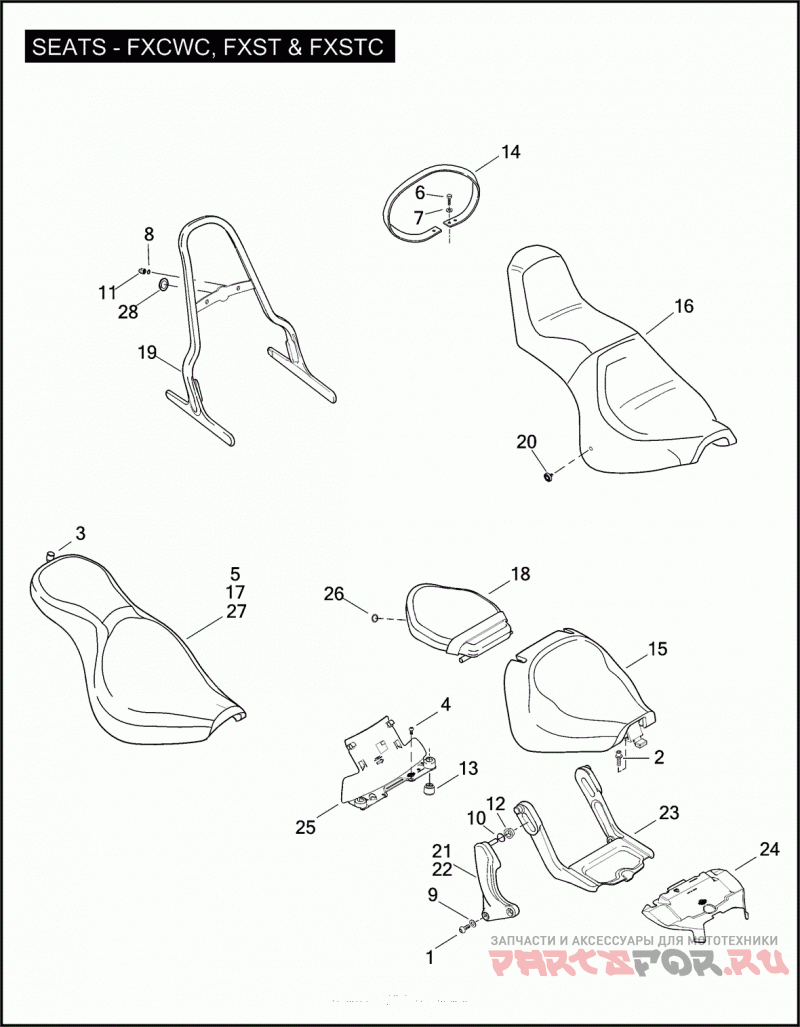

SEATS - FXCWC, FXST & FXSTC
Harley Davidson FXST 1BV5 SOFTAIL STANDARD (2010)
| # | oem код | название | цена |
|---|---|---|---|
3 | 3075 SCREW 1/4-20 X 11/32 PAN HD. | SCREW 1/4-20 X 11/32 PAN HD. | |
5 | 3588 SCREW 1/4-20 X 1/2 HEX FLANGE HD. | SCREW 1/4-20 X 1/2 HEX FLANGE HD. | |
6 | 3767B BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5) | BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5) | |
7 | 6036 WASHER 17/64 X 1 X 1/16 | WASHER 17/64 X 1 X 1/16 | |
14 | 51188-00 PASSENGER STRAP | PASSENGER STRAP | |
17 | 51652-97A BRACKET SEAT MOUNTING | BRACKET SEAT MOUNTING | |
27 | 91767-07 SEAT W/ 3588 & 51652-97A | SEAT W/ 3588 & 51652-97A |
