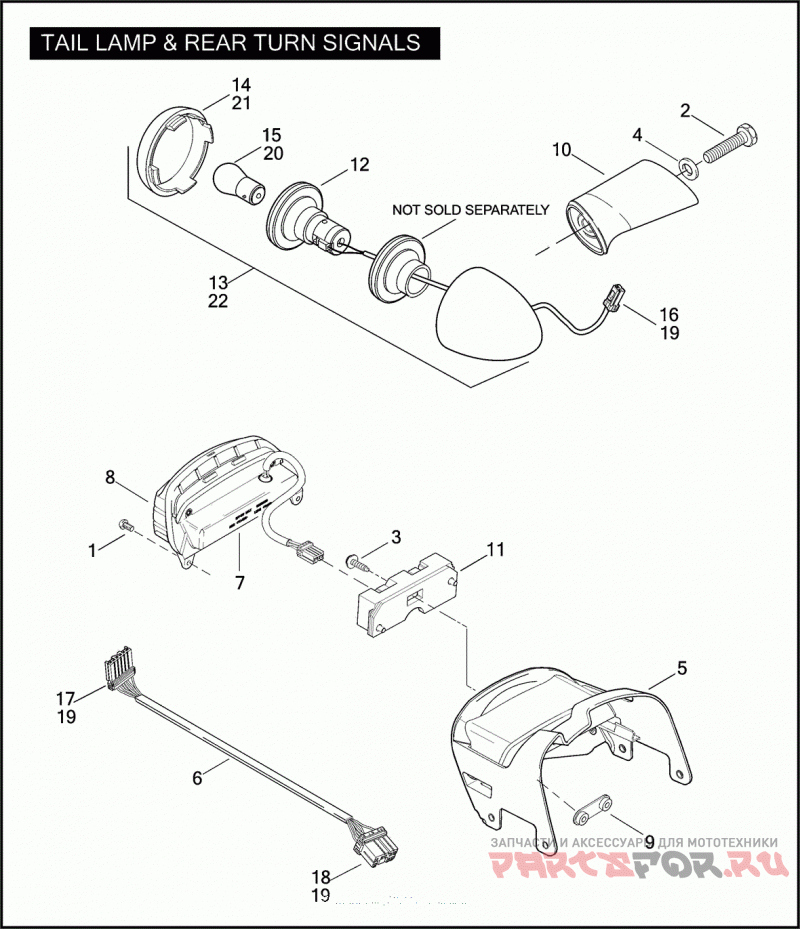

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FXDFSE2 1PX8 CVO FAT BOB (2010)

Harley Davidson
#oem кодцена
1
2563
SCREW NO. 10-24 X 5/8 TORX BUTTON HD.
2
2887WA
SCREW 5/16-18 X 1-3/4 HEX HD. (GRADE 5)
3
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
4
6016
WASHER 11/32 X 11/16 X 1/16
5
60205-09
BRACKET TAIL LAMP/LICENSE PLATE
6
67484-09A
HARNESS ASSEMBLY REAR LIGHTING
7
68349-07D
TAIL LIGHT LED
8
68429-09
COVER TAIL LIGHT
9
68442-07
PLATE NUT
10
68821-00
SUPPORT REAR LAMP MOUNTING
11
68830-99A
CIRCUIT BOARD/COVER ASSEMBLY
12
68905-00
SOCKET ASSEMBLY TURN SIGNAL
13
69196-03
TURN SIGNAL ASSEMBLY REAR
14
69325-02
LENS TURN SIGNAL (SMOKE)
15
69330-02
BULB REAR TURN SIGNAL (AMBER)
16
73152-96BK
HOUSING 2-PLACE SOCKET
17
73156-96BK
HOUSING 6-PLACE SOCKET
18
73158-96BK
HOUSING 8-PLACE SOCKET
19
73191-96
TERMINAL SOCKET, #16-20 AWG (AS REQUIRED)
20
68163-84
BULB (HDI)
21
68973-00
LENS AMBER (HDI)
22
68978-00
TURN SIGNAL ASSEMBLY REAR (HDI)
