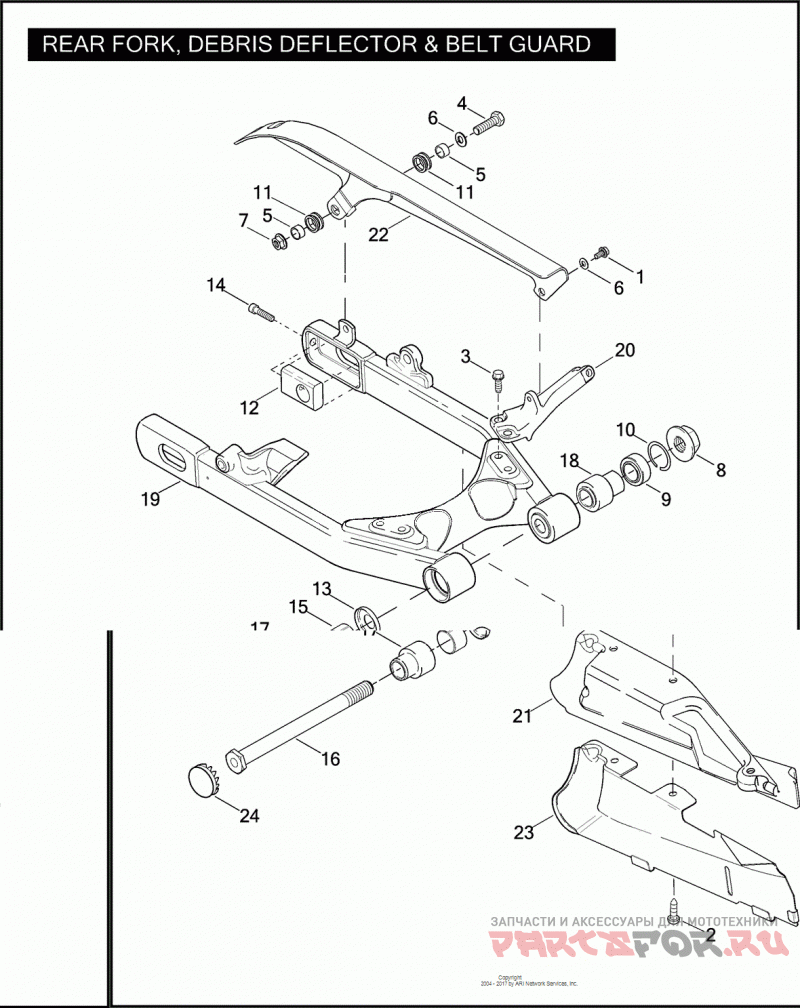

REAR FORK, DEBRIS DEFLECTOR & BELT GUARD

Harley Davidson FXDFSE2 1PX8 CVO FAT BOB (2010)

Harley Davidson
#oem кодцена
1
3340
SCREW 5/16-18 X 1/2 HEX HD. (GRADE 8)
2
3579A
SCREW 1/4-28 X 1/4 SEMS HEX HD., SELF-TAPPING (GRADE 2)
3
4059
SCREW 3/8-16 X 1 TORX HD., W/LOCKPATCH, SELF-TAPPING (GRADE 8)
4
4654
SCREW BUTTON HEX SOCKET
5
5928
Проставка
6
6702
WASHER 5/16 X 11/16 X 1/16
7
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
8
8050
NUT FLANGE
9
9208
BEARING PIVOT
10
10992
RETAINING RING INTERNAL
11
11578
GROMMET BELT GUARD
12
41571-08
BLOCK AXLE ADJUSTER
13
41585-90B
DUST SHIELD
14
45991-06
SCREW 3/8-16 X 0.163 (GRADE 8)
15
47624-90B
Втулка
16
47641-06
SCREW 3/4-10 X 9-1/4 HEX HD. (GRADE 8)
17
47841-06
SPACER RIGHT HAND
18
47844-06
SPACER LEFT HAND
19
48656-10DER
SWINGARM ASSEMBLY W/ 9208, 10992, 41585-90B, 47624-90A & 47844-06 (BLACK)
19
48656-10CRP
SWINGARM ASSEMBLY W/ 9208, 10992, 41585-90B, 47624-90A & 47844-06 (BLACK DIAMOND)
19
48656-10DEW
SWINGARM ASSEMBLY W/ 9208, 10992, 41585-90B, 47624-90A & 47844-06 (PEWTER)
20
49251-06
SUPPORT PASSENGER FOOTREST, LEFT HAND
21
60356-07A
DEBRIS DEFLECTOR
22
60322-04
BELT GUARD (CHROME)
23
60514-07A
COVER KIT DEBRIS DEFLECTOR, W/ KIT HARDWARE (CHROME)
24
68222-06
PLUG HOLE
