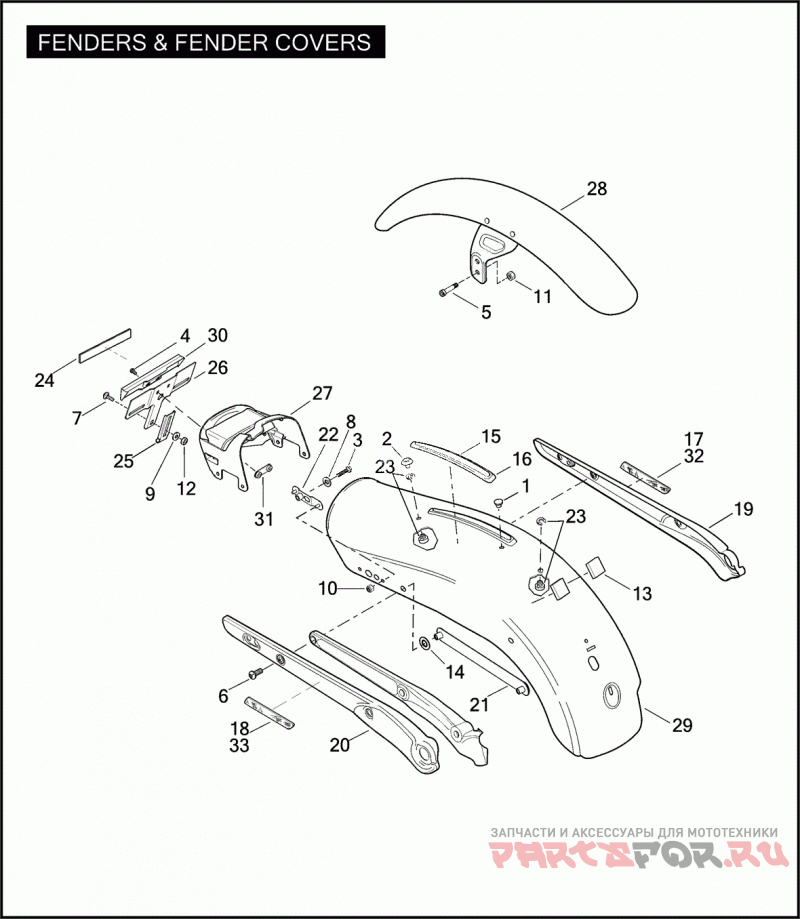

FENDERS & FENDER COVERS

Harley Davidson FXDFSE2 1PX8 CVO FAT BOB (2010)

Harley Davidson
#oem кодцена
1
732
Заглушка
2
762
PLUG (CHROME)
3
2240
SCREW .312-18 UNC-2A
4
2563
SCREW NO. 10-24 X 5/8 TORX BUTTON HD.
5
3201WA
SCREW 5/16-18 X 1-1/4 KNURLED HD.
6
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
7
5403B
BOLT 1/4-20 X 3/8 CARRIAGE
8
6016
WASHER 11/32 X 11/16 X 1/16
9
6110
WASHER 9/32 X 5/8 X 1/16
10
7354
LOCKNUT 1/4-20 UNC FLANGE
11
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
12
7792
NUT 1/4-20 X 1/4 (GRADE 2)
13
11576
CUSHION FENDER
14
11928
Проставка
15
51760-10
TRIM PILLION MOUNT (RUBBER)
16
51761-10
TRIM PILLION MOUNT (CHROME)
17
59287-92
REFLECTOR RIGHT (RED)
18
59288-92
REFLECTOR LEFT (RED)
19
59443-10
COVER LEFT
20
59444-10
COVER RIGHT
21
59484-06
BRACKET MOUNT
22
59551-06A
BRACKET EXTENSION MOUNT
23
59768-97
FENDER SEAT NUT KIT
24
59988-72A
Отражатель
25
60001-55
CLAMP LICENSE PLATE
26
60082-05
BRACKET LICENSE PLATE
27
60205-09
BRACKET TAIL LAMP/LICENSE PLATE
28
60214-10DEP
FENDER FRONT (BLACK DENIM)
28
60214-10DES
FENDER FRONT (GLOSS BLUE)
28
60214-10DEV
FENDER FRONT (SATIN PEWTER)
29
60218-10DEP
FENDER REAR (BLACK DENIM)
29
60218-10DES
FENDER REAR (GLOSS BLUE)
29
60218-10DEV
FENDER REAR (SATIN PEWTER)
30
68418-07
BRACKET REFLECTOR
31
68442-07
PLATE NUT
32
59289-92
REFLECTOR RIGHT (AMBER) (HDI)
33
59290-92
REFLECTOR LEFT (AMBER) (HDI)
