INSTRUMENTS - FXD для мотоциклов Harley Davidson FXD 1GM4 DYNA SUPER GLIDE (2010) (2010)

Москва и регионы России

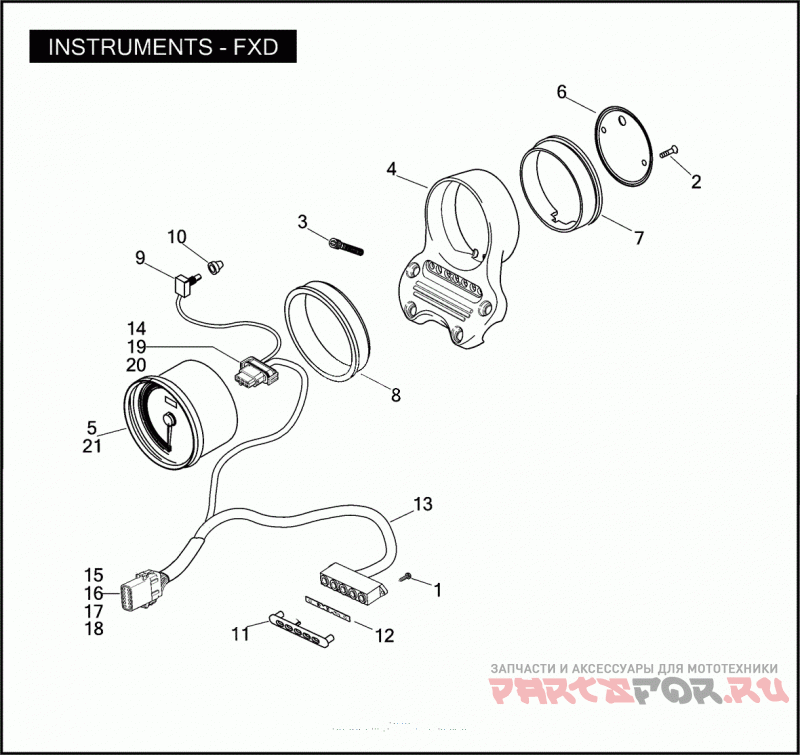

INSTRUMENTS - FXD

Harley Davidson FXD 1GM4 DYNA SUPER GLIDE (2010)

INSTRUMENTS - FXD

#

oem код

название

цена

1

SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING

SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING

2

SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH

SCREW NO. 8-32 X 3/8 SOCKET COUNTERSINK HD., W/LOCKPATCH

3

SCREW 5/16-18 X 1-1/4 KNURLED HD.

SCREW 5/16-18 X 1-1/4 KNURLED HD.

4

BRACKET SPEEDOMETER (BLACK WRINKLE)

BRACKET SPEEDOMETER (BLACK WRINKLE)

5

SPEEDOMETER MPH

SPEEDOMETER MPH

6

COVER SPEEDOMETER BACK (BLACK W/ STAINLESS STEEL RING)

COVER SPEEDOMETER BACK (BLACK W/ STAINLESS STEEL RING)

7

CUSHION REAR

CUSHION REAR

8

GASKET FRONT

GASKET FRONT

9

SWITCH RESET

SWITCH RESET

10

BOOT RESET SWITCH

BOOT RESET SWITCH

13

HARNESS ASSEMBLY INSTRUMENTS

HARNESS ASSEMBLY INSTRUMENTS

14

SEAL PIN

SEAL PIN

15

HOUSING 12-WAY SOCKET (BLACK)

HOUSING 12-WAY SOCKET (BLACK)

16

SECONDARY LOCK 12-WAY SOCKET

SECONDARY LOCK 12-WAY SOCKET

17

TERMINAL SOCKET

TERMINAL SOCKET

18

TERMINAL SOCKET

TERMINAL SOCKET

19

TERMINAL SOCKET, #20 AWG

TERMINAL SOCKET, #20 AWG

20

SECONDARY LOCK 12-WAY SOCKET

SECONDARY LOCK 12-WAY SOCKET

21

SPEEDOMETER KPH (HDI, CANADA, AUSTRALIA, JAPAN)

SPEEDOMETER KPH (HDI, CANADA, AUSTRALIA, JAPAN)

21

SPEEDOMETER DUAL MPH/KPH (ENGLAND)

SPEEDOMETER DUAL MPH/KPH (ENGLAND)
