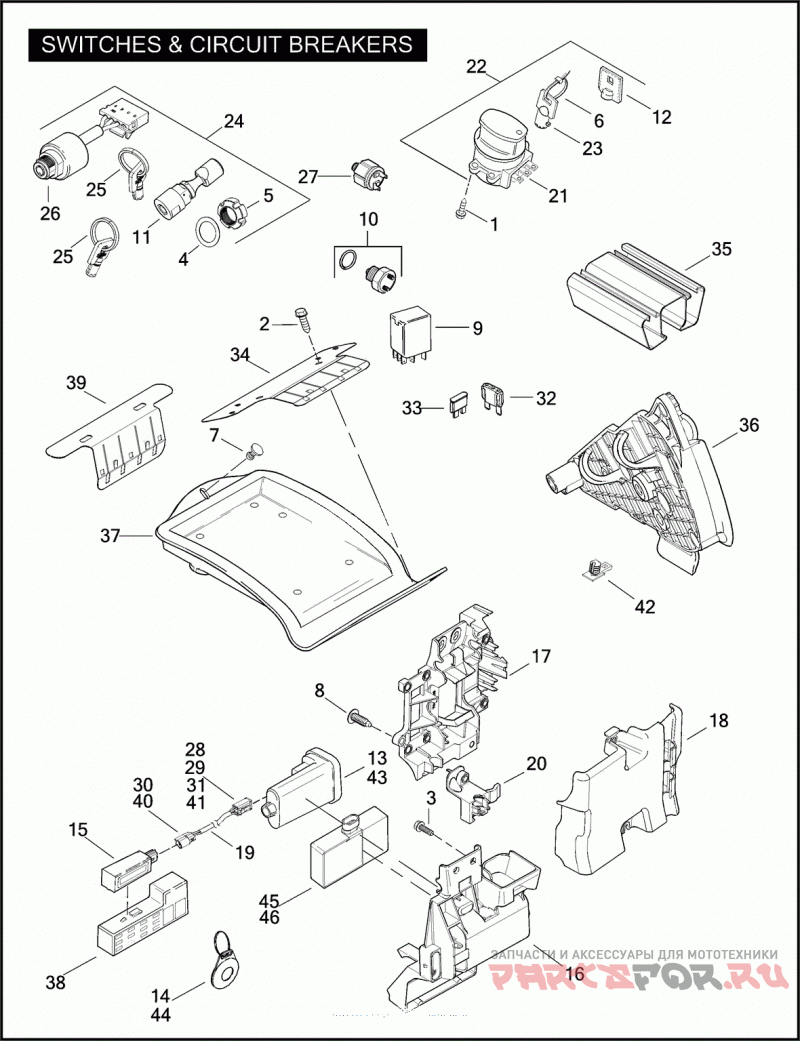

SWITCHES & CIRCUIT BREAKERS

Harley Davidson FXCWC 1JK5 ROCKER C (2010)

Harley Davidson
#oem кодцена
1
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
2
3391
SCREW 1/4-20 X 7/16 HEX FLANGE HD.
3
4867
SCREW HEX HD., SOCKET
4
6634
WASHER .765 X 1.09 X .02 LOCKHEAD
5
7305
NUT 3/4 X 24
6
10065
CABLE STRAP
8
11783
PLUG PUSH-IN
9
31522-00C
RELAY STARTER
10
33926-06B
SWITCH NEUTRAL INDICATOR
11
45680-90
FORK LOCK
12
61081-92
COVER KEY HEAD SET
13
68921-07
MODULE TURN SIGNAL CANCELLER
13
69976-08
MODULE SECURITY SYSTEM
14
68926-07
REMOTE CONTROL FOB
15
68956-07
MODULE ANTENNA SECURITY
17
70478-08
BRACKET ELECTRICAL
18
70387-08
COVER ELECTRICAL COMPARTMENT
19
70617-07
HARNESS HANDS-FREE, W/ 72134-94GY, 72154-94, 72191-94, 72195-94, 72720-07 & 72721-07
20
70678-08
BRACKET VENT VALVE
24
71792-08
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH & FORK LOCK
25
71793-08
KEY BLANK, W/ CHROME RING (SPECIFY KEY CODE)
26
71794-08
SWITCH IGNITION (SPECIFY KEY CODE)
27
72023-51E
SWITCH KIT stop lamp
28
72114-94BK
HOUSING 4-WAY SOCKET (BLACK)
29
72154-94
SECONDARY LOCK 4-WAY SOCKET (GRAY)
30
72191-94
TERMINAL SOCKET, #16-18 AWG
31
72195-94
SEAL PIN
32
72314-01
MAXI-FUSE 40 AMP
33
72330-95
FUSE 15 AMP
35
72374-00
WIRE TROUGH
36
72380-07
BRACKET ELECTRICAL CONNECTORS (LOCATED BEHIND STEERING HEAD)
38
72564-08
COVER FUSE BLOCK
39
72565-08
BRACKET FUSE BLOCK
40
72720-07
HOUSING 2-WAY SOCKET
41
72721-07
TERMINAL SOCKET, #18-20 AWG
42
73213-07
RETAINER CHRISTMAS TREE
43
68923-07
MODULE SECURITY SYSTEM (JAPAN)
43
69976-08
MODULE SECURITY SYSTEM (HDI)
44
68939-00
REMOTE CONTROL FOB (JAPAN)
45
68958-07C
SIREN FOR SIREN VEHICLES (HDI)
46
69309-10
BATTERY REPLACEMENT KIT SIREN (HDI)
