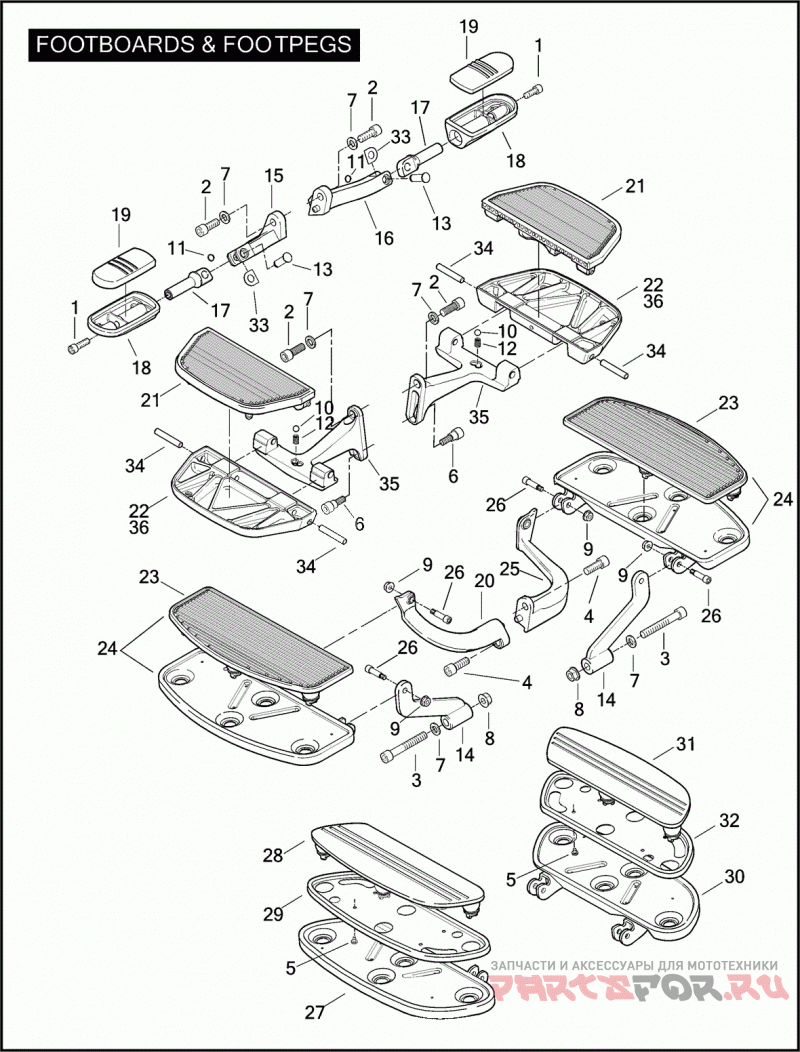

FOOTBOARDS & FOOTPEGS

Harley Davidson FLTRX 1KH4 ROAD GLIDE CUSTOM (2010)

Harley Davidson
#oem кодцена
1
2708A
SCREW 5/16-18 X 1 SOCKET HD.
2
3143
SCREW 3/8-16 X 1 HEX SOCKET HD., W/LOCK PATCH
3
4032A
SCREW 3/8-16 X 2-1/2 SOCKET HD.
4
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
5
4911
SCREW NO. 8-18 X 1/4 CROSS RECESS PAN HD.
7
7038
LOCKWASHER 3/8
8
7601
LOCKNUT 3/8-16 FLANGE
9
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
11304
RING RETAINING, PASSENGER FOOTPEG SUPPORT
13
45041-01A
CLEVIS PIN PASSENGER FOOTPEG SUPPORT
14
47365-09
BRACKET FRONT FOOTBOARD
15
49015-04A
SUPPORT RIGHT PASSENGER FOOTPEG (CHROME)
16
49036-04A
SUPPORT LEFT PASSENGER FOOTPEG (CHROME)
17
50208-04
MOUNT PASSENGER FOOTPEG
18
50345-04
FOOTPEG PASSENGER
19
50350-04
PAD PASSENGER FOOTPEG
20
50518-09
BRACKET RIGHT REAR
25
50622-09A
BRACKET LEFT REAR
25
50631-04
FOOTBOARD KIT RIDER (LEFT & RIGHT-HAND) ASSEMBLIES (NOT ILLUSTRATED), W/ 7716 & 50635-82A
26
50674-05
SHOULDER BOLT FOOTBOARD
27
50683-04
FOOTBOARD BOTTOM ASSEMBLY (RIGHT-HAND)
28
50684-04
RUBBER PAD FOOTBOARD (RIGHT-HAND)
29
50685-04
TOP PLATE FOOTBOARD (RIGHT-HAND)
30
50688-04
FOOTBOARD BOTTOM ASSEMBLY (LEFT-HAND)
31
50689-04
RUBBER PAD FOOTBOARD (LEFT-HAND)
32
50690-04
TOP PLATE FOOTBOARD (LEFT-HAND)
33
50912-72
SPRING WASHER PASSENGER FOOTPEG
