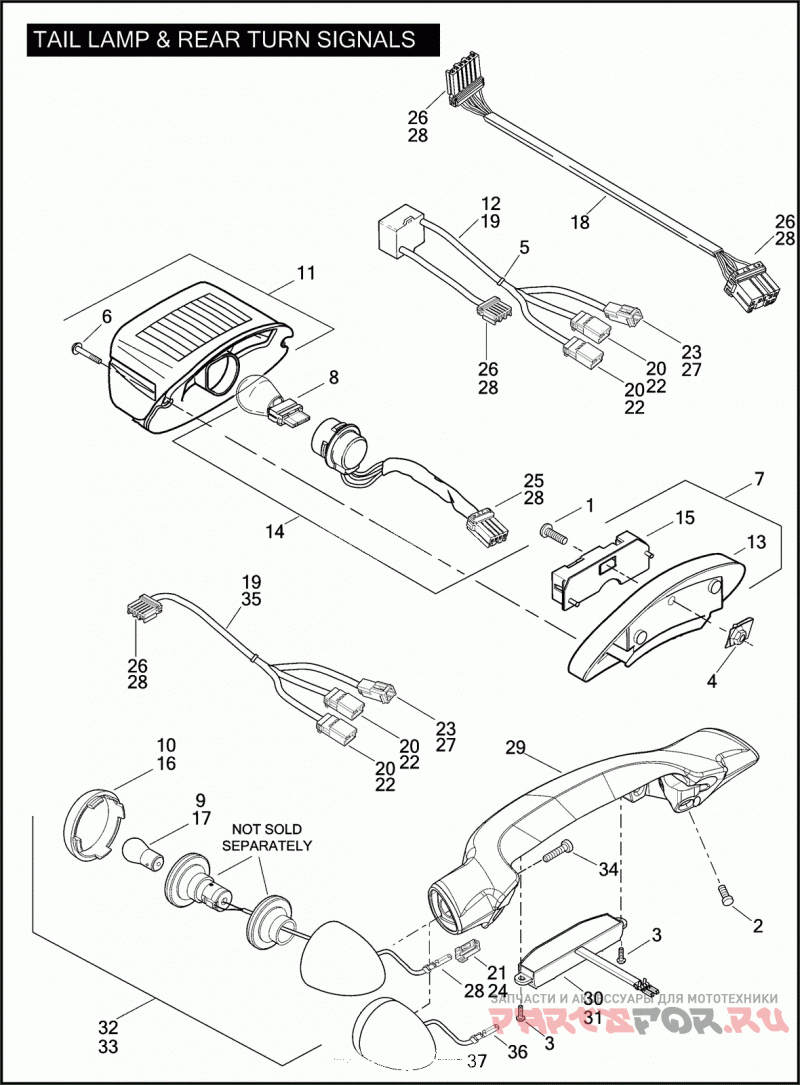

TAIL LAMP & REAR TURN SIGNALS

Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010)

Harley Davidson
#oem кодцена
1
3022A
SCREW 1/4-20 X 5/8 SOCKET FILLISTER HD., W/LOCKPATCH
2
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
3
4628
SCREW #6-32 X 5/16 SOCKET BUTTON HD.
4
7964
NUT STAKED J-TYPE, 1/4-20
5
10065
CABLE STRAP
6
68026-99
SCREW NO. 8-32 X 1 PHILLIPS PAN HD. (STAINLESS)
7
68066-99A
BASE ASSEMBLY TAIL LIGHT, CHROME, W/ 68296-99A & 68830-99A (CANADA)
8
68167-04
BULB WEDGE BASE (CANADA)
9
68168-89A
BULB TURN SIGNALS (CLEAR)
10
68217-00
LENS (RED)
11
68245-03
TAIL LAMP (CANADA)
12
68278-07
CONVERTER MODULE TAIL/TURN SIGNAL
13
68296-99A
TAIL LIGHT BASE CHROME
14
68370-03A
SOCKET ASSEMBLY W/ 68167-04, 73154-96BK & 73191-96 (CANADA)
15
68830-99A
CIRCUIT BOARD & COVER
16
69325-02
LENS (SMOKED) (CANADA)
17
69330-02
BULB TURN SIGNAL (AMBER) (CANADA)
18
70445-10
HARNESS REAR LAMPS, W/ 70523-06, 73156-96BK & 73191-96 (CANADA)
19
69200018
CONDUIT HARNESS
20
72904-01BK
HOUSING 4-WAY PIN
21
72914-01BK
HOUSING 4-WAY SOCKET, (BLACK)
22
72990-01
TERMINAL PIN
23
73102-96BK
HOUSING PIN
24
73152-96BK
HOUSING 2-PLACE SOCKET (CANADA)
25
73154-96BK
HOUSING 4-WAY SOCKET (CANADA)
26
73156-96BK
HOUSING 6-PLACE SOCKET (CANADA)
27
73190-96
TERMINAL PIN, #16-20 AWG
28
73191-96
TERMINAL SOCKET, #16-20 AWG (DOMESTIC & CANADA) (2-CANADA)
29
73322-10
LIGHTBAR LICENSE TURN SIGNAL
30
73360-10
LIGHT ASSEMBLY W/ LENS, LICENSE PLATE (CANADA)
31
73361-10
LIGHT ASSEMBLY W/ LENS, LICENSE PLATE
32
73363-10
TURN SIGNAL (DOMESTIC) (CHROME)
33
73365-10
TURN SIGNAL (CANADA)
34
90563-94
SCREW 5/16-18X2
35
68955-08
HARNESS REAR LAMPS (ENGLAND, HDI)
36
72991-01
TERMINAL SOCKET, #18-22 AWG (ENGLAND, HDI)
37
73366-10
TURN SIGNAL (ENGLAND, HDI)
