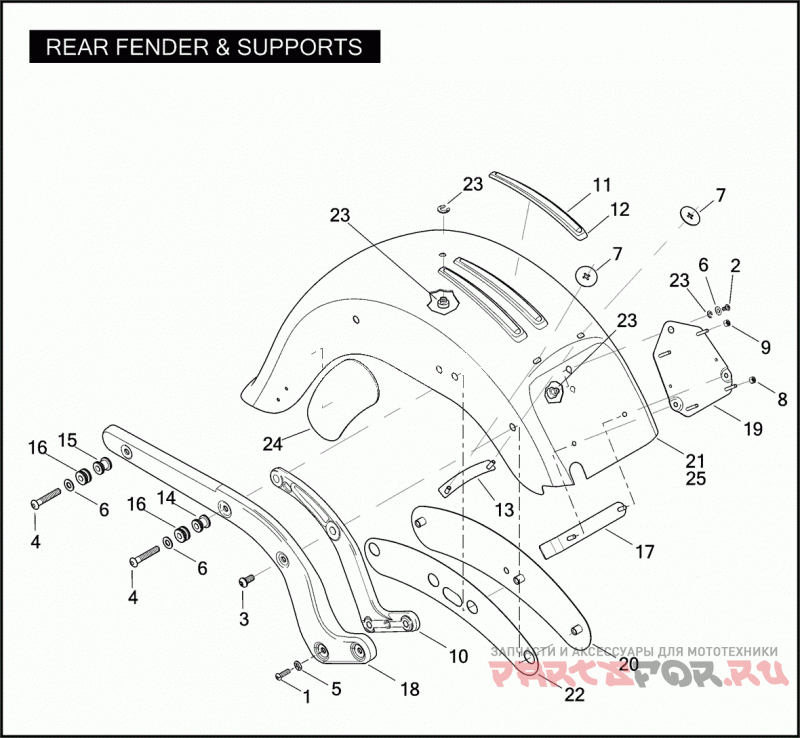

REAR FENDER & SUPPORTS

Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010)

Harley Davidson
#oem кодцена
1
3056
SCREW 3/8-16 X 1-1/2 TORX BUTTON HD.
2
3767B
BOLT 1/4-20 X 5/8 HEX HD. (GRADE 5)
3
4266A
SCREW 3/8-16 X 7/8 BUTTON HD. (GRADE 5)
4
4997
SCREW 3/8-16 X 2.25 TORX BUTTON HD.
5
6400HB
WASHER 5/16 X 13/16 X 3/32
6
6701
WASHER 3/8 X 13/16 X 1/16
7
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
8
7792
NUT 1/4-20 X 1/4 (GRADE 2)
9
8047
NUT NO. 10-32 X 7/32 FLANGE LOCK
10
47809-08BHP
SUPPORT LEFT (CHROME)
10
47813-08BHP
SUPPORT RIGHT (CHROME)
11
51760-10
TRIM PILLION MOUNT (RUBBER)
12
51761-10
TRIM PILLION MOUNT (CHROME)
13
51803-07
STUD PLATE ASSEMBLY
14
52300339
DOCKING POINT FRONT
15
53684-96A
DOCKING POINT REAR
16
52300338
DOCKING POINT MINI
17
59438-00
BRACKET ASSEMBLY
18
59457-10
COVER ASSEMBLY LEFT HAND FENDER SUPPORT (CHROME)
18
59458-10
COVER ASSEMBLY RIGHT HAND FENDER SUPPORT (CHROME)
19
59543-01
BRACKET ASSEMBLY ECM
20
59560-10
BRACKET INNER, LEFT
20
59633-10
BRACKET INNER, RIGHT
21
59641-10DDR
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (INFERNO ORANGE)
21
59641-10DDS
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (ABYSS BLUE)
21
59641-10DDT
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (AUTUMN HAZE)
22
59646-10
ADHESIVE
23
59768-97
FENDER SEAT NUT KIT
24
59676-10
ADHESIVE LEFT, REAR FENDER (ENGLAND, HDI)
24
59677-10
ADHESIVE RIGHT, REAR FENDER (ENGLAND, HDI)
25
60176-10DDR
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (INFERNO ORANGE) (CANADA)
25
60176-10DDS
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (ABYSS BLUE) (CANADA)
25
60176-10DDT
FENDER ASSEMBLY W/ PILLION MOUNT TRIM (AUTUMN HAZE) (CANADA)
