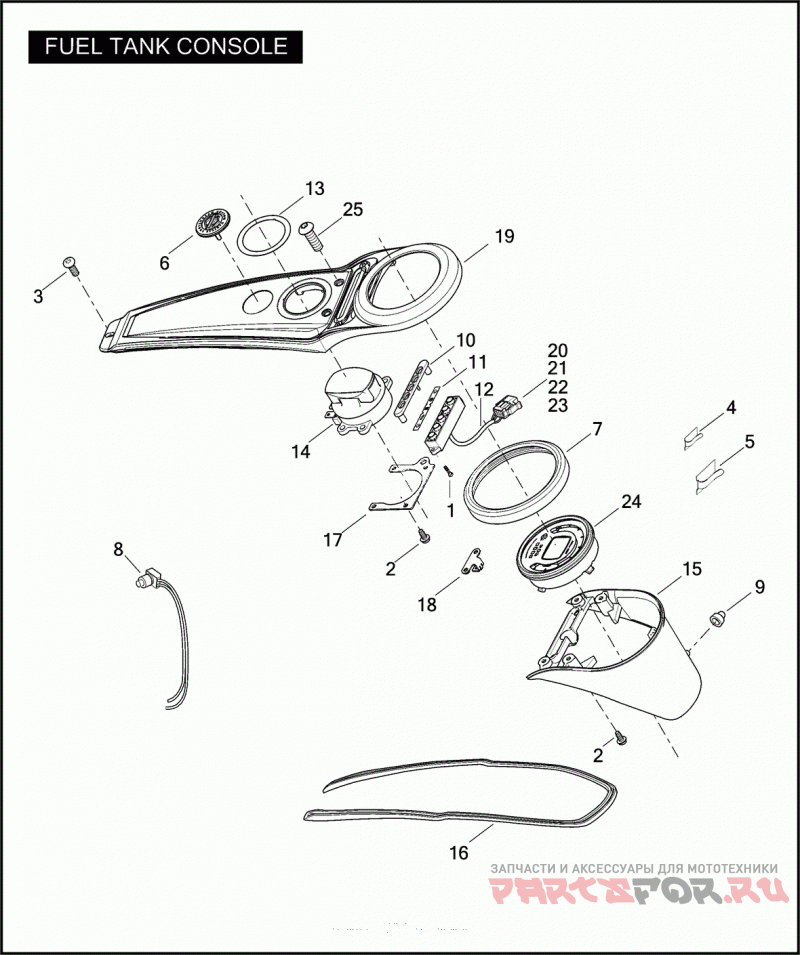

FUEL TANK CONSOLE

Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010)

Harley Davidson
#oem кодцена
1
2325
SCREW NO. 6 X 3/4 CROSS RECESS PAN HD., SELF-TAPPING
2
2501A
SCREW NO. 8-32 X 3/8 HEX HD., SELF-TAPPING
3
4620
SCREW NO. 10-24 X 5/8 HEX SOCKET BUTTON HD.
4
10102
CLIP ADHESIVE, SMALL
5
10103
CLIP ADHESIVE, LARGE
6
53463-06
MEDALLION
7
67223-00A
SEAL SPEEDOMETER
8
67488-04
SWITCH ASSEMBLY ODOMETER RESET
9
67880-94
BOOT RESET SWITCH
12
70724-10
HARNESS ASSEMBLY W/ 74118-98BK, 74158-98, 74193-98 & 74195-98
13
71307-94A
NAMEPLATE IGNITION SWITCH
14
71313-96A
IGNITION SWITCH (SPECIFY KEY CODE)
14
71450-04
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH & FORK LOCK (DOES NOT INCLUDE CVO GOLD KEY)
15
71758-10DH
CONSOLE FUEL TANK, BOTTOM (VIVID BLACK)
15
71758-10BYW
CONSOLE FUEL TANK, BOTTOM (AUTUMN HAZE)
15
71758-10DDV
CONSOLE FUEL TANK, BOTTOM (SAPPHIRE)
16
71759-10
TRIM INSTRUMENT PANEL
17
71766-08
BRACKET IGNITION SWITCH
18
71786-10
NUT PLATE ASSEMBLY CONSOLE MOUNT
19
71815-10
CONSOLE FUEL TANK, TOP (CHROME)
20
74118-98BK
SOCKET HOUSING 8-WAY (BLACK)
21
74158-98
SECONDARY LOCK 8-WAY SOCKET
22
74193-98
TERMINAL SOCKET, SOLID
23
74195-98
SEAL PIN
24
74717-10
KIT-SPEEDOMETER (MPH/KPH)
25
53202-04
SCREW 1/4-20 X 3/4 CAP INTERNAL HEX
