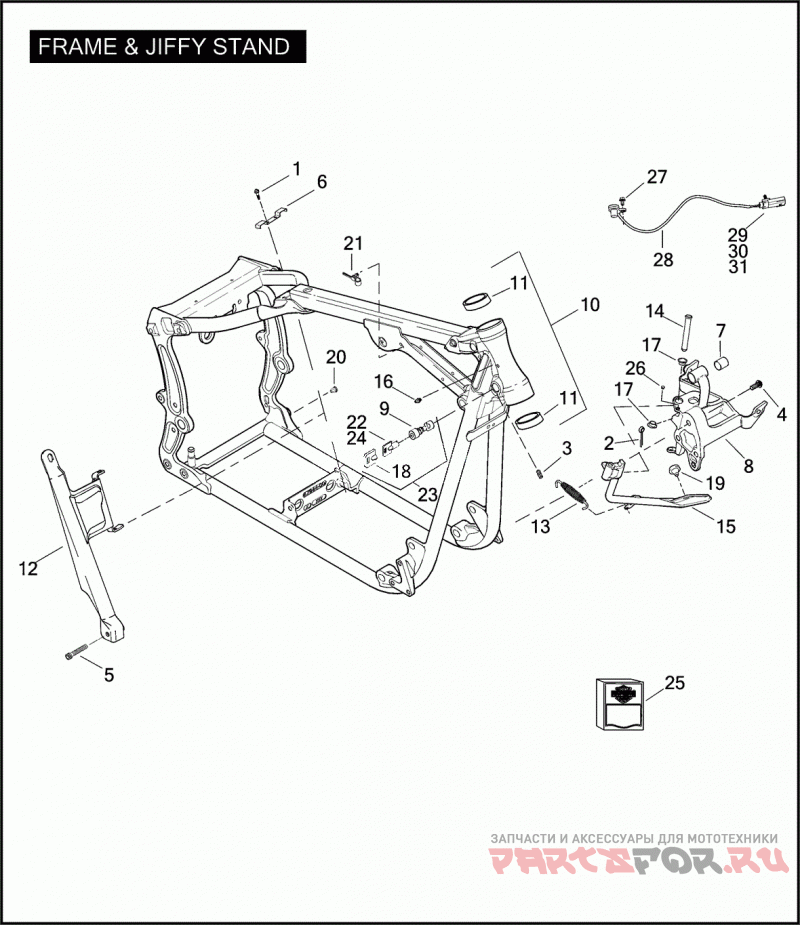

FRAME & JIFFY STAND

Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010)

Harley Davidson
#oem кодцена
1
939
SCREW 1/4-20 X 1 SELF-TAPPING, W/WASHER (GRADE 2)
2
520W
Шплинт
3
3233
SCREW 1/4-28 X 1/4 SOCKET HD.
4
4512A
SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)
5
4813A
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH
6
10193
WIRE CLAMP
7
33708-94
BEARING SLEEVE
8
33670-07
BRACKET ASSEMBLY JIFFY STAND, SHIFT LEVER & FOOTREST (CHROME) W/ 33708-94
9
45680-90
FORK LOCK (SPECIFY KEY CODE)
10
47173-10CCR
FRAME W/ 50972-75 (2) (ABYSS BLUE)
10
47173-10COZ
FRAME W/ 50972-75 (2) (CRIMSON RED SUNGLO)
10
47173-08CRO
FRAME W/ 50972-75 (2) (INFERNO ORANGE)
11
48315-60
BEARING CUP
12
48885-10
POST ASSEMBLY SEAT (GRANITE)
13
49725-07A
SPRING jiffy stand
14
50003-89B
CLEVIS PIN
15
49768-09A
LEG JIFFY STAND (CHROME)
16
83459-09
FITTING lubrication
17
53176-08
Втулка
18
61081-92
COVER KEY HEAD SET
19
62123-07
Амортизатор ударов
20
68446-00
Заглушка
21
70446-08
RETAINER THROTTLE CABLE
22
71031-04
KEY KIT DECO
23
71450-04
LOCKSET COMPLETE, W/ KEYS, IGNITION SWITCH & FORK LOCK (DOES NOT INCLUDE CVO GOLD KEY)
25
91625-04
COVER KIT MOTORCYCLE
26
94090-91T
PLUG DOMESTIC ONLY
27
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
28
49716-08A
JIFFY STAND SENSOR W/ 72169-07, 72511-07BK, 73213-07 (HDI, ENGLAND)
29
72169-07
TERMINAL PIN #16-20 AWG (HDI, ENGLAND)
30
72511-07BK
HOUSING 3-WAY, PIN (HDI, ENGLAND)
31
73213-07
RETAINER X-MAS TREE CLIP (HDI, ENGLAND)
