FOOTRESTS & FOOTBOARDS для мотоциклов Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010) (2010)

Москва и регионы России

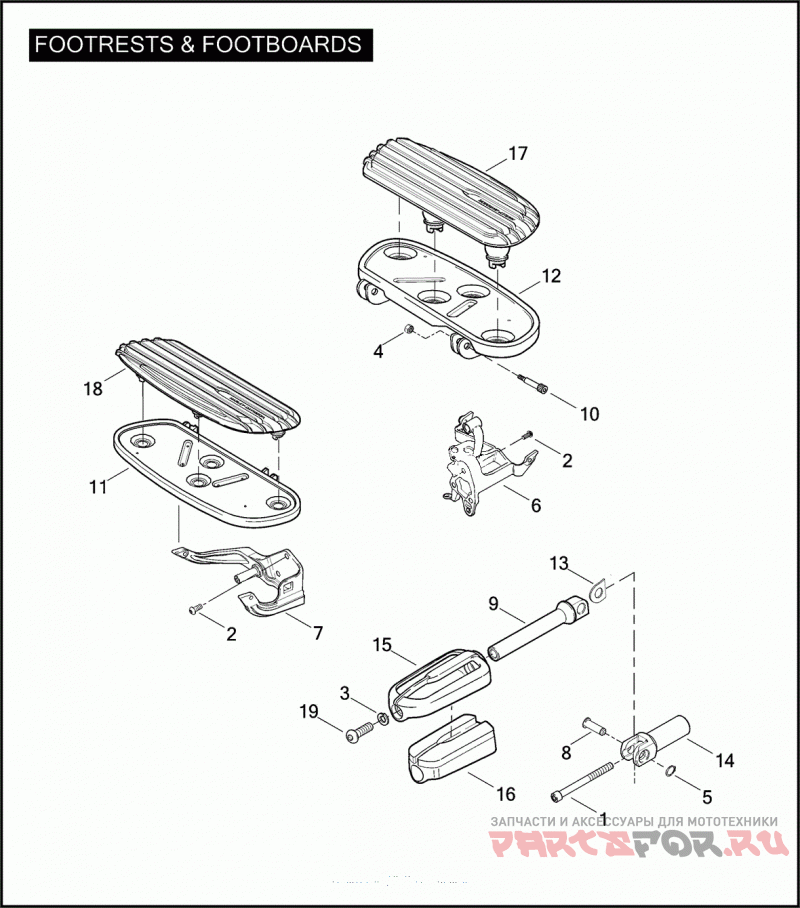

FOOTRESTS & FOOTBOARDS

Harley Davidson FLSTSE 1PY9 CVO SOFTAIL CONVERTIBLE (2010)

FOOTRESTS & FOOTBOARDS

#

oem код

название

цена

1

SCREW 3/8-16 X 2-3/4 TORX HD. (GRADE 8)

SCREW 3/8-16 X 2-3/4 TORX HD. (GRADE 8)

2

SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)

SCREW 3/8-16 X 1 TORX RECESSED BUTTON HD. (GRADE 8)

3

LOCKWASHER 5/16 HIGH COLLAR

LOCKWASHER 5/16 HIGH COLLAR

4

LOCKNUT 1/4-20 X 7/16 FLANGE

LOCKNUT 1/4-20 X 7/16 FLANGE

5

Стопорное кольцо

Стопорное кольцо

6

BRACKET ASSEMBLY LEFT SIDE

BRACKET ASSEMBLY LEFT SIDE

7

BRACKET ASSEMBLY RIGHT SIDE

BRACKET ASSEMBLY RIGHT SIDE

8

PIN CLEVIS

PIN CLEVIS

9

MOUNT FOOTPEG

MOUNT FOOTPEG

10

BOLT FOOTBOARD HINGE

BOLT FOOTBOARD HINGE

11

BOTTOM ASSEMBLY RIGHT

BOTTOM ASSEMBLY RIGHT

12

BOTTOM ASSEMBLY LEFT

BOTTOM ASSEMBLY LEFT

13

Пружинная шайба

Пружинная шайба

14

SUPPORT PASSENGER FOOTREST

SUPPORT PASSENGER FOOTREST

15

FOOTPEG BODY

FOOTPEG BODY

16

FOOTPEG TREAD

FOOTPEG TREAD

17

FOOTBOARD ASSEMBLY RIDER, LEFT

FOOTBOARD ASSEMBLY RIDER, LEFT

18

INSERT ASSEMBLY, right, rider

INSERT ASSEMBLY, right, rider

19

SCREW 5/16-18 X 1.0 SOCKET BUTTON HD.

SCREW 5/16-18 X 1.0 SOCKET BUTTON HD.

20

PAD RUBBER (NOT ILLUSTRATED) (HDI)

PAD RUBBER (NOT ILLUSTRATED) (HDI)
