Жгут проводов главный

Harley Davidson FLHXXX 1MBM STREET GLIDE TRIKE (2010)

Жгут проводов главный

#

oem код

название

цена

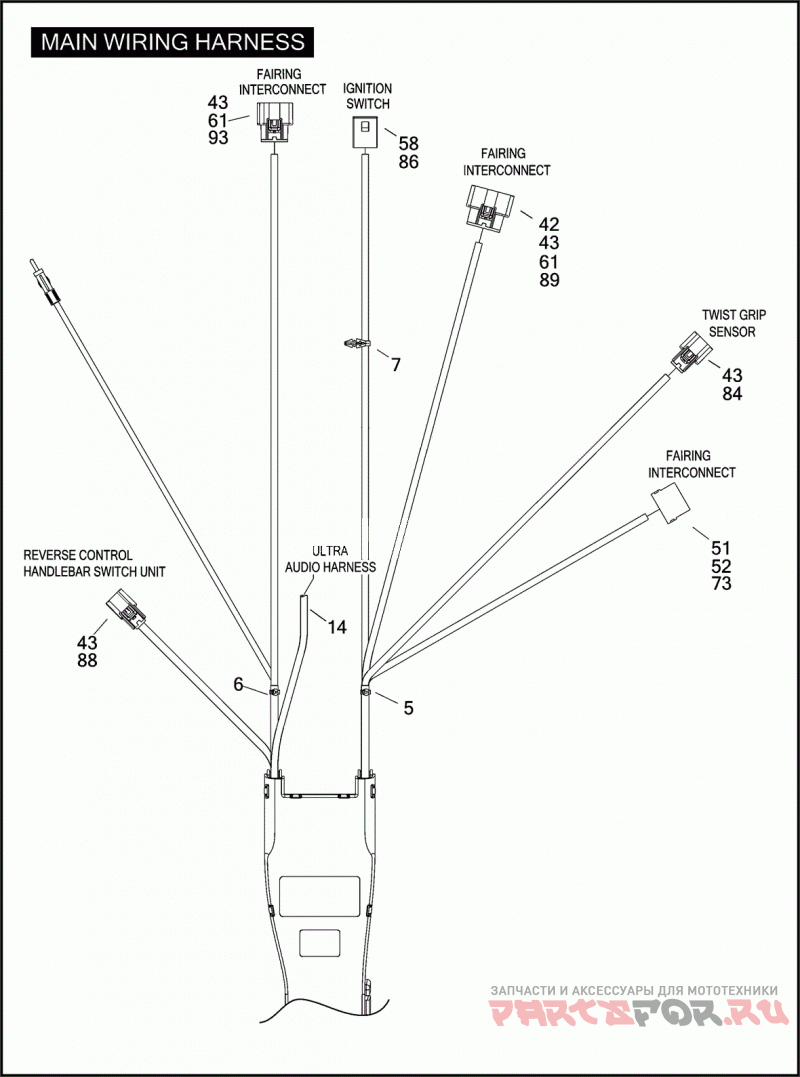

MAIN WIRING HARNESS

MAIN WIRING HARNESS

1

SCREW 5/16-18 X 1.0 SELF-TAPPING

SCREW 5/16-18 X 1.0 SELF-TAPPING

2

SEAL PIN

SEAL PIN

3

TERMINAL 1/4 IN. RING, 12 AWG

TERMINAL 1/4 IN. RING, 12 AWG

4

TERMINAL 1/4 IN. RING, 10-12 AWG

TERMINAL 1/4 IN. RING, 10-12 AWG

5

CABLE STRAP

CABLE STRAP

6

CABLE STRAP

CABLE STRAP

7

CABLE STRAP ROSEBUD MOUNT

CABLE STRAP ROSEBUD MOUNT

8

CLIP CONNECTOR

CLIP CONNECTOR

9

CABLE STRAP TREE MOUNT

CABLE STRAP TREE MOUNT

10

CABLE STRAP

CABLE STRAP

11

FASTENER PUSH-IN (BLACK)

FASTENER PUSH-IN (BLACK)

11

LABEL BATTERY WARNING (NOT SHOWN)

LABEL BATTERY WARNING (NOT SHOWN)

12

RELAY

RELAY

13

RELAY HIGH CURRENT

RELAY HIGH CURRENT

15

CADDY FUSE BLOCK

CADDY FUSE BLOCK

16

CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04

CABLE ASSEMBLY BATTERY POSITIVE TO STARTER, W/ 70578-89, 73304-04 & 73305-04

17

BOOT BATTERY POSITIVE

BOOT BATTERY POSITIVE

18

BOOT ENGINE TEMPERATURE SENSOR

BOOT ENGINE TEMPERATURE SENSOR

19

TRAY WIRE TROUGH

TRAY WIRE TROUGH

20

COVER WIRE TROUGH

COVER WIRE TROUGH

21

SOCKET HOUSING 2-WAY

SOCKET HOUSING 2-WAY

22

WIRE SEAL 16-20 AWG (YELLOW)

WIRE SEAL 16-20 AWG (YELLOW)

23

SOCKET TERMINAL 20-22 AWG

SOCKET TERMINAL 20-22 AWG

24

TERMINAL SOCKET, 16-20 AWG

TERMINAL SOCKET, 16-20 AWG

25

HOUSING 2-WAY

HOUSING 2-WAY
