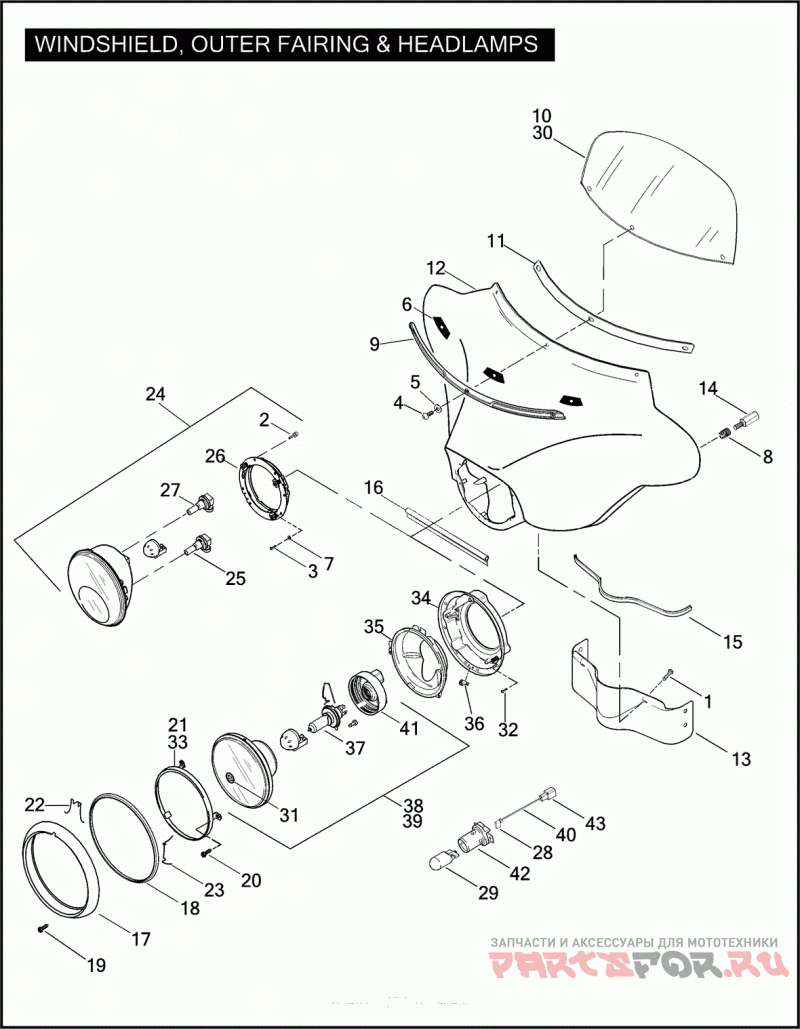

WINDSHIELD, OUTER FAIRING & HEADLAMPS

Harley Davidson FLHXSE 1PZ8 CVO STREET GLIDE (2010)

Harley Davidson
#oem кодцена
1
2446
SCREW 1/4-20 X 5/8 TORX SOCKET BUTTON HD.
2
3088
SCREW 1/4-20 X 1-1/2 SOCKET BUTTON HD. (CHROME)
3
4790
SCREW NO. 10-16 X 3/4 TORX HD., SELF-TAPPING
4
4976
SCREW 1/4-20 X 3/4 TORX SOCKET BUTTON HD., STAINLESS STEEL
5
6383
WASHER 17/64 X 1/2 X 1/16 STAINLESS STEEL
6
6549
PAD RUBBER
7
6717
WASHER NO. 6 X 3/8 X 3/64
8
16585-96
INSERT THREADED
9
57675-10
TRIM ASSEMBLY WINDSHIELD, W/ 6549
10
58207-04
WINDSHIELD SMOKED
11
58247-96
CUSHION TAPE WINDSHIELD MOUNTING
12
58236-96
FAIRING OUTER (PRIME)
12
58260-10DEH
FAIRING OUTER, (CANDY CONCORD)
12
58260-10DEK
FAIRING OUTER, (SPICED RUM)
12
58260-10DEM
FAIRING OUTER, (TEQUILA SUNRISE)
13
58694-10
SKIRT OUTER FAIRING (PRIME)
13
58208-10DEH
SKIRT OUTER FAIRING (CANDY CONCORD)
13
58208-10DEK
SKIRT OUTER FAIRING (SPICED RUM)
13
58208-10DEM
SKIRT OUTER FAIRING (TEQUILA SUNRISE)
14
58949-96
NUT EXTENSION
15
62786-96
TRIM STRIP SKIRT
16
62787-96
SEAL FAIRING SKIRT
17
67712-83B
DOOR chrome
18
67716-60C
GASKET headlamp door (used w/ 67702-81A)
19
67718-60A
SCREW NO. 8-14 X 1/2 PHILLIPS HD. SELF-TAPPING
20
67721-48
SCREW HEADLAMP RETAINER RING
21
67001-08
RETAINING RING KIT HEADLAMP, W/ 67721-48, 67726-08, & 67732-48 (DOMESTIC)
22
67778-60A
SPRING TOP
23
67780-60A
SPRING BOTTOM
24
67700032
HALOGEN HEADLAMP KIT 7 in., w/ 6717, 10006, 68124-04A, 73271-11 & 73272-11 (Domestic & Canada) (replaces 67894-04A)
25
68096-04
BULB HIGH BEAM HALOGEN
26
68124-04B
MOUNTING RING ASSEMBLY W/ 3088
27
68881-01
BULB LOW BEAM HALOGEN
27
70265-07
HARNESS ASSEMBLY W/ HOUSING SOCKET, SOCKET TERMINAK, &SEAL WIRE (NOT ILLUSTRATED)
28
9898
TERMINAL FEMALE FLAG, 14-16 GAUGE (ENGLAND, HDI, JAPAN)
29
53436-97
BULB POSITION LAMP (ENGLAND, HDI, JAPAN)
30
58409-06
WINDSHIELD CLEAR (ENGLAND, HDI, JAPAN)
31
67668-05
MEDALLION LENS (ENGLAND, HDI, JAPAN)
32
67724-71
ADJUSTING SCREW HEADLAMP (ENGLAND, HDI, JAPAN)
33
67726-08
RETAINING RING HEADLAMP (ENGLAND, HDI, JAPAN)
34
67728-02A
BUCKET ASSEMBLY W/ 67724-71 & 67782-60A (ENGLAND, HDI, JAPAN)
35
67732-08
MOUNTING RING HEADLAMP (ENGLAND, HDI, JAPAN)
36
67782-60A
BRACKET DOOR (ENGLAND, HDI, JAPAN)
37
68329-03
BULB HB2/H4 (ENGLAND, JAPAN)
38
68344-05A
REFLECTOR ASSEMBLY LEFT DIP (AUSTRALIA, ENGLAND, JAPAN)
39
68345-05A
REFLECTOR ASSEMBLY RIGHT DIP (HDI, ASIA-PACIFIC)
40
68359-05
HARNESS JUMPER POSITION BULB, W/ 9898 & 72253-94 (ENGLAND, HDI, JAPAN)
41
68380-05
BOOT (ENGLAND, HDI, JAPAN)
42
68653-05
SOCKET POSITION LAMP (ENGLAND, HDI, JAPAN)
43
72253-94
TERMINAL 18-20 GA (ENGLAND, HDI, JAPAN)
