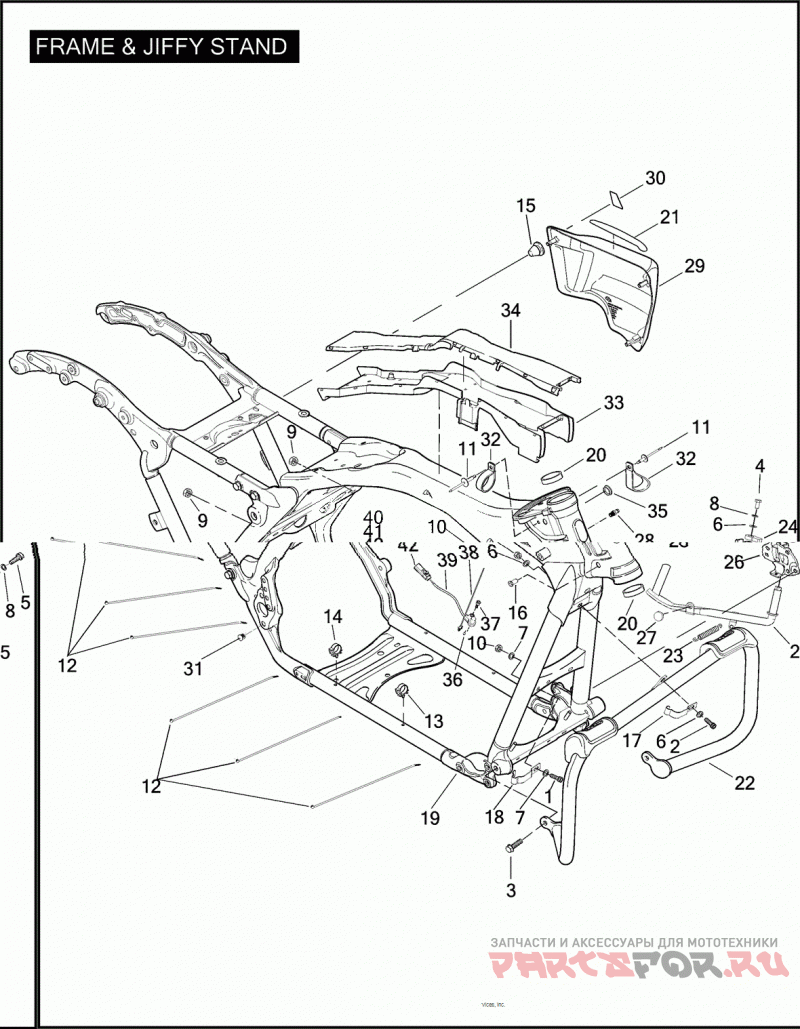

FRAME & JIFFY STAND

Harley Davidson FLHXSE 1PZ8 CVO STREET GLIDE (2010)

Harley Davidson
#oem кодцена
1
1001
Деталь SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
2708A
Деталь SCREW 5/16-18 X 1 SOCKET HD.
3
4924
Деталь SCREW 3/8-16 X 7/8 TORX BUTTON HD. (ZINC PLATE) (GRADE 5)
4
3987
Деталь BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
Деталь SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
6702
Деталь WASHER 5/16 X 11/16 X 1/16
7
6703
Деталь WASHER 1/4 X 5/8 X 1/16
8
7041
Деталь LOCKWASHER 5/16
9
7495
Деталь NUT M6 FLANGE
10
7688
Деталь NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
11
8483A
Деталь RIVET BLIND
12
10039
Деталь CABLE STRAP
13
10336
Деталь CLIP CONDUIT, ROSEBUD MOUNT
14
10394
Деталь CLIP CONDUIT, ROSEBUD MOUNT
15
11650
Деталь GROMMET SIDE COVER
16
11663
Деталь RIVNUT FLATHEAD, WITH ABS
17
38969-10
Деталь RETAINER CABLE, UPPER
18
38939-09C
Деталь KIT-CABLE,CLUTCH CNTRL,BRD'D/XL
19
47900-11BHP
Деталь FRAME main, w/ 48315-60 & 50972-75
20
48315-60
Деталь BEARING CUP
21
48419-04
Деталь WEAR PAD SIDE COVER - RIGHT (CLEAR)
21
48420-04
Деталь WEAR PAD SIDE COVER - LEFT (CLEAR)
22
49437-10
Деталь ENGINE GUARD KIT W/14148-86
23
49725-07A
Деталь SPRING jiffy stand
24
50015-74A
Деталь LEG STOP
25
50075-07A
Деталь LEG JIFFY STAND
26
50096-09
Деталь BRACKET JIFFY STAND LEG
27
50245-07
Деталь BUMPER JIFFY STAND LEG
28
83459-09
Деталь FITTING lubrication
29
66048-09A
Деталь SIDE COVER RIGHT (UNPAINTED)
29
66250-09
Деталь SIDE COVER LEFT (PRIME)
29
66612-10DEH
Деталь SIDE COVER LEFT (CANDY CONCORD)
29
66612-10DEK
Деталь SIDE COVER LEFT (SPICED RUM)
29
66612-10DEM
Деталь SIDE COVER LEFT (TEQUILA SUNRISE)
29
66613-10DEH
Деталь SIDE COVER RIGHT (CANDY CONCORD)
29
66613-10DEK
Деталь SIDE COVER RIGHT (SPICED RUM)
29
66613-10DEM
Деталь SIDE COVER RIGHT (TEQUILA SUNRISE)
30
66055-09
Деталь WEAR PAD (CLEAR)
31
68446-00
Заглушка
32
69318-02
Зажим
33
70980-09
Деталь TRAY WIRE TROUGH (MAIN HARNESS)
34
70981-09
Деталь COVER WIRE TROUGH W/ 15368-01A, (MAIN HARNESS)
35
90469-94
Деталь HOLE PLUG RIGHT UPPER
36
90520-07
Деталь HOLE PLUG JIFFY STAND
37
3594
Деталь SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
38
10177
Деталь CABLE STRAP TREE MOUNT, JIFFY STAND (ENGLAND, HDI)
39
50126-08A
Деталь SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07 (ENGLAND, HDI)
40
72169-07
Деталь TERMINAL PIN, 16-20 AWG
41
72511-07BK
Деталь HOUSING PIN, 3-WAY (BLACK)
42
73213-07
Деталь RETAINER XMAS TREE CLIP
