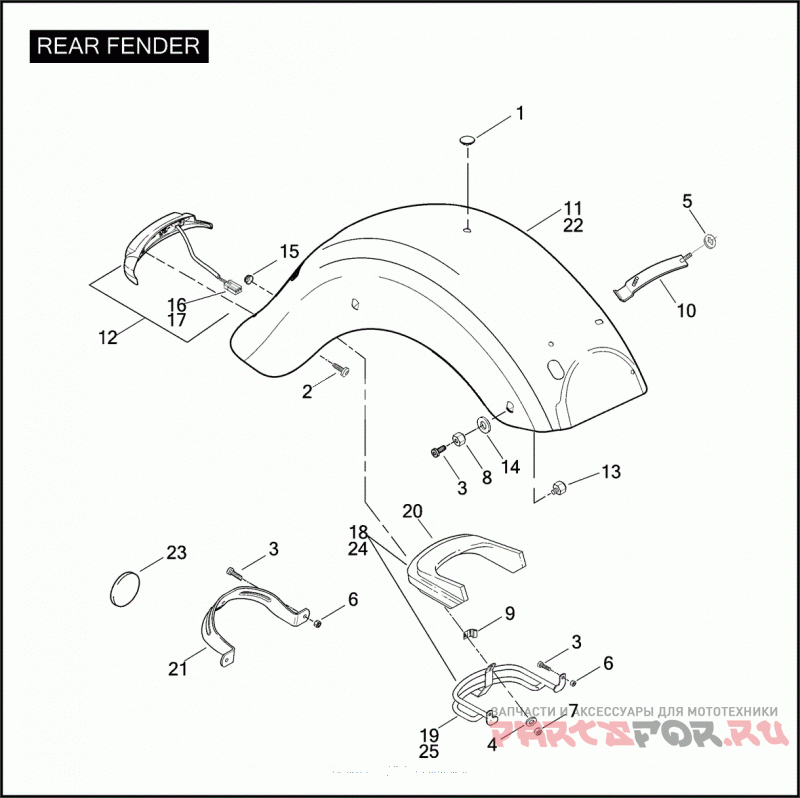

Задний бампер

Harley Davidson FLHTP 1FMM ELECTRA GLIDE STANDARD POLICE (2010)

Harley Davidson
#oem кодцена
1
761
Заглушка
2
3612
SCREW NO. 10-16 X 1/2 TORX PAN HD., SELF-TAPPING
3
3684
SCREW 5/16-18 X 1 TORX PAN HD.
4
6703
WASHER 1/4 X 5/8 X 1/16
5
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
6
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
7
7686
LOCKNUT 1/4-20 X 5/16 X 7/16
8
7880
NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)
9
10092
CLAMP (DOMESTIC)
10
59174-99
STUD PLATE
11
59579-09
FENDER REAR (PRIME) (DOMESTIC)
12
59672-09A
LAMP ASSEMBLY FENDER TIP, W/ 73153-96BK & 73191-96 (DOMESTIC)
13
59786-01
FENDER MOUNTING BOSS INNER
14
59788-01
FENDER MOUNTING WASHER
15
67266-94
GROMMET TURN SIGNAL
16
73153-96BK
SOCKET HOUSING 3-WAY
17
73191-96
TERMINAL SOCKET, 16-20 AWG
18
91013-09
REAR BUMPER ASSEMBLY W/ 91023-09 & 91123-09 (DOMESTIC)
19
91023-09
RAIL REAR BUMPER (DOMESTIC)
20
91123-09
BUMPER CUSHION REAR
21
91140-09
BRACKET SADDLEBAG TO FENDER SUPPORT
22
58702-09
FENDER REAR (PRIME) (HDI)
23
59581-05
BUMPER REAR FENDER (BLACK)
24
91049-09
REAR BUMPER ASSEMBLY W/ 91065-09 & 91123-09 (HDI)
25
91065-09
RAIL REAR BUMPER (HDI)
