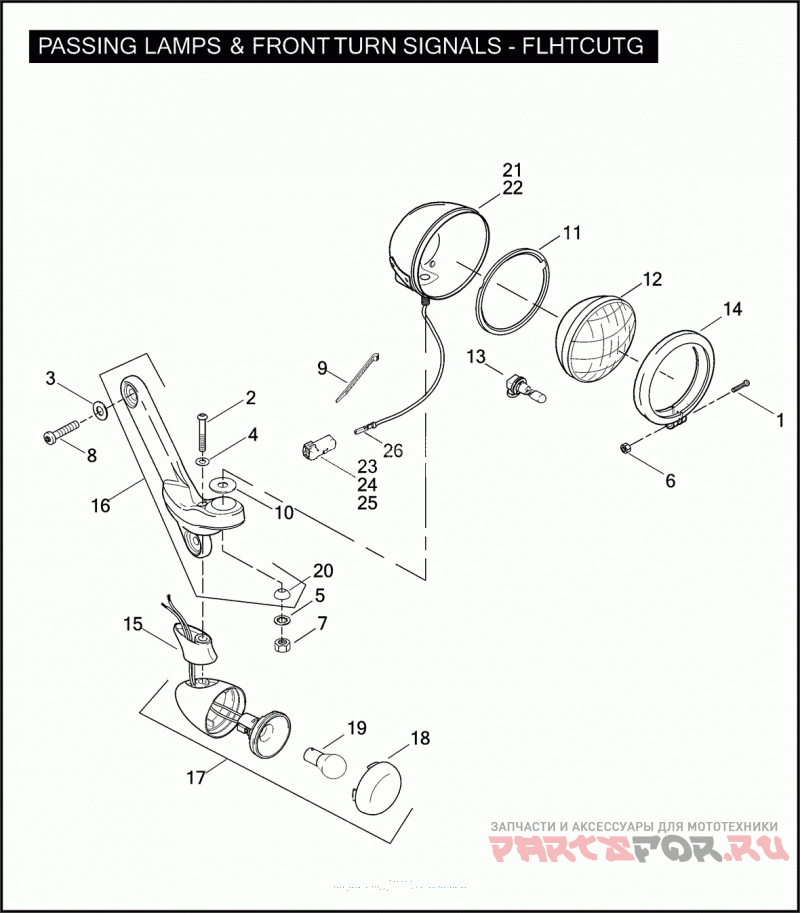

PASSING LAMPS & FRONT TURN SIGNALS - FLHTCUTG

Harley Davidson FLHTCUTG 1MAM TRI GLIDE ULTRA CLASSIC (2010)

Harley Davidson
#oem кодцена
1
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
2
4296
SCREW 5/16-18 X 2-1/4 SOCKET BUTTON HD.
3
6702
WASHER 5/16 X 11/16 X 1/16
4
7041
LOCKWASHER 5/16
5
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
8
8329
SCREW BUTTON, TORX
9
10065
CABLE STRAP
10
40901-05
ISOLATOR RUBBER
11
68331-02
RING AUXILIARY LAMP
12
68414-05A
LAMP AUXILIARY, W/ 68000056 (DOMESTIC)
13
68000056
BULB (HDI)
14
68725-62A
BEZEL RING PASSING LAMPS
15
68821-00
STAND-OFF
16
68836-04A
BAR ASSEMBLY LEFT, W/ 69563-06 & BAR
16
68837-04A
BAR ASSEMBLY RIGHT, W/ 69563-06 & BAR
17
69326-10
TURN SIGNAL ASSEMBLY FRONT, W/ 69325-02 & 69331-02
18
69325-02
LENS TURN SIGNAL
19
69331-02
BULB TURN SIGNAL (AMBER)
20
69563-06
CLAMP BLOCK
21
69567-06
HOUSING AUXILIARY LAMP ASSEMBLY W/ 72161-06, 72298-95 & 72356-95
22
72161-06
SOCKET HOUSING 2-WAY
23
72298-95
CABLE SEAL (GREEN)
24
72356-95
TERMINAL 18-20 AWG
25
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
26
73191-96
TERMINAL SOCKET, 16-20 GAUGE
