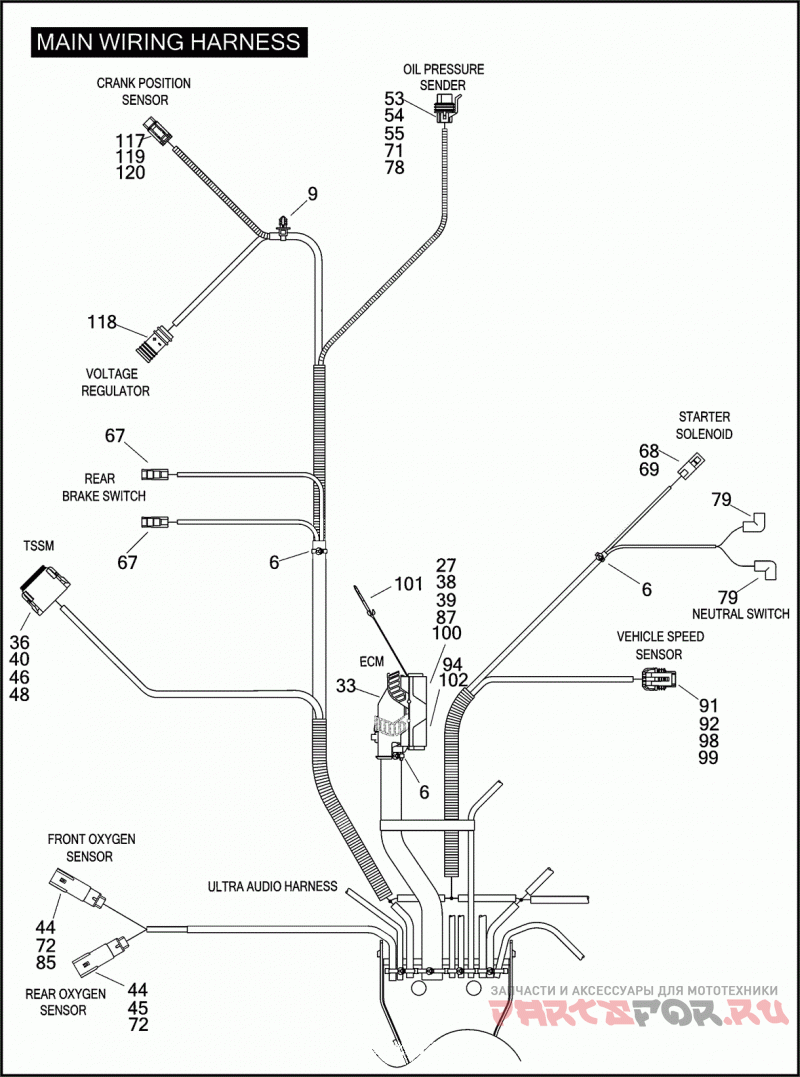

MAIN WIRING HARNESS

TERMINAL SOCKET, 20 AWG (GOLD)

SECONDARY LOCK 2-WAY (BLACK)

FUSE COVER REAR

PIN HOUSING 2-PLACE

PIN HOUSING 4-PLACE (BLACK)

PIN HOUSING 8-PLACE (BLACK)

SOCKET HOUSING 2-PLACE

SOCKET HOUSING 3-PLACE (BLACK)

TERMINAL PIN, 16-20 AWG

TERMINAL SOCKET, 16-20 AWG

CONNECTOR ANCHOR

HOUSING PIN, 2-WAY

SECONDARY LOCK FEMALE, 2-WAY

TERMINAL FEMALE, 10 AWG

SEAL WIRE 10 AWG (BLUE)

SOCKET HOUSING 2-WAY (BLACK)

DC LEAD ASSEMBLY

SOCKET LOCK SECONDARY, 2-WAY

SOCKET TERMINAL

CABLE ANTENNA

SOCKET TERMINAL 18-20 AWG

HOUSING SOCKET, 10-WAY

CONNECTOR & PLUG ASSEMBLY W/O REVERSE, USED TO PLUG REVERSE CONTROL MODULE CONNECTION (NOT SHOWN) NOTE: PLUG IS SOLD SEPARATELY AND IS NOT PART OF MAIN HARNESS
