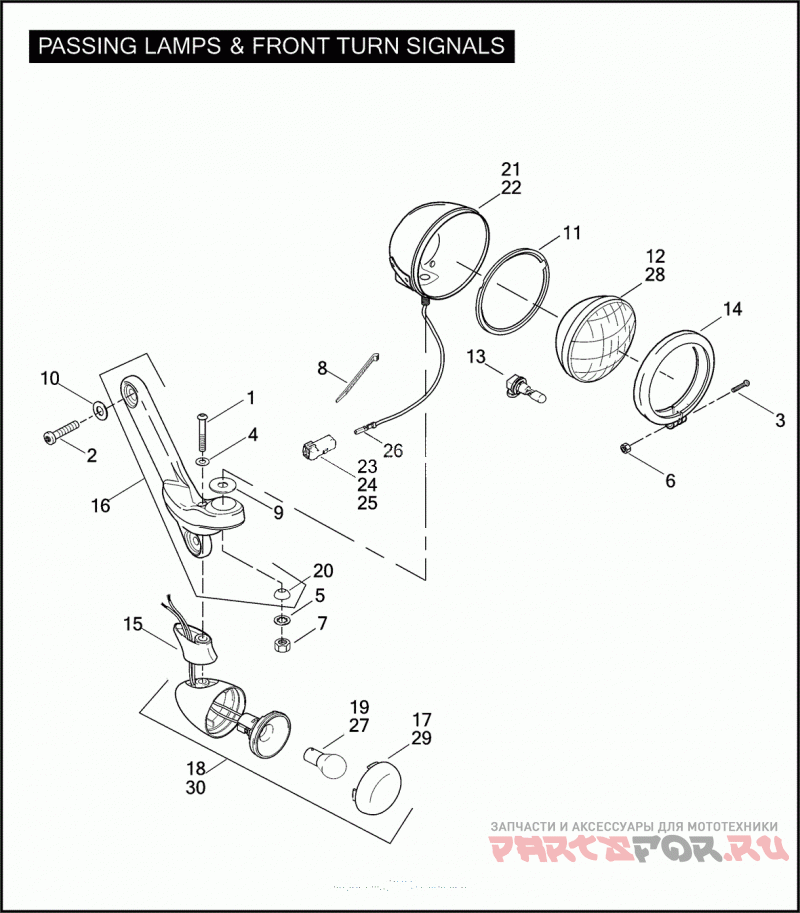

PASSING LAMPS & FRONT TURN SIGNALS

Harley Davidson FLHTCUSE5 BLK 1PR8_BLK CVO ULTRA CLASSIC BLACK (2010)

Harley Davidson
#oem кодцена
1
1333
SCREW NO. 5/16 X 2-1/4 SOCKET BUTTON HD. W/LOCK PATCH (GRADE 8) (BLACK)
2
2234
SCREW 5/16-18 X 1-1/4 TORX BUTTON HD., SELF-TAPPING (BLACK)
3
3514
SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)
4
7085
LOCKWASHER 5/16 (BLACK)
5
7130W
LOCKWASHER 3/8 INTERNAL TOOTH
6
7606
LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)
7
7667
NUT 3/8-16 X 9/32 X 9/16 NYLON INSERT
8
10065
CABLE STRAP
9
40901-05
ISOLATOR RUBBER
10
12401
WASHER (BLACK)
11
68331-02
RING AUXILIARY LAMP
12
68414-05A
LAMP AUXILIARY, W/ 68000056 (DOMESTIC)
13
68000056
BULB (HDI)
14
68725-62A
BEZEL RING PASSING LAMPS
15
73333-10
STAND-OFF
16
69481-10
BAR ASSEMBLY LEFT, W/ 69563-06 & BAR
16
69485-10
BAR ASSEMBLY RIGHT, W/ 69563-06 & BAR
17
69325-02
LENS TURN SIGNAL
18
73329-10
TURN SIGNAL ASSEMBLY FRONT, W/ 69325-02 & 69331-02 (BLACK)
19
69331-02
BULB TURN SIGNAL (AMBER)
20
69563-06
CLAMP BLOCK
21
73340-10
HOUSING AUXILIARY LAMP ASSEMBLY W/ 72161-06, 72298-95 & 72356-95 (BLACK)
22
72161-06
SOCKET HOUSING 2-WAY
23
72298-95
CABLE SEAL GREEN
24
72356-95
TERMINAL #18-20 AWG
25
73154-96BK
SOCKET HOUSING 4-PLACE (BLACK)
26
73191-96
SOCKET TERMINAL (DOMESTIC)
27
68163-84
BULB TURN SIGNAL (HDI)
28
68847-09
FOGLAMP BULB W/ 68453-05 (HDI)
29
68973-00
LENS (HDI)
30
73335-10
TURN SIGNAL ASSEMBLY FRONT (AMBER), W/ 68163-84 & 68973-00 (BLACK) (HDI)
