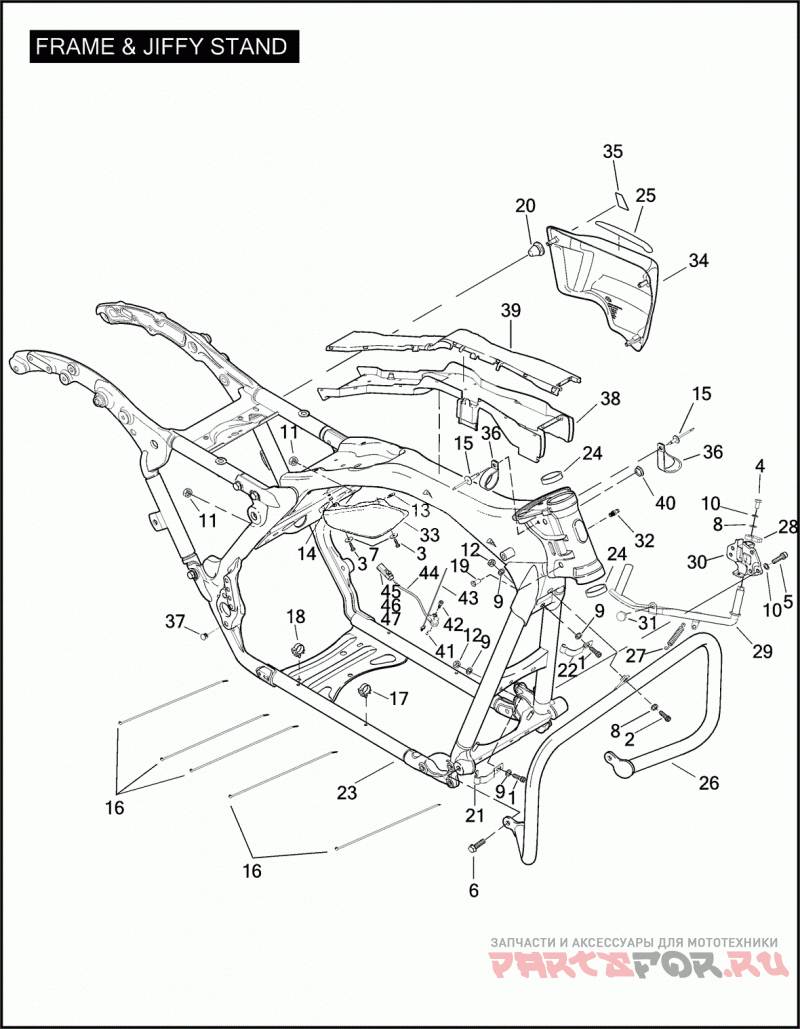

FRAME & JIFFY STAND

Harley Davidson FLHTCUSE5 BLK 1PR8_BLK CVO ULTRA CLASSIC BLACK (2010)

Harley Davidson
#oem кодцена
1
1001
SCREW 1/4-20 X 5/8 TORX BUTTON HD., SELF-TAPPING (GRADE 8)
2
2708A
SCREW 5/16-18 X 1 SOCKET HD.
3
3787
BOLT 1/4-20 X 3/4 HEX HD. (GRADE 5)
4
3987
BOLT 5/16-18 X 3/4 HEX HD. (GRADE 5)
5
4688
SCREW 3/8-16 X 1-1/4 SEMS HEX SOCKET HD., W/ LOCK PATCH
6
2238
SCREW 3/8-16 X 7/8 TORX BUTTON HD. (GRADE 5) (BLACK)
7
6036
WASHER 17/64 X 1 X 1/16
8
6116
WASHER 5/16 X 16/16 X 1/8
9
6703
WASHER 1/4 X 5/8 X 1/16
10
7041
LOCKWASHER 5/16
11
7495
NUT M6 FLANGE
12
7688
NUT 1/4-20 X 7/32 X 7/16 (GRADE 2)
13
8108
SPEEDNUT 1/4-20
14
8194
NUT SPECIAL
15
8483A
RIVET BLIND
16
10039
CABLE STRAP
17
10336
CLIP CONDUIT, ROSEBUD MOUNT
18
10394
CLIP CONDUIT, ROSEBUD MOUNT
19
11663
RIVNUT FLATHEAD
20
11650
GROMMET SIDE COVER
21
38938-09
RETAINER CLUTCH LINE, LOWER
22
38969-10
RETAINER CLUTCH LINE, UPPER
23
47900-11BHP
FRAME main, w/ 48315-60 & 50972-75
24
48315-60
BEARING CUP
25
48419-04
WEAR PAD SIDE COVER, RIGHT (CLEAR)
25
48420-04
WEAR PAD SIDE COVER, LEFT (CLEAR)
26
49050-09A
ENGINE GUARD WITH 2708A, 6116 AND LABEL (BLACK)
27
49725-07A
SPRING JIFFY STAND
28
50015-74A
LEG STOP
29
50075-07A
LEG JIFFY STAND
30
50096-09
BRACKET JIFFY STAND LEG
31
50245-07
BUMPER JIFFY STAND LEG
32
83459-09
FITTING lubrication
33
58167-09A
DEFLECTOR AIR (RIGHT)
33
58169-09
DEFLECTOR AIR, LEFT
34
66048-09A
SIDE COVER RIGHT (UNPAINTED)
34
66250-09
SIDE COVER LEFT (UNPAINTED)
34
66612-10DEE
SIDE COVER LEFT (CRIMSON MIST BLACK/DARK SLATE), W/ 48420-04 & 66055-09
34
66613-10DEE
SIDE COVER RIGHT (CRIMSON MIST BLACK/DARK SLATE), W/ 48419-04 & 66055-09
35
66055-09
WEAR PAD SIDE COVER (CLEAR)
36
69318-02
Зажим
37
68446-00
PLUG (CHROME)
38
70980-09
TRAY WIRE TROUGH (MAIN HARNESS)
39
70981-09
COVER WIRE TROUGH, W/ 15368-01A (MAIN HARNESS)
40
90469-94
Заглушка
41
90520-07
HOLE PLUG JIFFY STAND
42
3594
SCREW 1/4-20 X 5/8 KNURLED HD. (GRADE 8)
43
10177
CABLE STRAP TREE MOUNT, JIFFY STAND (ENGLAND, HDI)
44
50126-08A
SENSOR JIFFY STAND, W/ 72169-07, 72511-07BK & 73213-07 (ENGLAND, HDI)
45
72169-07
TERMINAL PIN, 16-20 AWG (ENGLAND, HDI)
46
72511-07BK
HOUSING PIN, 3-WAY (BLACK) (ENGLAND, HDI)
47
73213-07
RETAINER XMAS TREE CLIP (ENGLAND, HDI)
