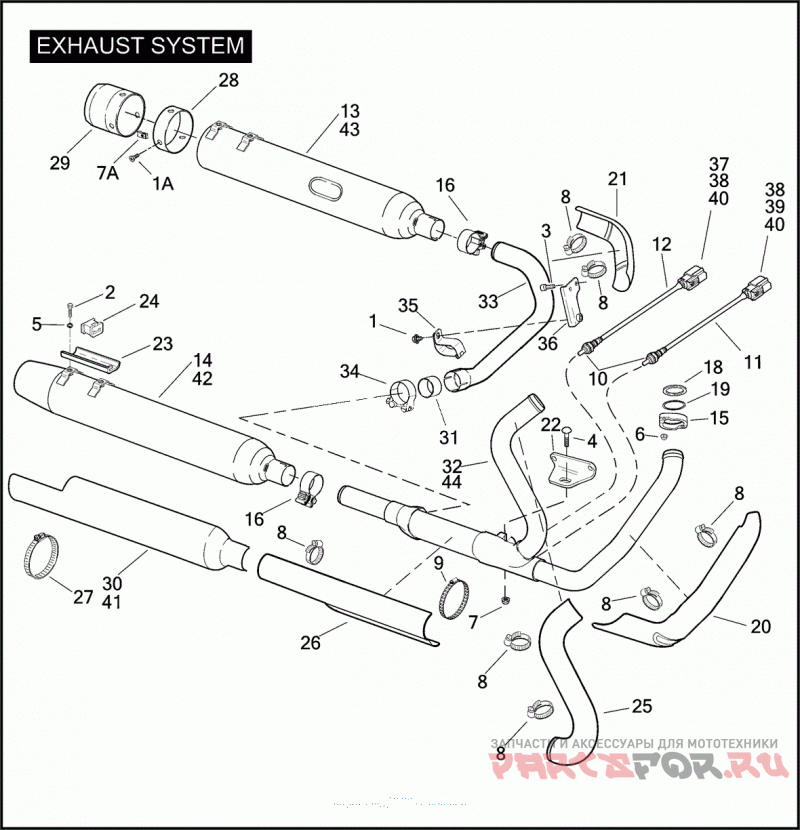

Глушитель

Harley Davidson FLHTCUSE5 BLK 1PR8_BLK CVO ULTRA CLASSIC BLACK (2010)

Harley Davidson
#oem кодцена
1A
10200384
SCREW 1/4-20 X 1/2 HEX SOCKET HD. (STAINLESS)
1
3576
SCREW 5/16-18 X 1/2 HEX HD., W/WASHER.
2
3929
SCREW 5/16-18 X 1/2 HEX HD.
3
4705
SCREW 1/4-20 X 11/16 SEMS SOCKET HD., W/LOCKPATCH
4
5416
BOLT 3/8-16 X 1/8 CARRIAGE (GRADE 5)
5
7041
LOCKWASHER 5/16
6
7593
NUT 5/16-24 FLANGE
7
7601
LOCKNUT 3/8-16 FLANGE
7A
8146
хомут
8
9955
CLAMP WORM DRIVE #24
9
9956
CLAMP WORM DRIVE #40
10
11936
GASKET OXYGEN (O2) SENSOR
11
27729-10
SENSOR OXYGEN (O2), FRONT, W/ 11936, 72344-10, 72444-07GY & 73307-10
12
27809-10
SENSOR OXYGEN (O2), REAR, W/ 11936, 72177-07BK, 72344-10 & 73307-10
13
64768-09A
MUFFLER (LEFT) (CHROME) (HDI)
14
64769-09A
MUFFLER (RIGHT) (CHROME) (HDI)
15
65184-02
FLANGE EXHAUST MANIFOLD
16
65296-95A
MUFFLER CLAMP
18
65324-83B
GASKET EXHAUST PORT
19
65325-83A
RETAINING RING EXHAUST GASKET
20
65634-09
SHIELD RIGHT EXHAUST PIPE, FRONT
21
65636-09
SHIELD LEFT EXHAUST PIPE, REAR
22
65678-09
BRACKET REAR EXHAUST MOUNT
23
65723-85
MOUNTING BRACKET
24
65724-85A
MOUNT RUBBER
25
65951-09
HEAT SHIELD ASSEMBLY REAR EXHAUST PIPE
26
65952-09
HEAT SHIELD ASSEMBLY EXHAUST PIPE, RIGHT REAR LOWER
27
66047-05
CLAMP WORM
28
66078-06
RING RETENTION
29
66079-06
END CAP
30
66219-06
HEAT SHIELD MUFFLER, RIGHT (DOMESTIC, CANADA, CALIFORNIA)
30
66220-06
HEAT SHIELD MUFFLER, LEFT (DOMESTIC, CANADA, CALIFORNIA)
31
66813-09
GASKET CLAMP
32
66855-10A
EXHAUST PIPE ASSEMBLY CATALYTIC (DOMESTIC, CANADA, CALIFORNIA) (CHROME)
33
66858-09
CROSSOVER PIPE ASSEMBLY (CHROME)
34
66859-09
CLAMP EXHAUST
35
66861-09A
CLAMP EXHAUST PIPE, HINGED
36
66881-09
BRACKET EXHAUST PIPE HANGER
37
72177-07BK
HOUSING 4-WAY, SOCKET (BLACK)
38
72344-10
TERMINAL SOCKET, 22 AWG (GOLD)
39
72444-07GY
HOUSING 4-WAY, SOCKET (GRAY)
40
73307-10
TERMINAL SOCKET, 22 AWG
41
65742-05
HEAT SHIELD MUFFLER, RIGHT (HDI, JAPAN)
41
65743-05
HEAT SHIELD MUFFLER, LEFT (HDI, JAPAN)
42
65748-09
MUFFLER ASSEMBLY RIGHT (CHROME) (JAPAN)
42
65863-09
MUFFLER ASSEMBLY RIGHT (CHROME) (HDI)
43
65949-09
MUFFLER ASSEMBLY LEFT (CHROME) (HDI, JAPAN)
44
66849-10
EXHAUST PIPE ASSEMBLY CATALYTIC (CHROME) (HDI)
44
66855-10A
EXHAUST PIPE ASSEMBLY CATALYTIC (CHROME) (JAPAN)
