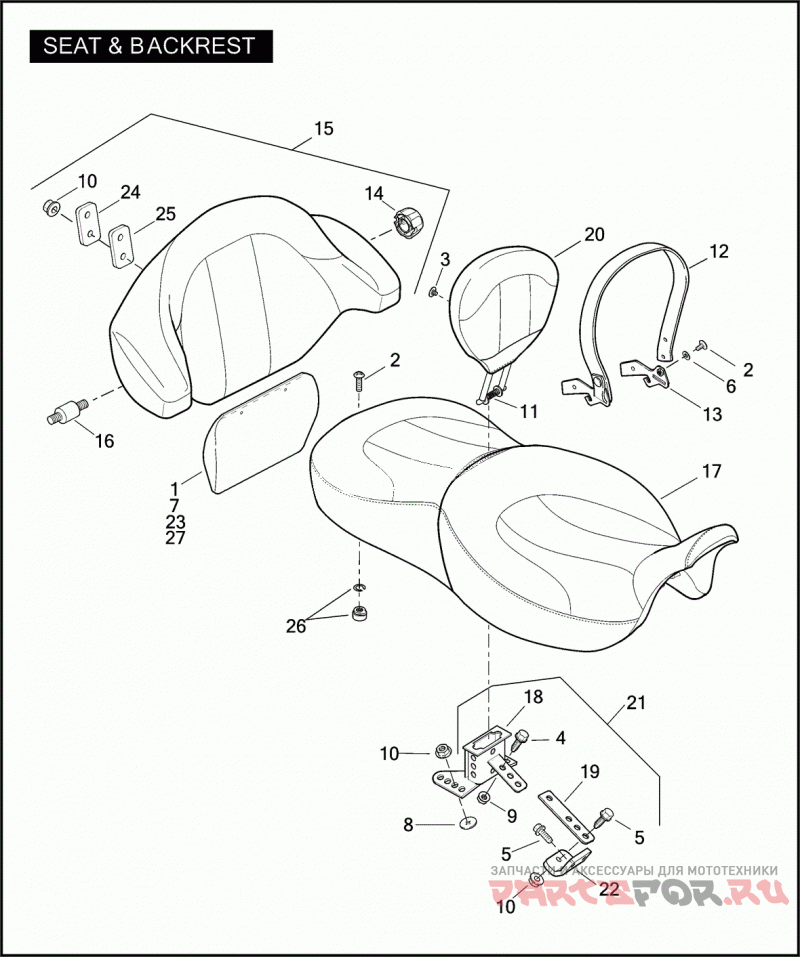

SEAT & BACKREST

Harley Davidson FLHTCUSE5 1PR8 CVO ULTRA CLASSIC (2010)

Harley Davidson
#oem кодцена
1
2724
SCREW NO. 10-16 X 1/2 (GRADE 2) (CHROME)
2
2952A
SCREW 1/4-20 X 1/2 SEMS TRUSS HD.
3
3540
SCREW 5/16-18 X 5/8 SOCKET BUTTON HD.
4
3546
BOLT 5/16-18 X 5/8 HEX FLANGE HD., W/LOCKPATCH
5
3574
SCREW 1/4-20 X 3/4 FLANGE
6
6703
WASHER 1/4 X 5/8 X 1/16
7
6716
WASHER NO. 10 X 1/2 X 3/64
8
7434
WASHER 1/4 X 1-29/64 X 1/16 NYLON
9
7531
LOCKNUT 5/16-18 X 9/32 X 1/2 FLANGE
10
7716
LOCKNUT 1/4-20 X 7/16 FLANGE
11
10406
Пружина
12
51577-09
GRAB STRAP PASSENGER
13
51690-09
BRACKET GRAB STRAP MOUNTING
14
54164-10A
KNOB PASSENGER BACKREST
15
52186-10
BACKREST KIT PASSENGER, W/ 7716, 52192-86A, 53515-86, 53517-86 & 54164-10
16
52192-86A
ISOLATOR SET PASSENGER BACKREST
17
52344-10
Седло
18
52567-93D
MOUNTING BRACKET RIDER BACKREST
19
52585-09
BRACKET BACKREST MOUNT
20
52586-10
RIDER BACKREST W/ 3540 & 10406
21
52589-09A
MOUNTING HARDWARE KIT SEAT, W/ 3546, 3574, 7531, 7716, 52567-93D, 52585-09 & 52590-09
22
52590-09
MOUNTING BRACKET RIDER BACKREST
23
53364-10
BACKREST PAD PASSENGER TOUR-PAK
24
53515-86
BACKING PLATE
25
53517-86
CUSHION PLATE PLASTIC
26
59768-97
NUT KIT SEAT, W/ RETENTION WASHER
27
90844-80
ACORN NUT NO. 10 X 3/8 FLANGE (GRADE 2)
