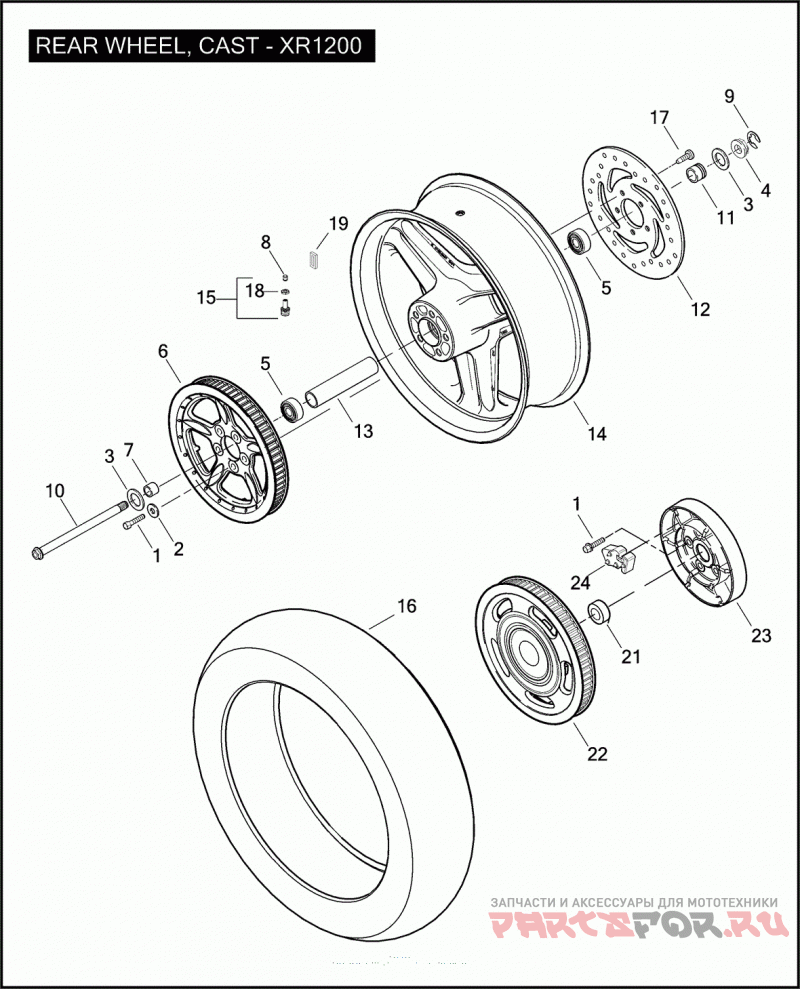

REAR WHEEL, CAST - XR1200

Harley Davidson XR1200 1LA6 XR1200 (2009)

Harley Davidson
#oem кодцена
1
3899
SCREW 7/16-14 X 1-3/4 HEX HD., W/LOCKPATCH
2
6516HW
WASHER 7/16 X 1-1/8 X 1/8
3
6551
WASHER 1 X 1-5/8 X 1/8 HARDENED
4
8190
NUT M24 X 2.0
5
9276A
Подшипник
6
40353-08
SPROCKET BELT - 86T (BLACK)
7
40930-05
SPACER WHEEL BEARING, SPROCKET SIDE
8
41123-79
VALVE CAP
9
41229-08
Стопорное кольцо
10
41627-08
AXLE ASSEMBLY
11
41730-08
SPACER DISK SIDE
12
41833-08
BRAKE DISC
13
41858-08
SLEEVE SPACER
14
43107-08
WHEEL ASSEMBLY 17 IN. (3 SPOKE) (BLACK) W/O BEARINGS & SLEEVE
15
43157-83A
VALVE STEM ASSEMBLY W/ 54321-85
16
43231-08
TIRE
17
43567-92
SCREW 3/8-16 X 1 TORX PAN HD., W/LOCKPATCH
18
54321-85
NUT NO. 8-32 X 1/2 X 1/8 (BRASS)
19
95594-84B
WEIGHT 5 grams (black)
20
3814
SCREW 7/16-14 X 1-3/4 HEX HD., W/WASHER (GRADE 8)
21
37797-09
SPACER (JAPAN)
22
37799-09
SPROCKET ASSEMBLY 68T (JAPAN)
23
40560-05
BOWL COMPENSATOR (JAPAN)
24
40561-05
ISOLATOR RUBBER (JAPAN)
