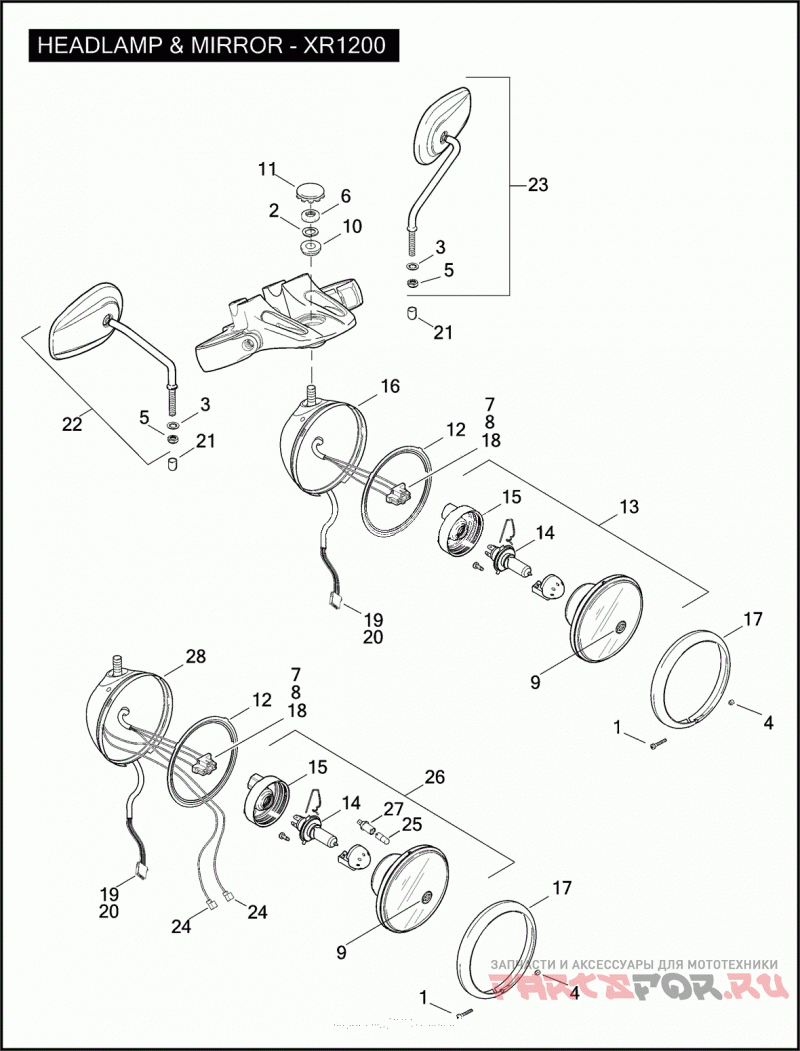

SCREW NO. 8-32 X 1 FILLISTER HD. (GRADE 5)

LOCKWASHER 1/2

LOCKWASHER 5/16 INTERNAL TOOTH

LOCKNUT NO. 8-32 X 1/4 X 1/4 HEX (CHROME)

LOCKNUT 5/16-24 X 11/32 X 1/2

NUT 1/2-13 X 7/16 X 3/4 (GRADE 2)

CONNECTOR RIGHT

CONNECTOR LEFT

MEDALLION

WASHER HEADLAMP

Заглушка

ADAPTER RING

LAMP ASSEMBLY WITH 15, 21, 22

BULB

BOOT HEADLAMP CONNECTOR

HEADLAMP SHELL ASSEMBLY 5-3/4 IN. (BLACK), W/ 9847, 9848, 72056-92, 73154-96BK, & 73191-96

BEZEL BLACK

HOUSING FEMALE

SOCKET HOUSING 4-WAY (BLACK)

SOCKET TERMINAL 16-20 AWG

CAP PROTECTIVE

MIRROR KIT RIGHT, SHORT (BLACK)

MIRROR KIT LEFT, SHORT (BLACK)

TERMINAL FLAG

BULB

LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)

LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)

SOCKET BULB (2 SPADE)

HEADLAMP SHELL ASSEMBLY 5-3/4 IN. (BLACK) (HDI, ENGLAND, JAPAN, AUSTRALIA), W/ 9847, 9848, 9898, 72056-92, 73154-96BK, & 73191-96
