FOOTRESTS - XR1200 для мотоциклов Harley Davidson XR1200 1LA6 XR1200 (2009) (2009)

Москва и регионы России

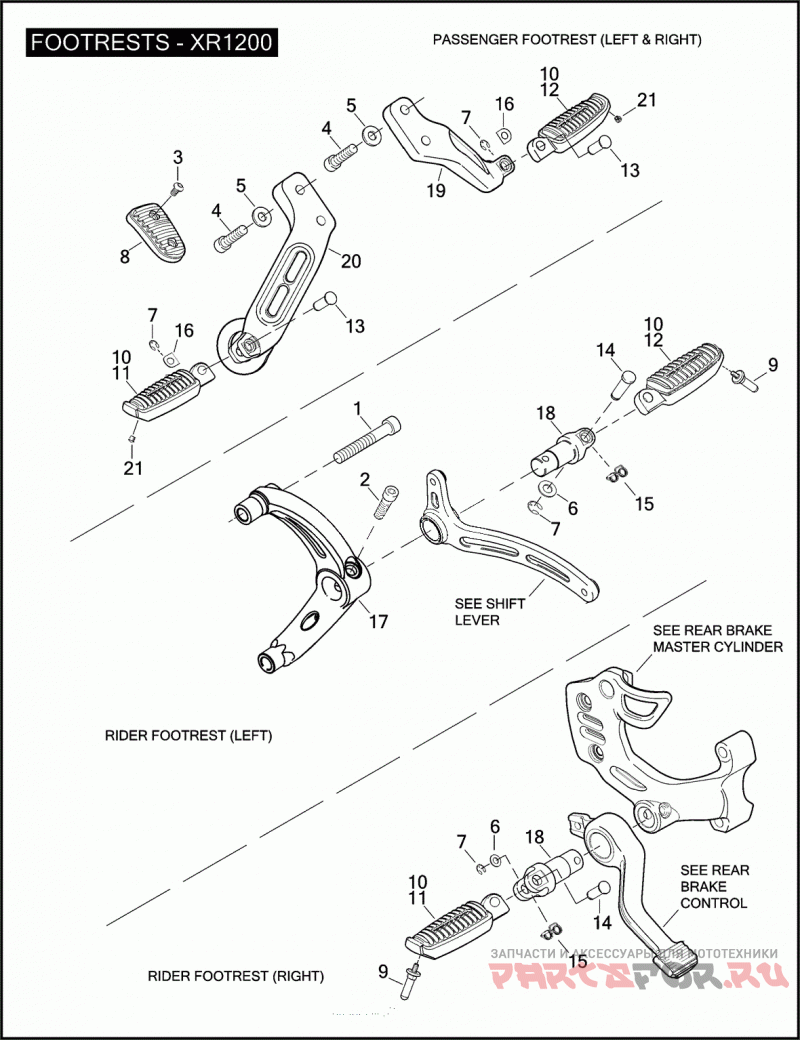

FOOTRESTS - XR1200

Harley Davidson XR1200 1LA6 XR1200 (2009)

FOOTRESTS - XR1200

#

oem код

название

цена

1

SCREW 3/8-16 X 2 KNURLED HD.

SCREW 3/8-16 X 2 KNURLED HD.

2

SCREW 5/16-18 X 1-1/4 KNURLED HD.

SCREW 5/16-18 X 1-1/4 KNURLED HD.

3

SCREW NO. 10-24 X 3/8 HEX BUTTON HD.

SCREW NO. 10-24 X 3/8 HEX BUTTON HD.

4

SCREW 3/8-16 X 1-1/2 SOCKET HD.

SCREW 3/8-16 X 1-1/2 SOCKET HD.

5

WASHER 5/16 X 13/16 X 3/32

WASHER 5/16 X 13/16 X 3/32

7

Стопорное кольцо

Стопорное кольцо

8

HEEL REST

HEEL REST

9

WEAR PEG FOOTREST

WEAR PEG FOOTREST

10

RUBBER FOOTPEG

RUBBER FOOTPEG

11

FOOTPEG ASSEMBLY RH, W/ 33133-06

FOOTPEG ASSEMBLY RH, W/ 33133-06

12

FOOTPEG ASSEMBLY LH, W/ 33133-06

FOOTPEG ASSEMBLY LH, W/ 33133-06

13

CLEVIS PIN

CLEVIS PIN

14

CLEVIS PIN

CLEVIS PIN

15

RETURN SPRING FOOTPEG

RETURN SPRING FOOTPEG

16

Пружинная шайба

Пружинная шайба

17

BRACKET RIDER SUPPORT, LH

BRACKET RIDER SUPPORT, LH

18

CLEVIS RIDER FOOTPEG

CLEVIS RIDER FOOTPEG

19

BRACKET PASSENGER SUPPORT, LH

BRACKET PASSENGER SUPPORT, LH

20

BRACKET PASSENGER SUPPORT, RH

BRACKET PASSENGER SUPPORT, RH

21

PLUG PASSENGER

PLUG PASSENGER
