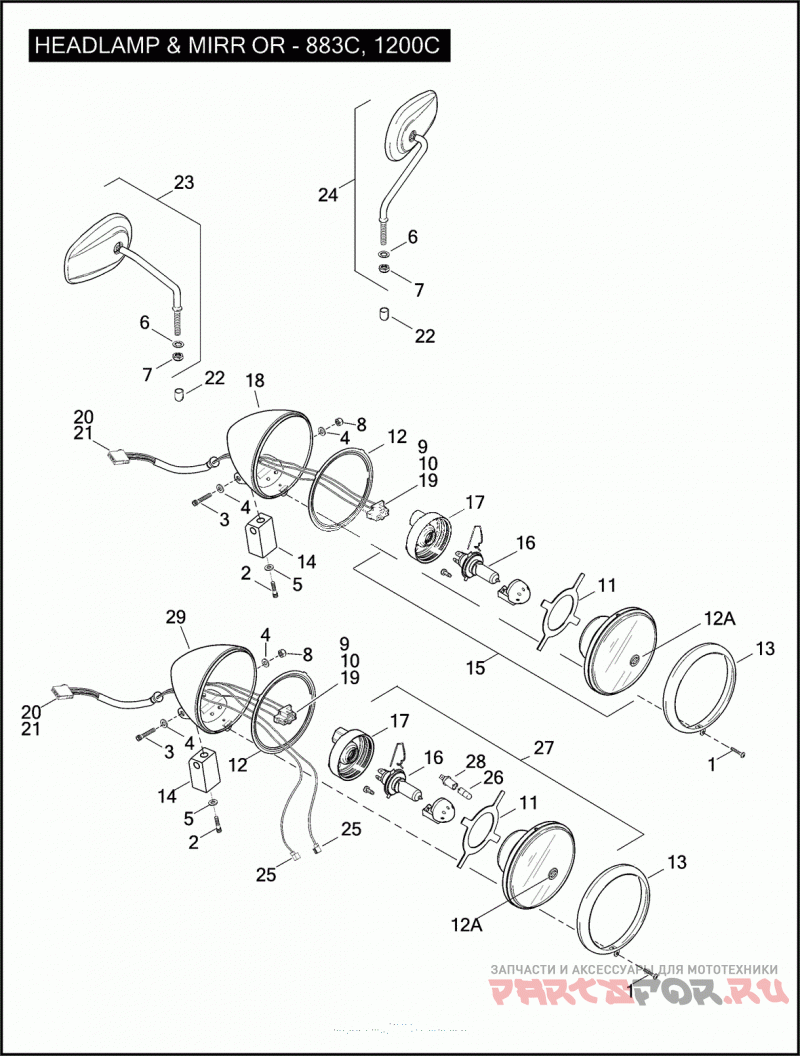

HEADLAMP & MIRROR - 883C, 1200C

Harley Davidson XL883C 4CP2 SPORTSTER 883 CUSTOM (2009)

Harley Davidson
#oem кодцена
1
3615
SCREW NO. 8-32 X 1, PAN HD., THREAD-CUTTING
2
4350A
SCREW 3/8-16 X 1-1/2 SOCKET HD.
3
4420
SCREW 3/8-16 X 2.75 HEX HD. (GRADE 5)
4
6701
WASHER 3/8 X 13/16 X 1/16
5
7045
LOCKWASHER 3/8 HIGH COLLAR
6
7127
LOCKWASHER 5/16 INTERNAL TOOTH
7
7725
LOCKNUT 5/16-24 X 11/32 X 1/2
8
7778
LOCKNUT 3/8-16 X 7/16 X 9/16
9
9847
CONNECTOR RIGHT
10
9848
CONNECTOR LEFT
11
67601-94A
GASKET HEADLAMP, THIS GASKET IS SOLD SEPARATELY AND IS NOT PART OF ITEMS 15, 26, & 27.
12
67603-94A
ADAPTER RING
12A
67667-05
MEDALLION
13
67894-93A
BEZEL ASSEMBLY
14
67742-06
MOUNT HEADLAMP
15
68297-05A
LAMP ASSEMBLY WITH 15, 21, 22
16
68329-03
BULB
17
68380-05
BOOT HEADLAMP CONNECTOR
18
69681-07B
HEADLAMP SHELL WITH 10, 11, 12, 25, 26, 27
19
72056-92
HOUSING FEMALE
20
73191-96
SOCKET TERMINAL 16-20 AWG
21
73154-96BK
SOCKET HOUSING 4-WAY (BLACK)
22
8908
CAP PROTECTIVE
23
92381-09
MIRROR KIT RIGHT, LONG (CHROME)
24
92400-09
MIRROR KIT LEFT, LONG (CHROME)
25
9898
TERMINAL FLAG
26
53436-97
BULB
27
68335-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (LEFT) (AUSTRALIA, ENGLAND, JAPAN)
27
68341-05A
LAMP ASSEMBLY WITH 14, 15, 21, 22, 23 (RIGHT) (HDI, ASIA-PACIFIC)
28
68653-05
SOCKET BULB (2 SPADE)
29
69681-07B
HEADLAMP SHELL WITH 10, 11, 12, 25, 26, 27
